Memory Positioning Switch: Diagrams



Component Connector End Views

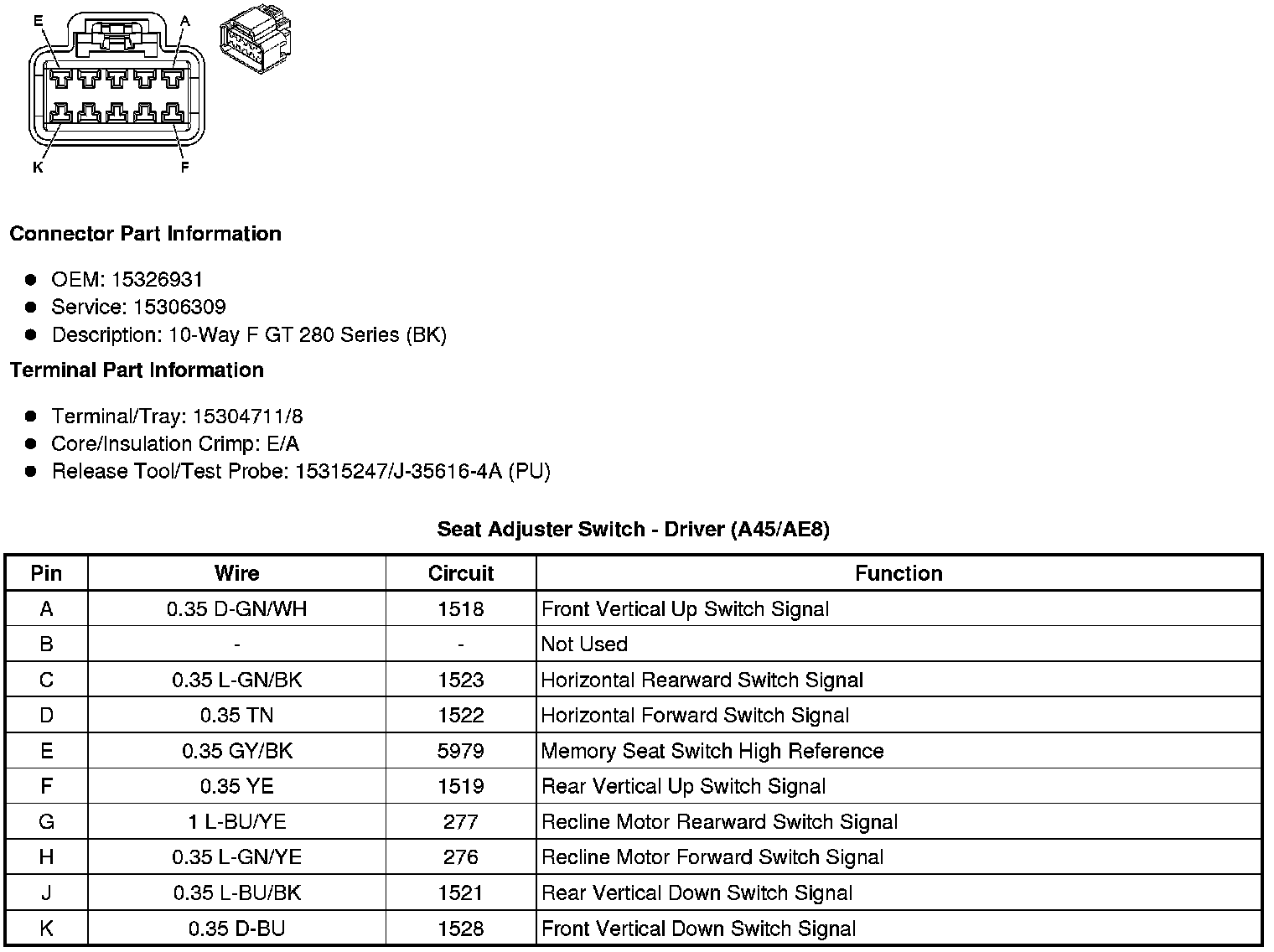

Seat Adjuster Switch - Driver (A45/AE8)

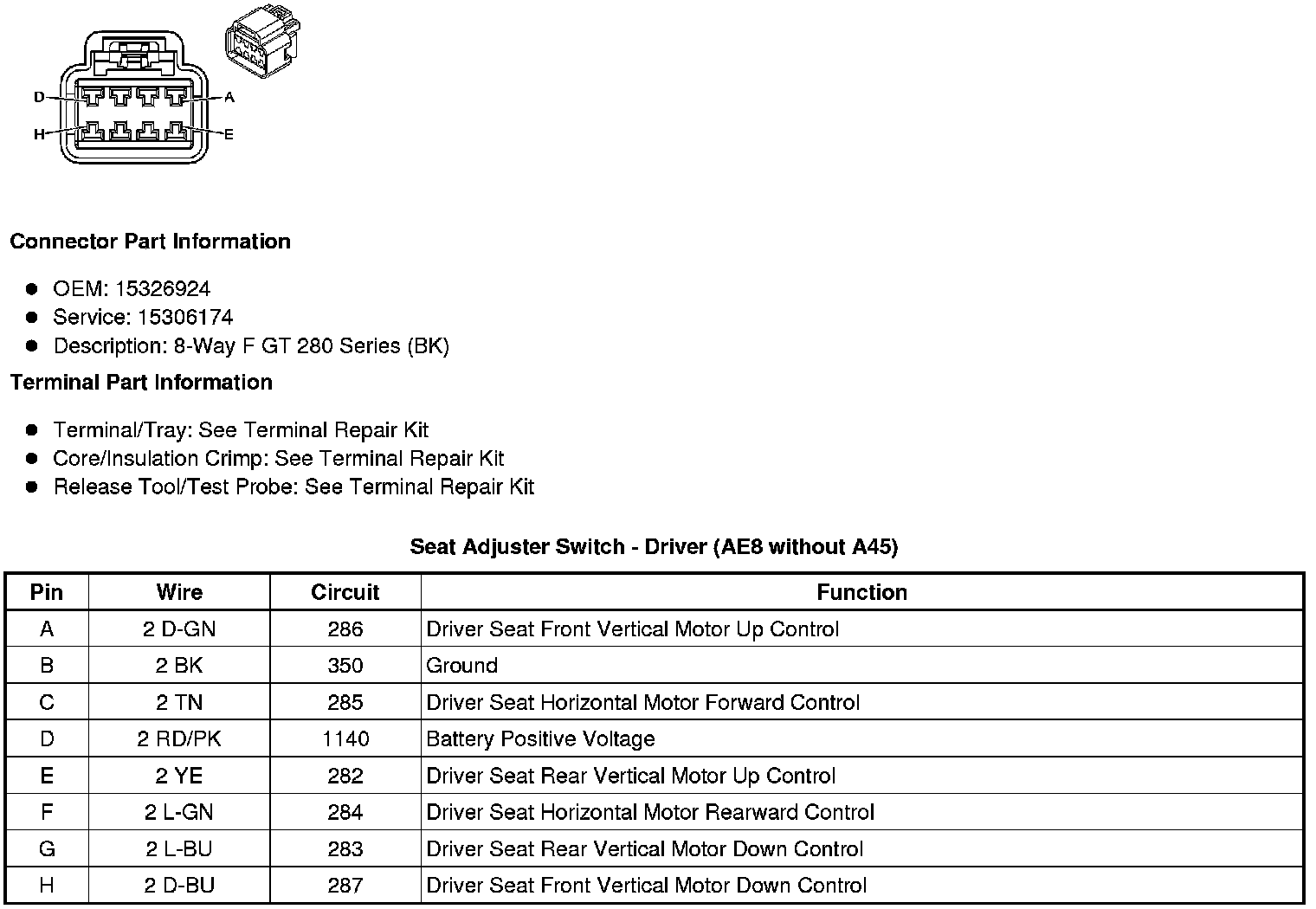

Seat Adjuster Switch - Driver (AE8 without A45)

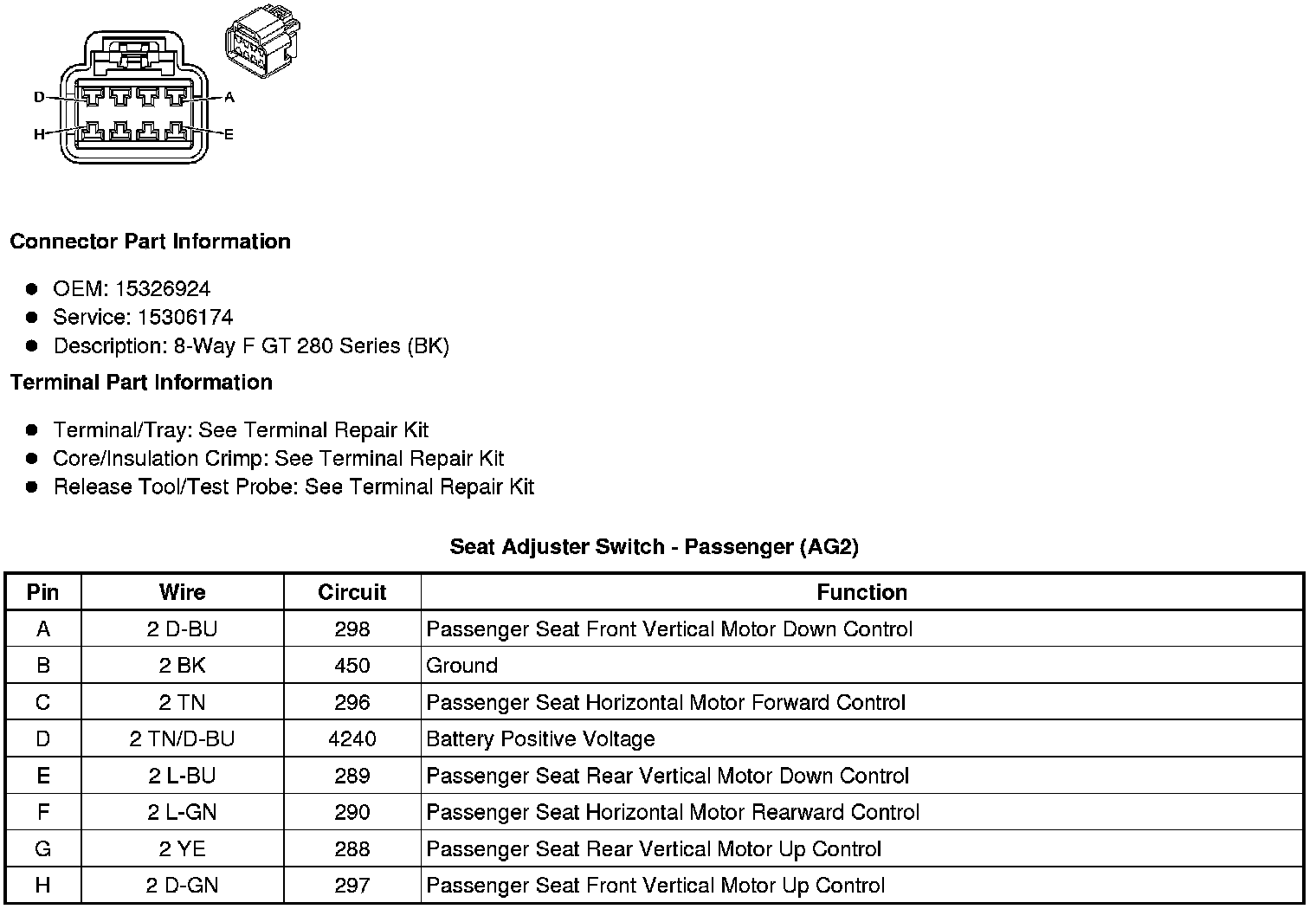

Seat Adjuster Switch - Passenger (AG2)

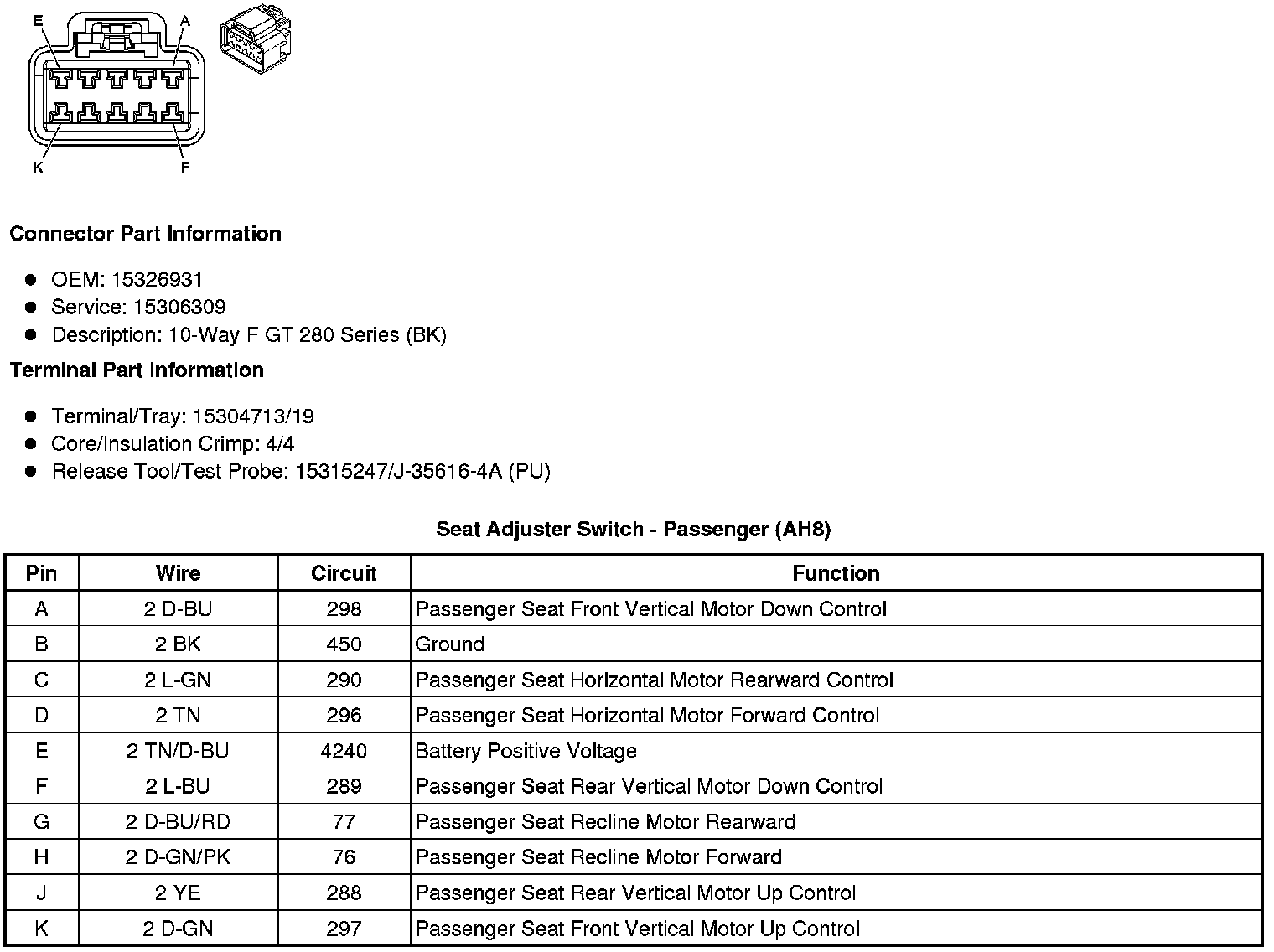

Seat Adjuster Switch - Passenger (AH8)
