Air Bag Control Module

Component Connector End Views

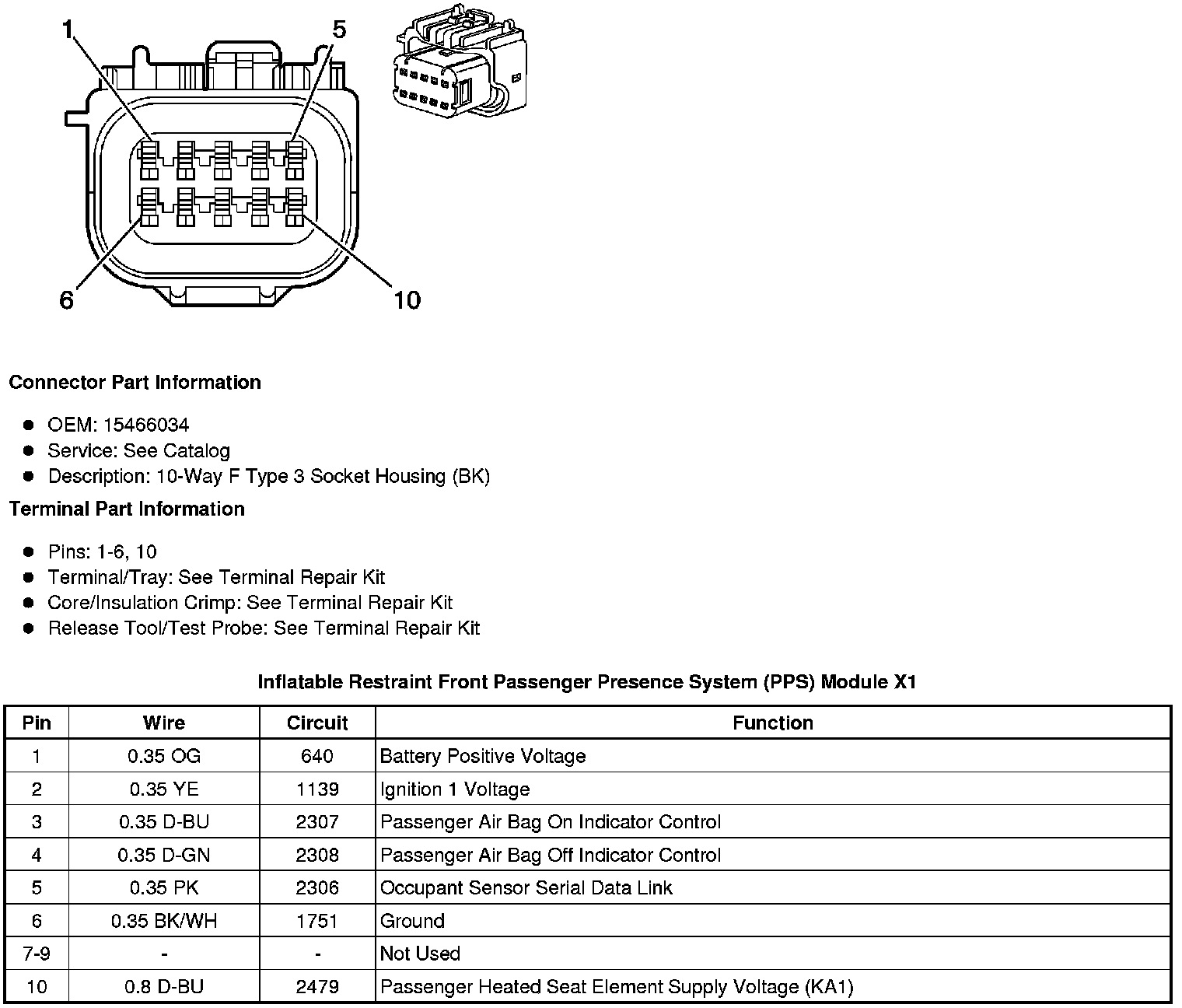

Inflatable Restraint Front Passenger Presence System (PPS) Module X1

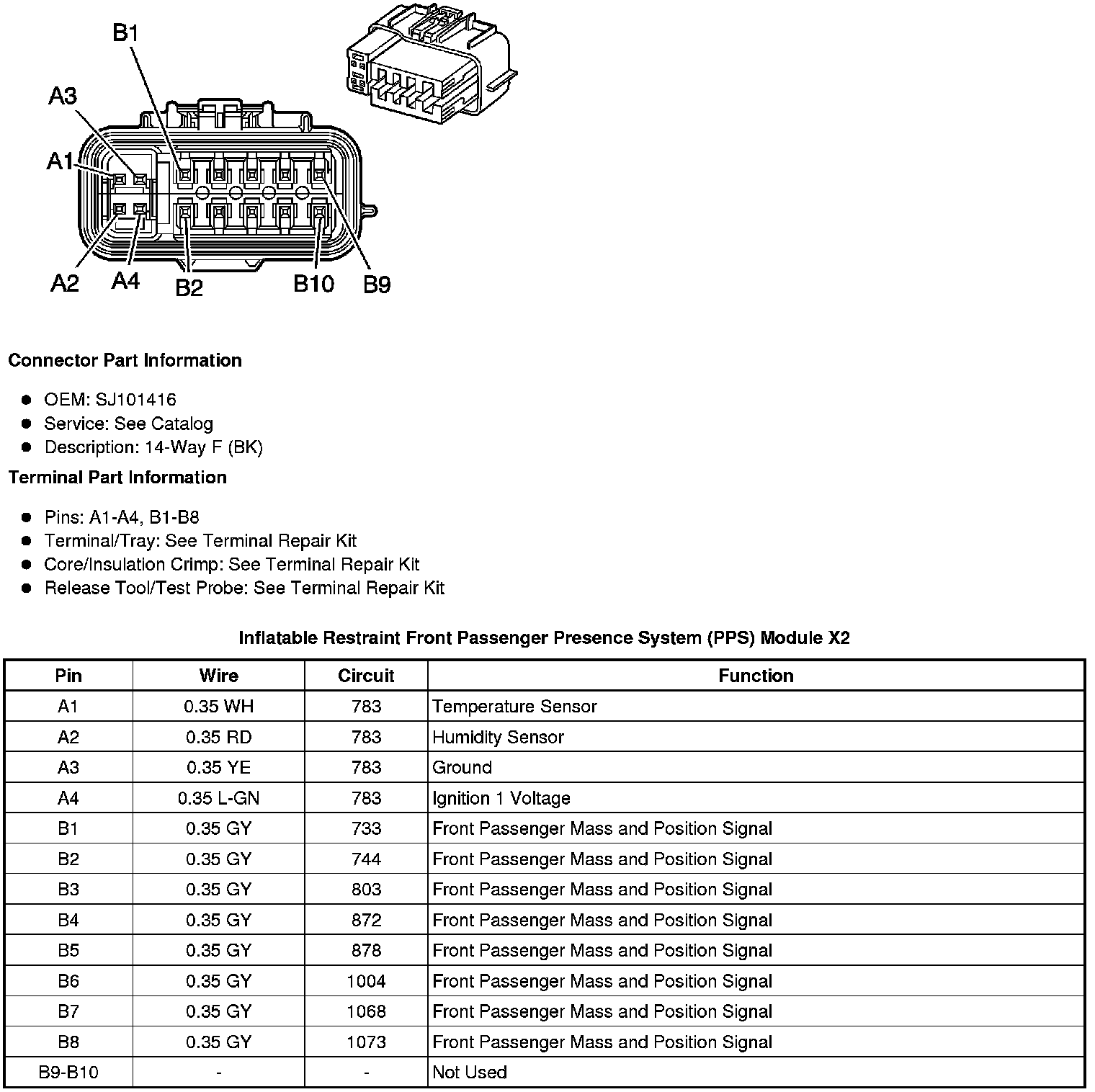

Inflatable Restraint Front Passenger Presence System (PPS) Module X2
