Fuel Tank Pressure Sensor: Locations

Wheels/Vehicle Underbody Component Views

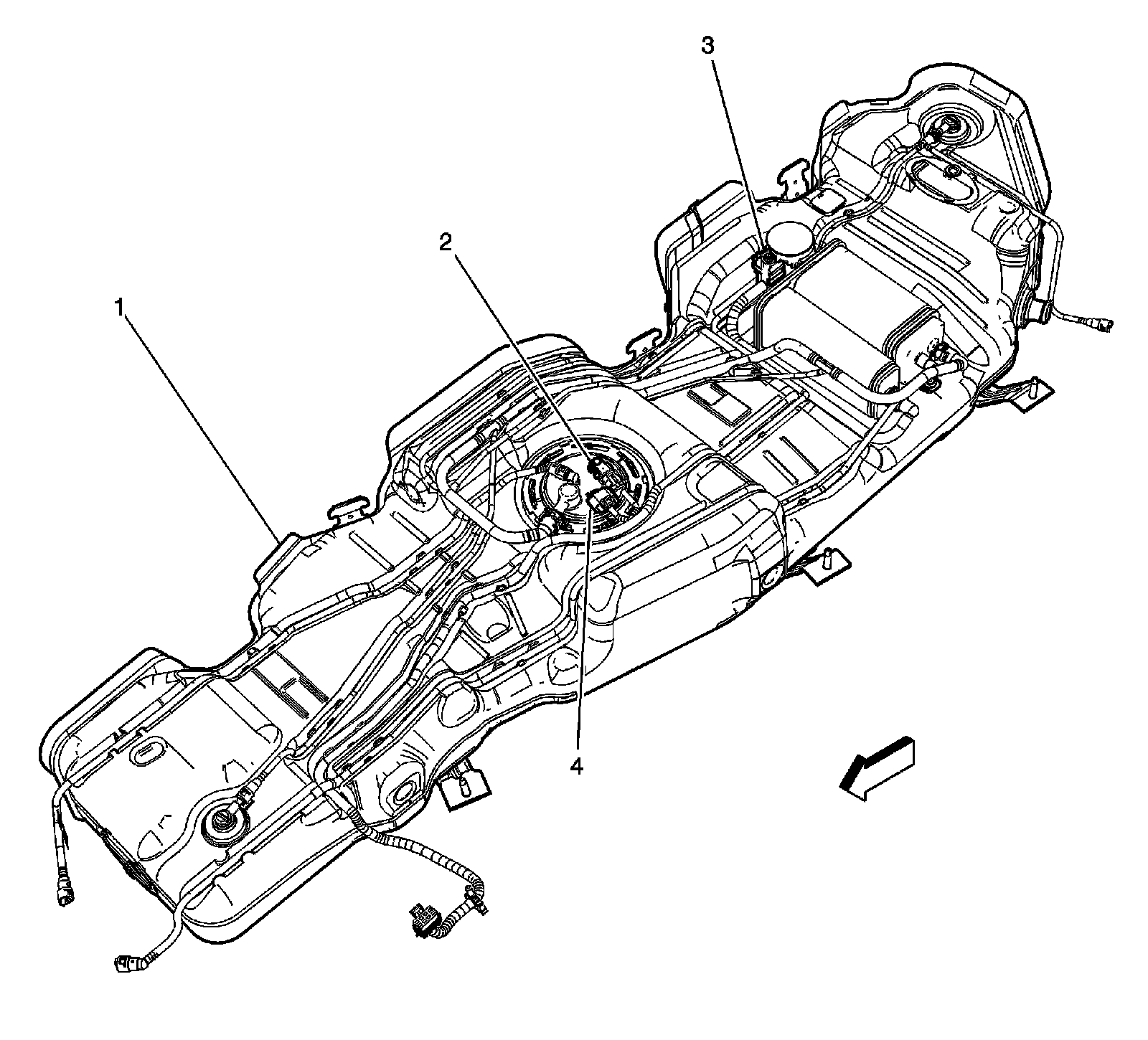

Fuel Tank Components

1 - Fuel Tank
2 - Fuel Tank Pressure (FTP) Sensor
3 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
4 - Fuel Pump and Sender Assembly
