Connector Views

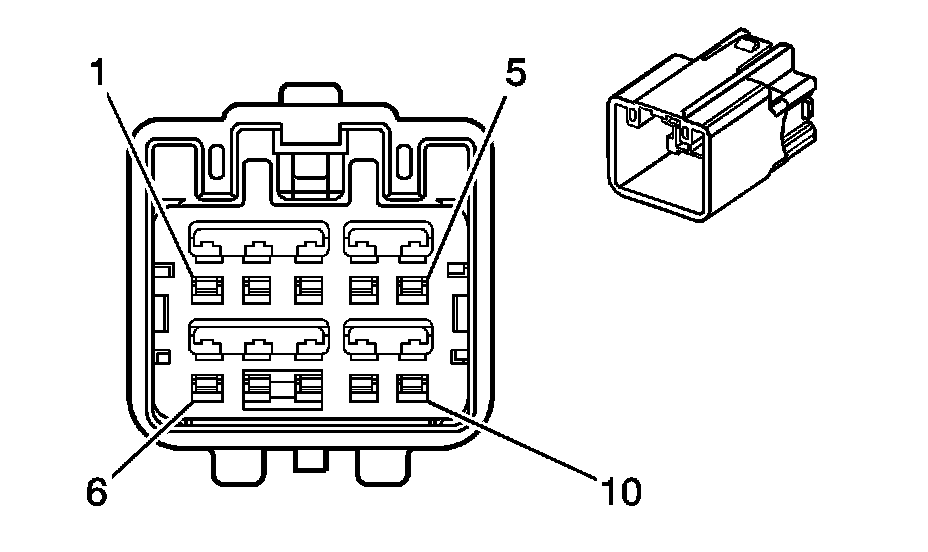

Component Connector End Views

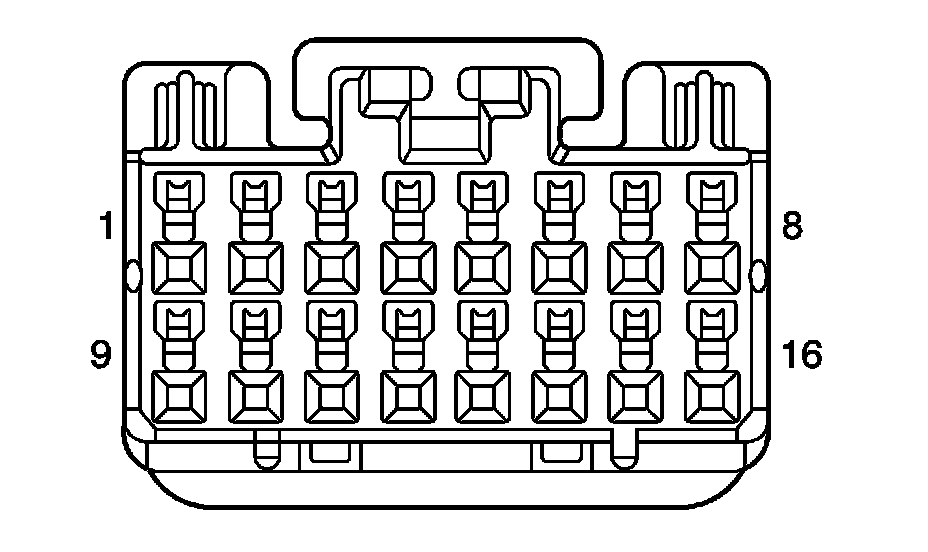

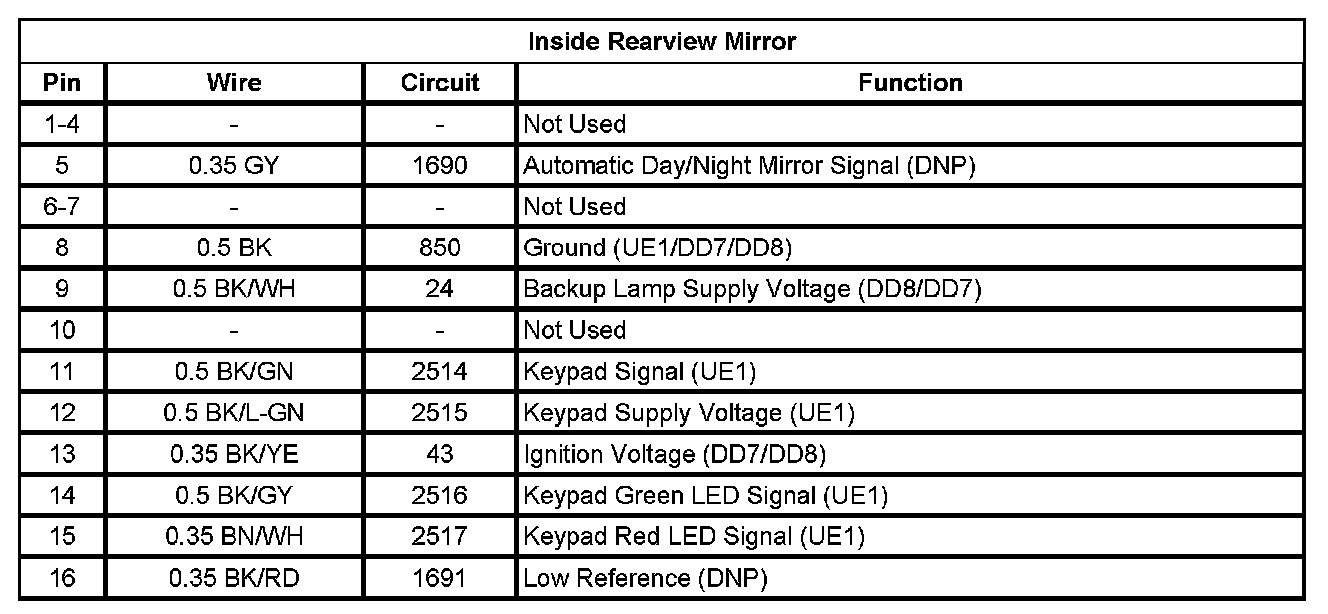

Inside Rearview Mirror

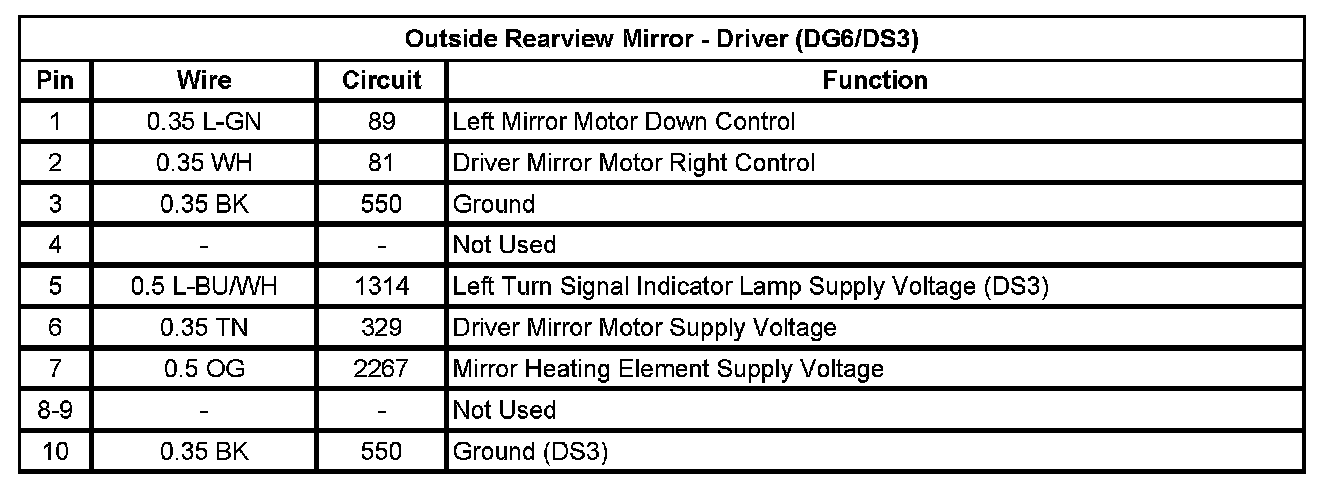

Outside Rearview Mirror - Driver (DG6/DS3)

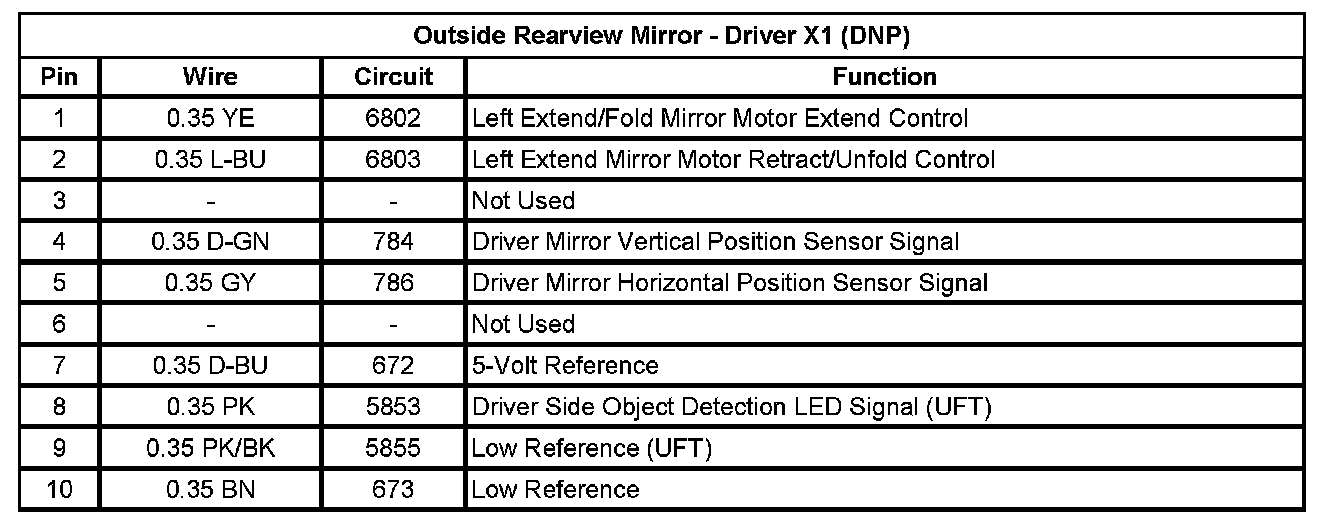

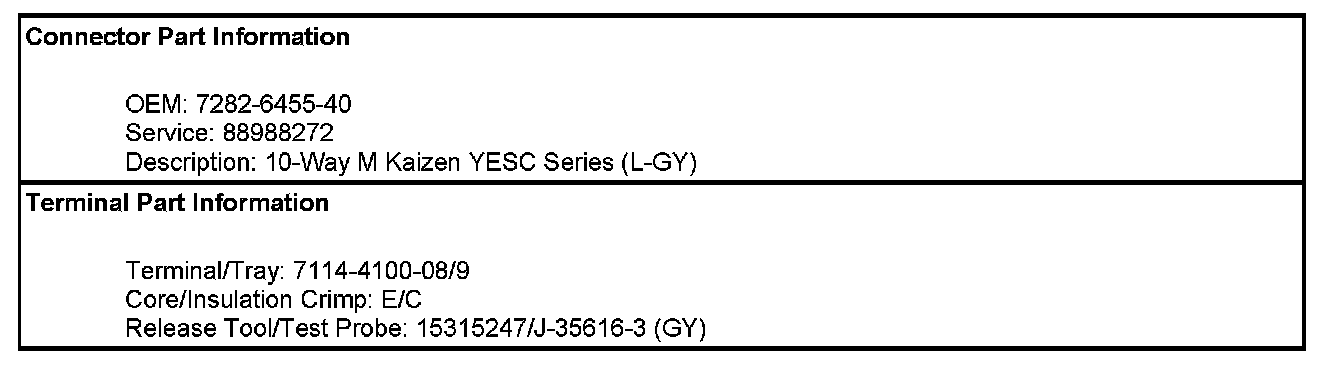

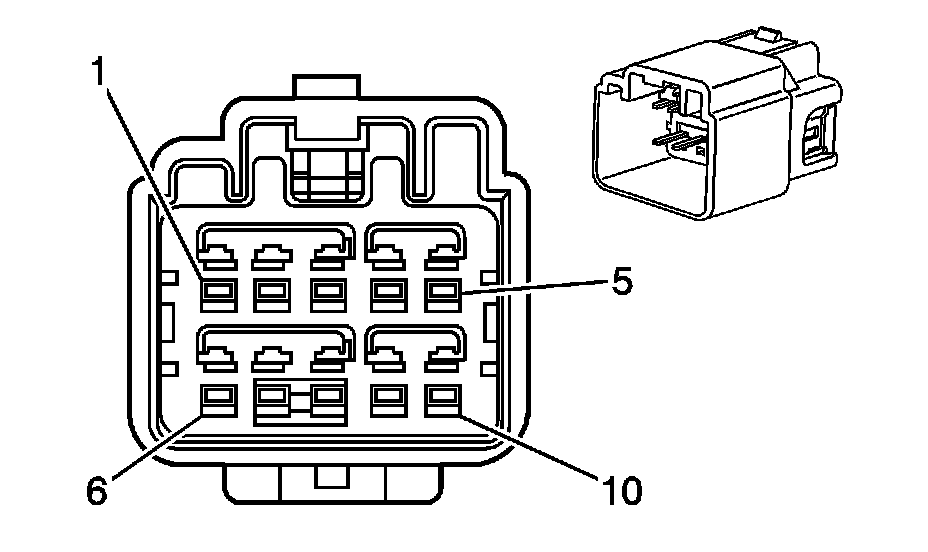

Outside Rearview Mirror - Driver X1 (DNP)

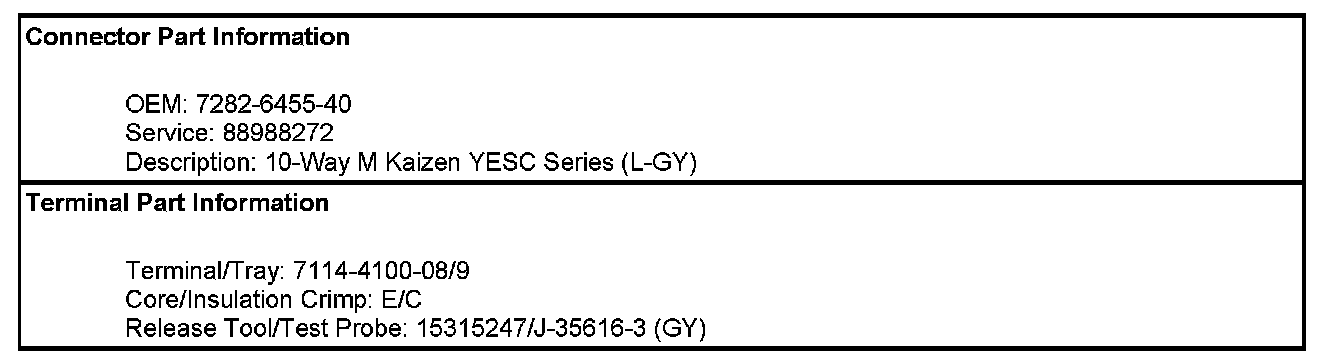

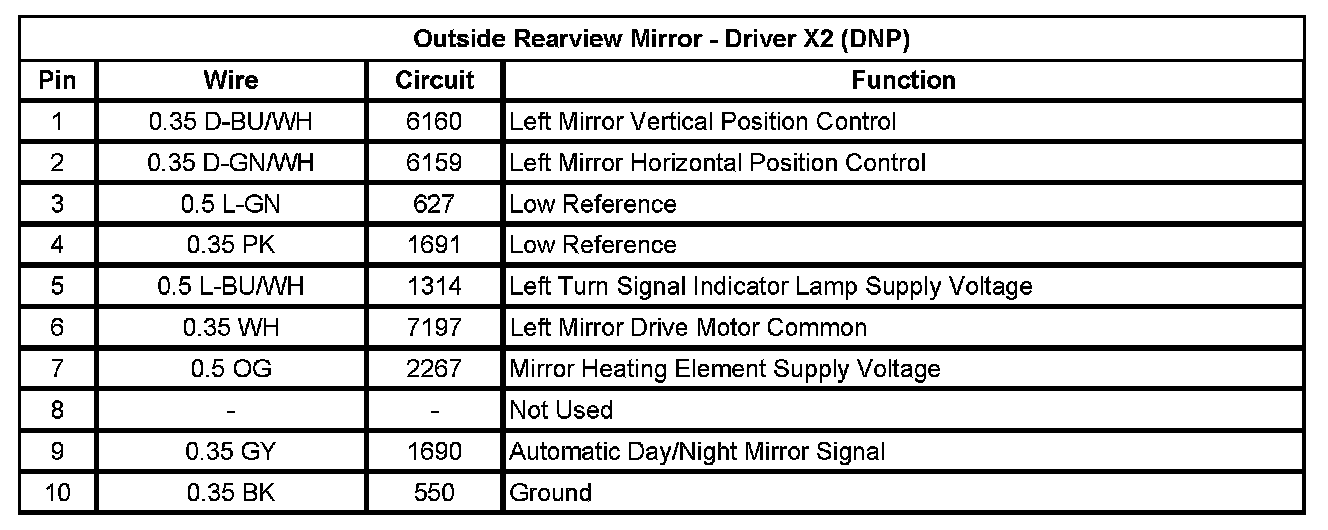

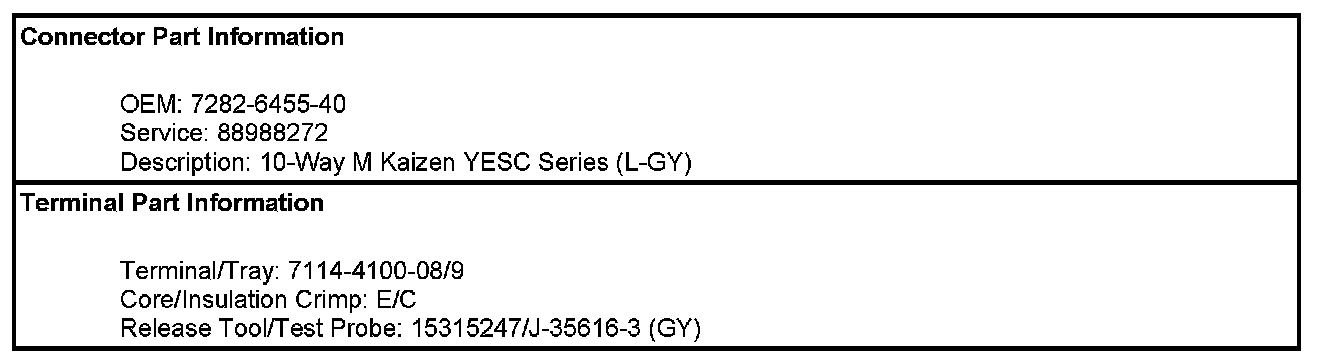

Outside Rearview Mirror - Driver X2 (DNP)

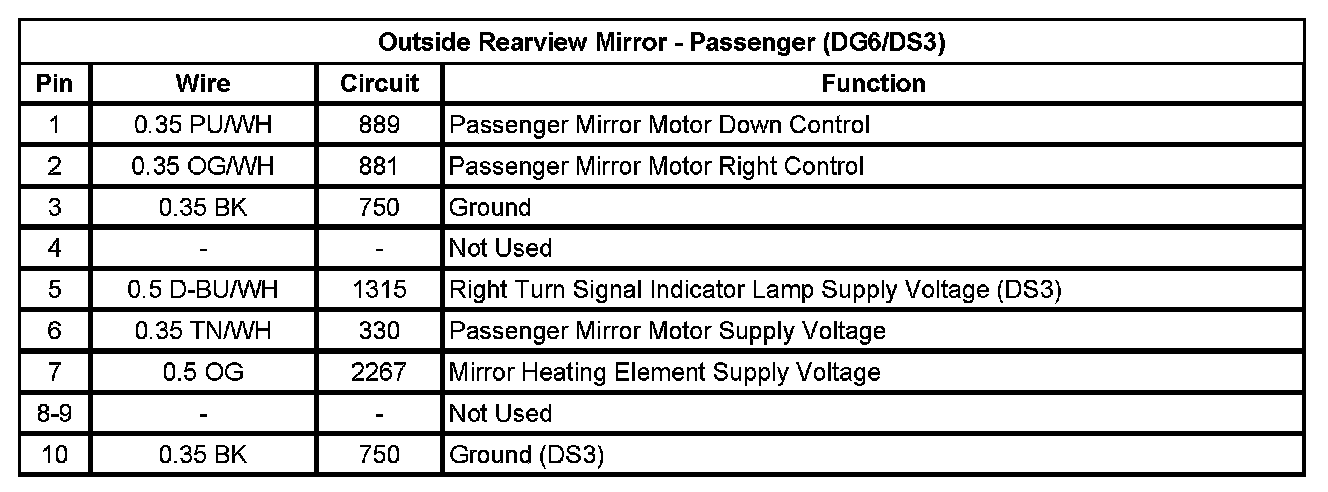

Outside Rearview Mirror - Passenger (DG6/DS3)

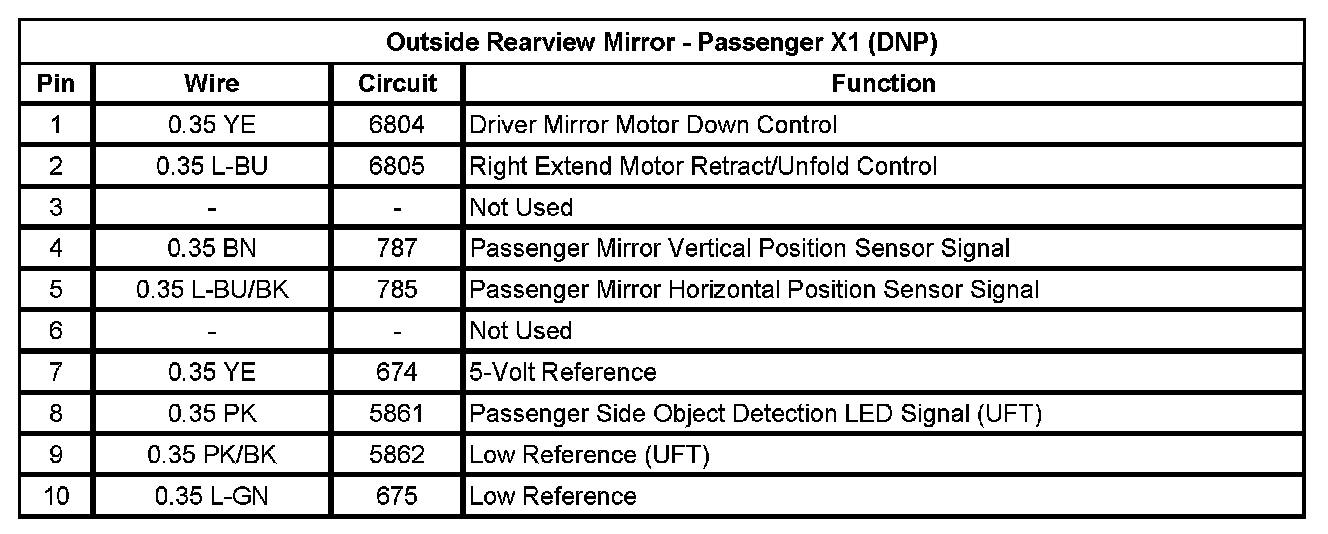

Outside Rearview Mirror - Passenger X1 (DNP)

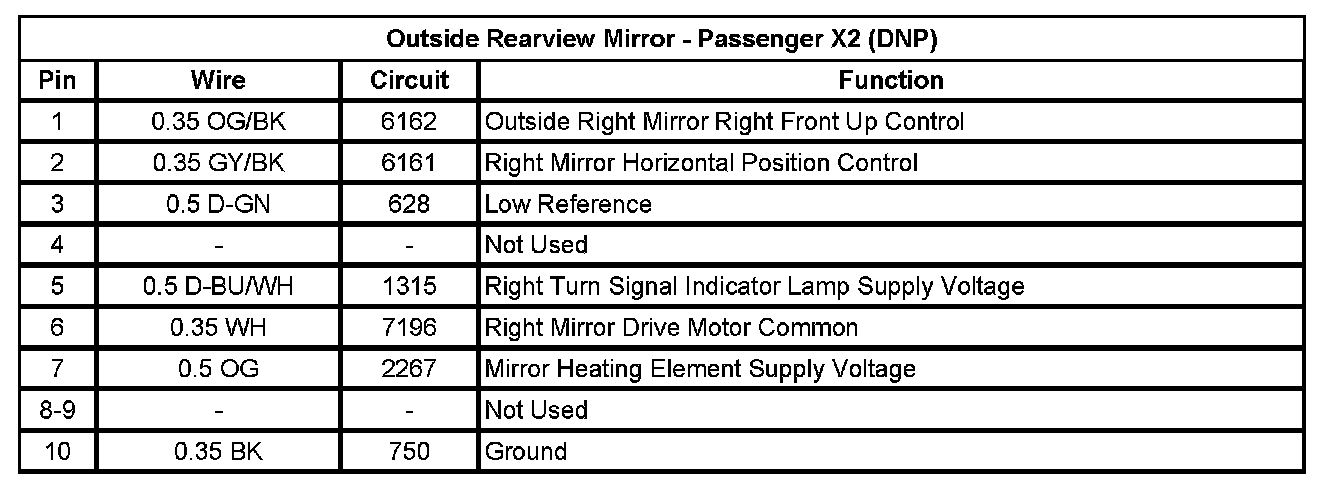

Outside Rearview Mirror - Passenger X2 (DNP)
