Door Control Module Schematics

Door Control Module Schematics

DDM Power, Ground, and all except KA1 References

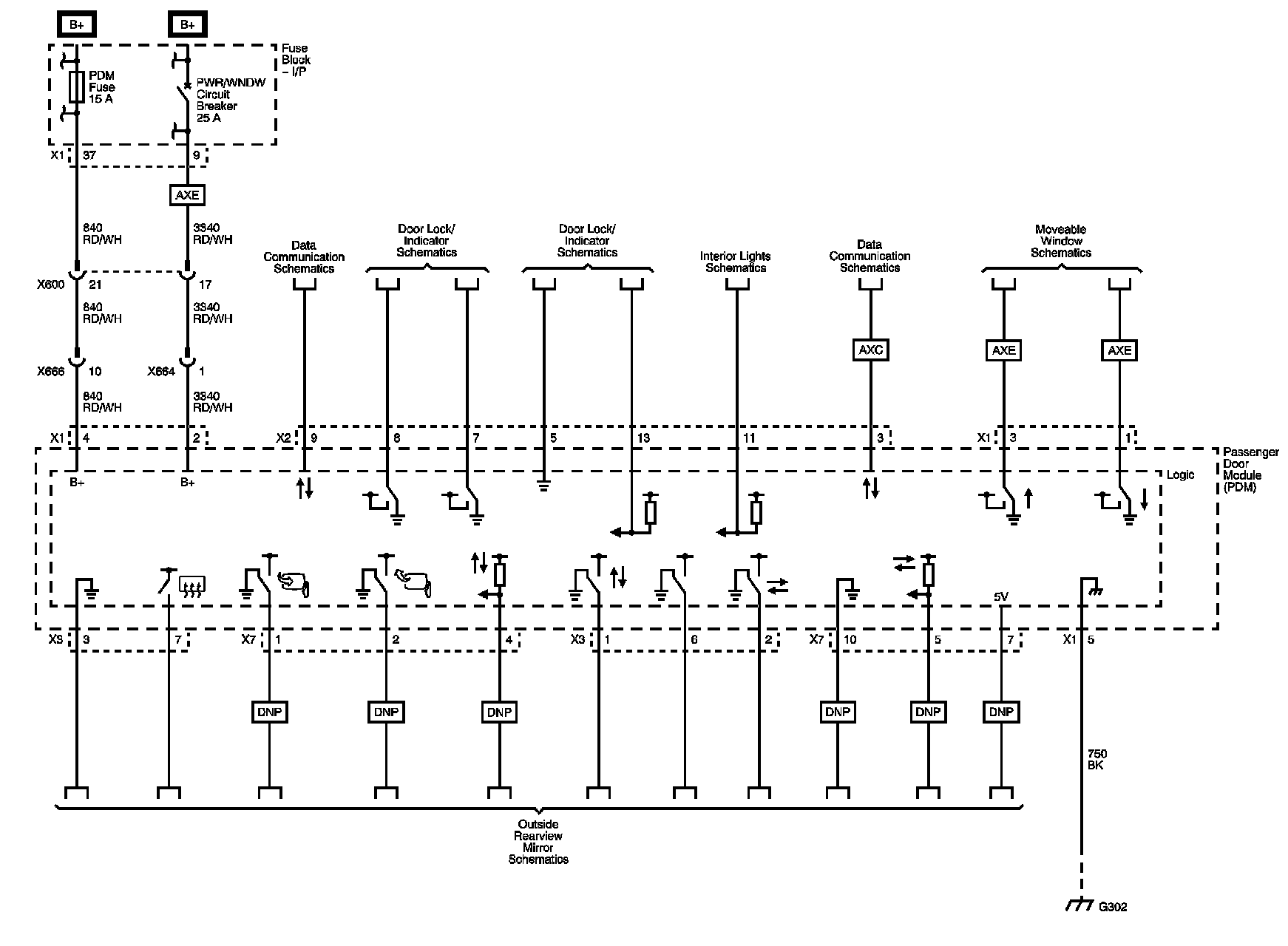

PDM Power, Ground, and all except KA1 References

KA1 References

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
