Engine Control System & Fuel System - 5.3L - Introduction (2 Of 2)
>>
Schematic and Routing Diagrams
>>
Engine Controls Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Engine Controls Schematics

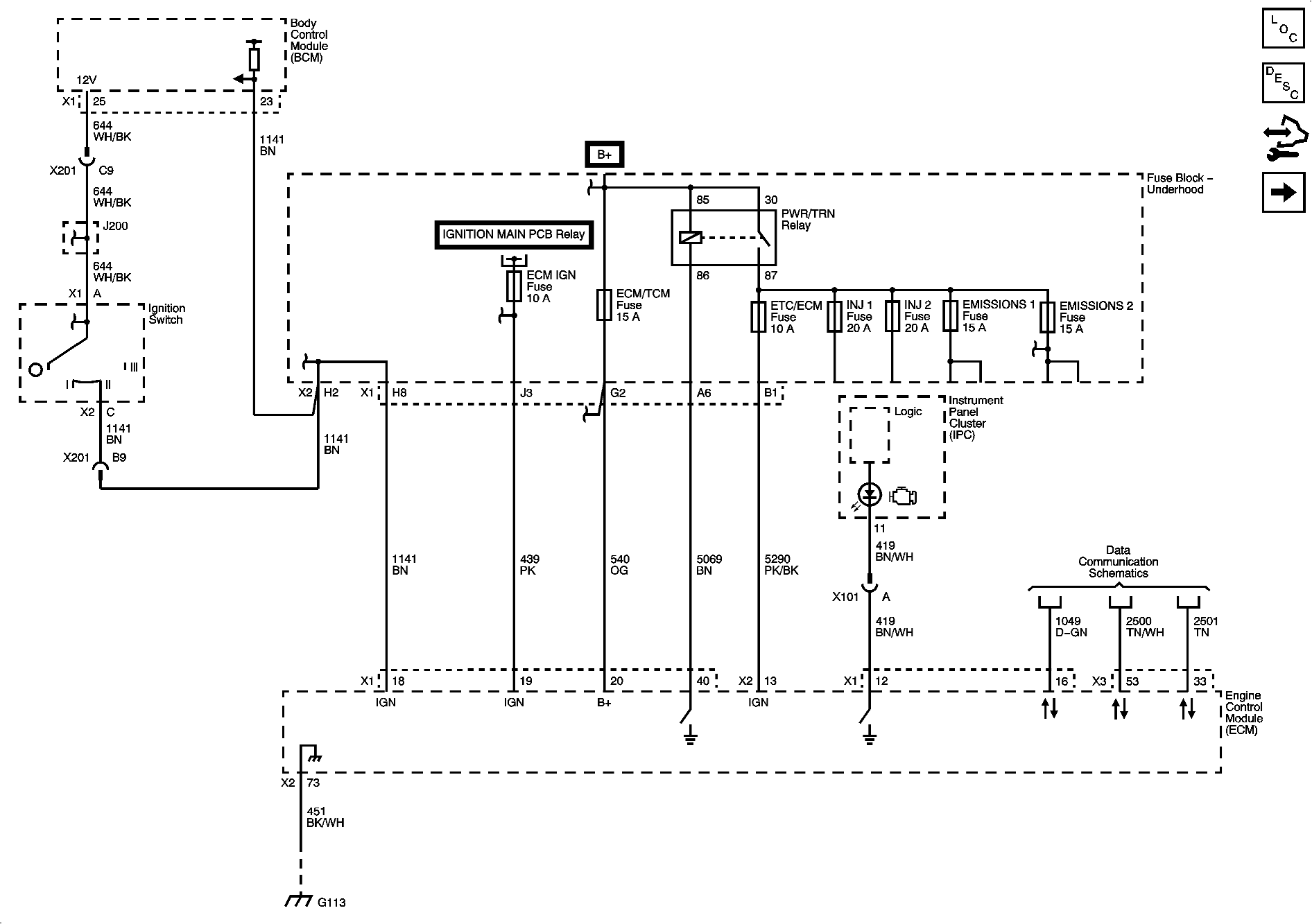

Fig 1: Module Power, Ground, Serial Data & MIL Schematic
Courtesy of GENERAL MOTORS CORP.

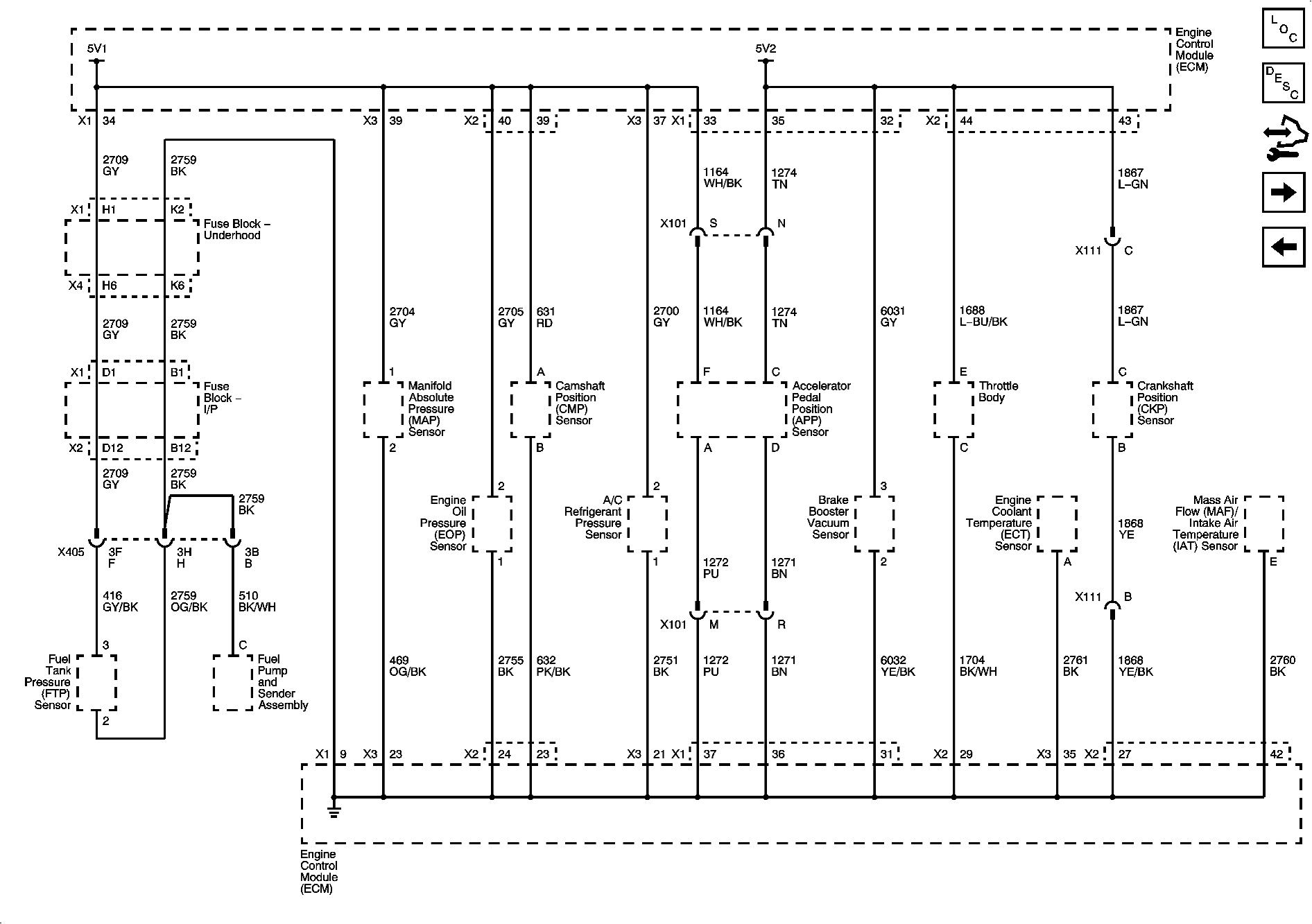

Fig 2: 5 Volt and Low Reference Schematic
Courtesy of GENERAL MOTORS CORP.

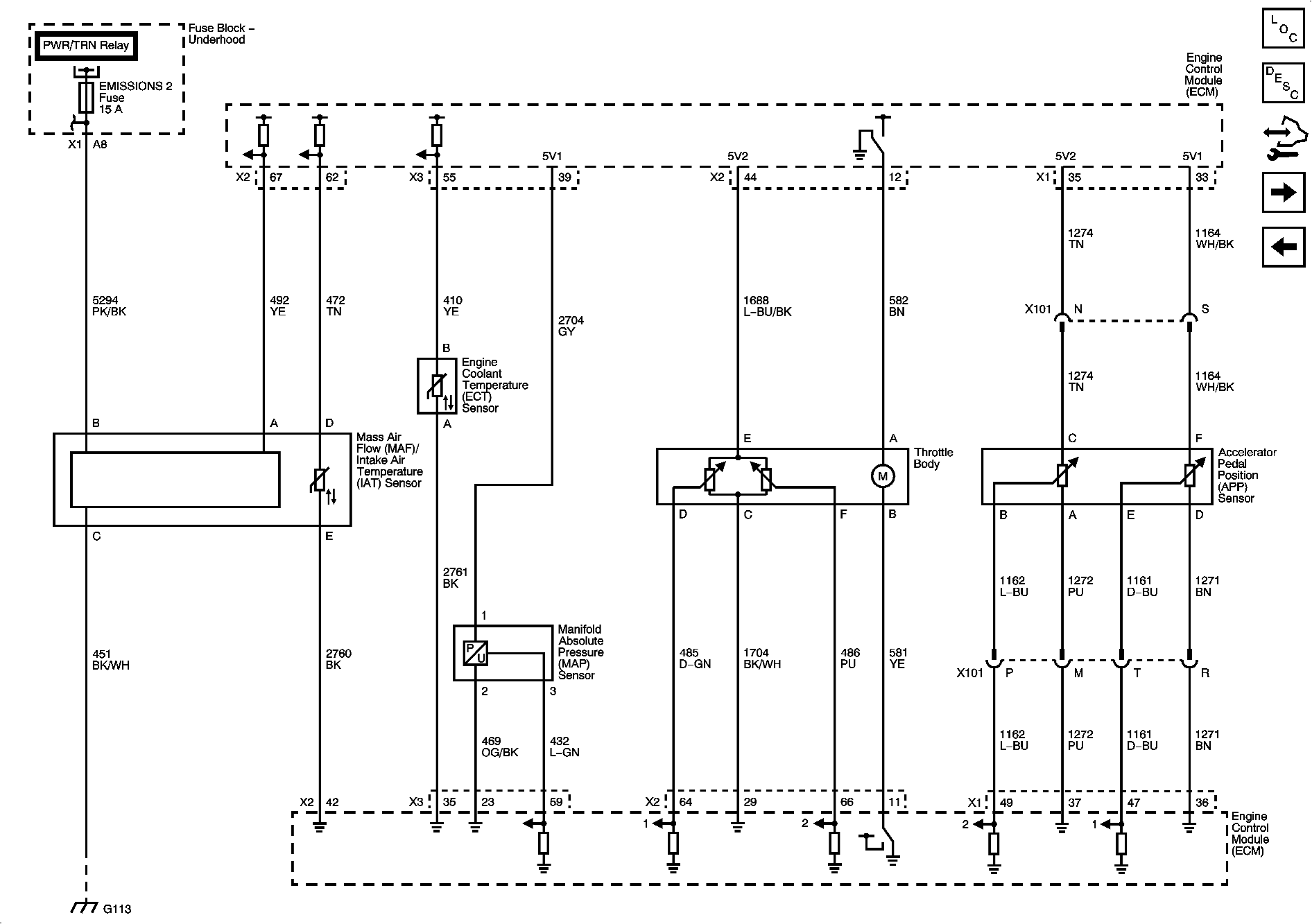

Fig 3: Engine Data Sensors Schematic - Pressure, Temperature & Throttle Control
Courtesy of GENERAL MOTORS CORP.

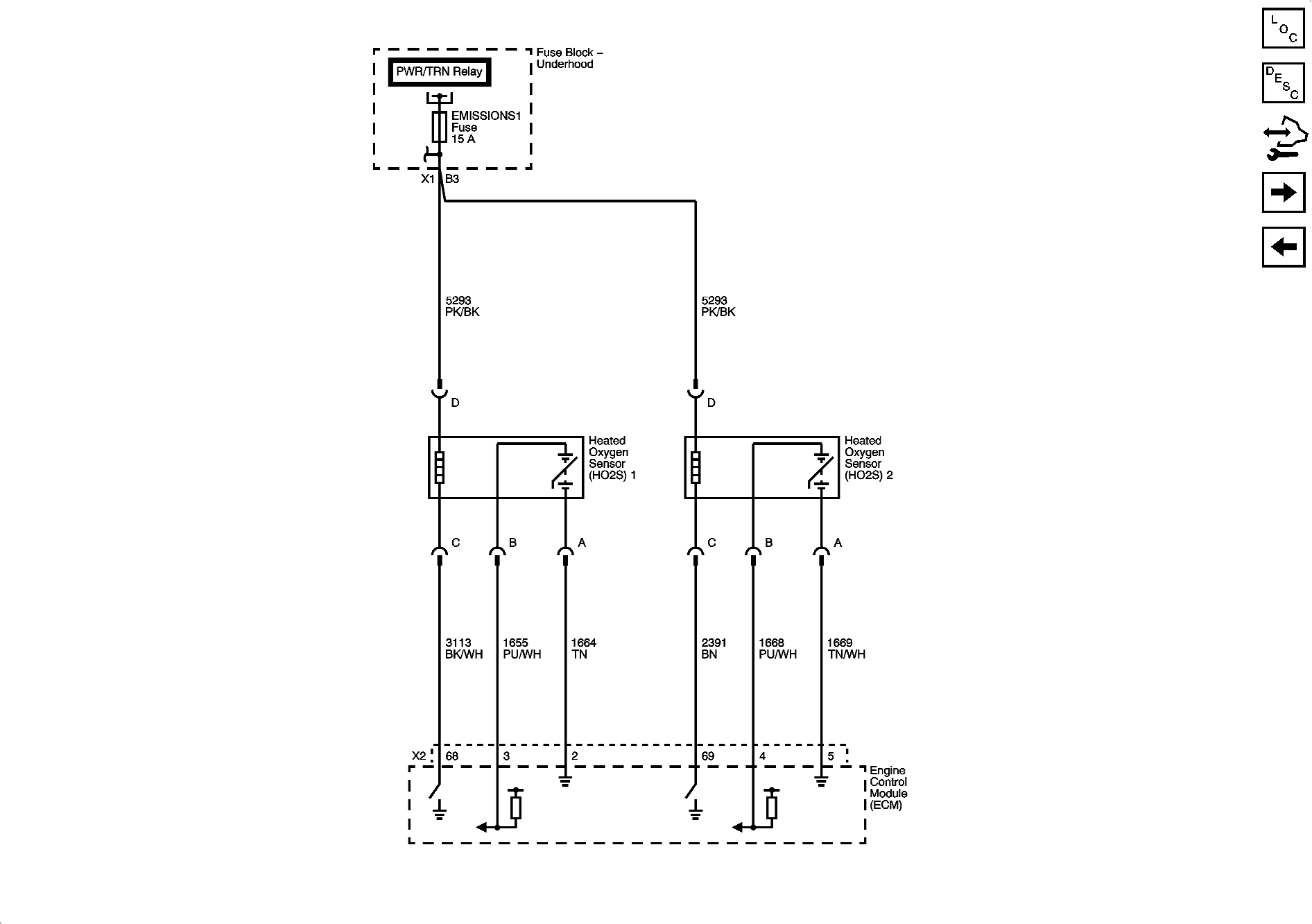

Fig 4: Engine Data Sensors Schematic - HO2S, Stop Lamp Switch Signal & Vehicle Speed Signal
Courtesy of GENERAL MOTORS CORP.

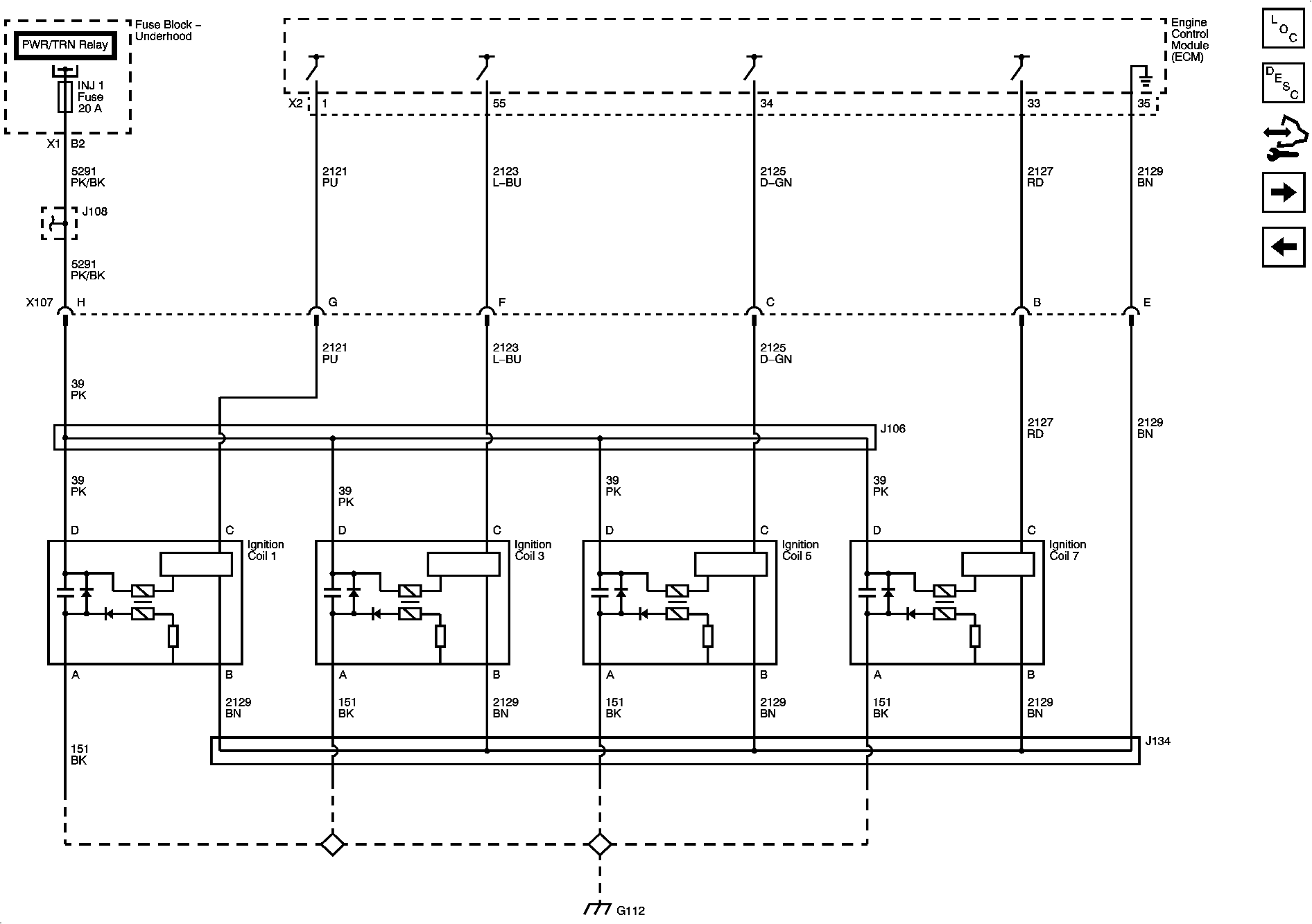

Fig 5: Ignition Controls Schematic - Ignition System Coils 1, 3, 5 & 7
Courtesy of GENERAL MOTORS CORP.

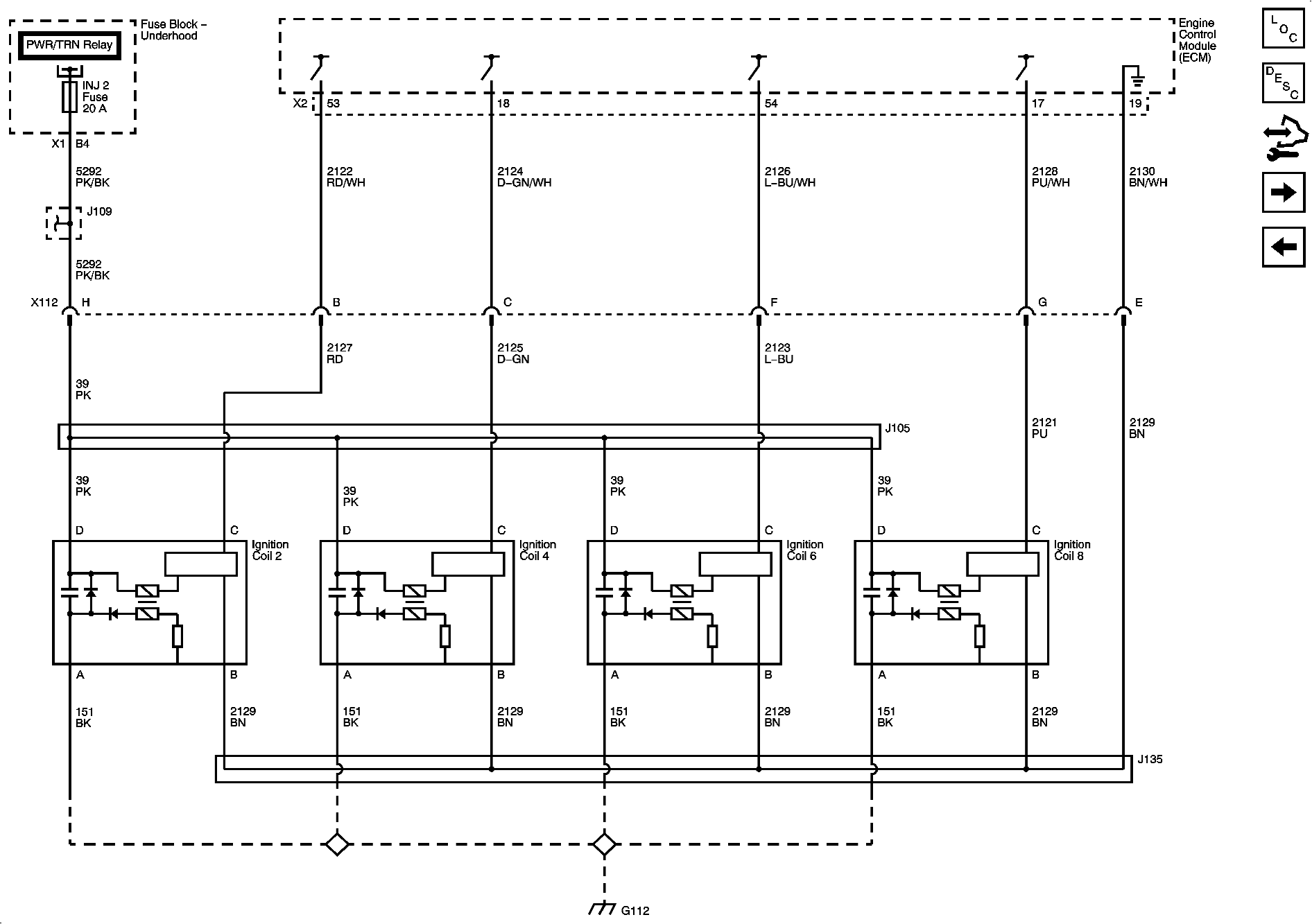

Fig 6: Ignition Controls Schematic - Ignition System Coils 2, 4, 6 & 8
Courtesy of GENERAL MOTORS CORP.

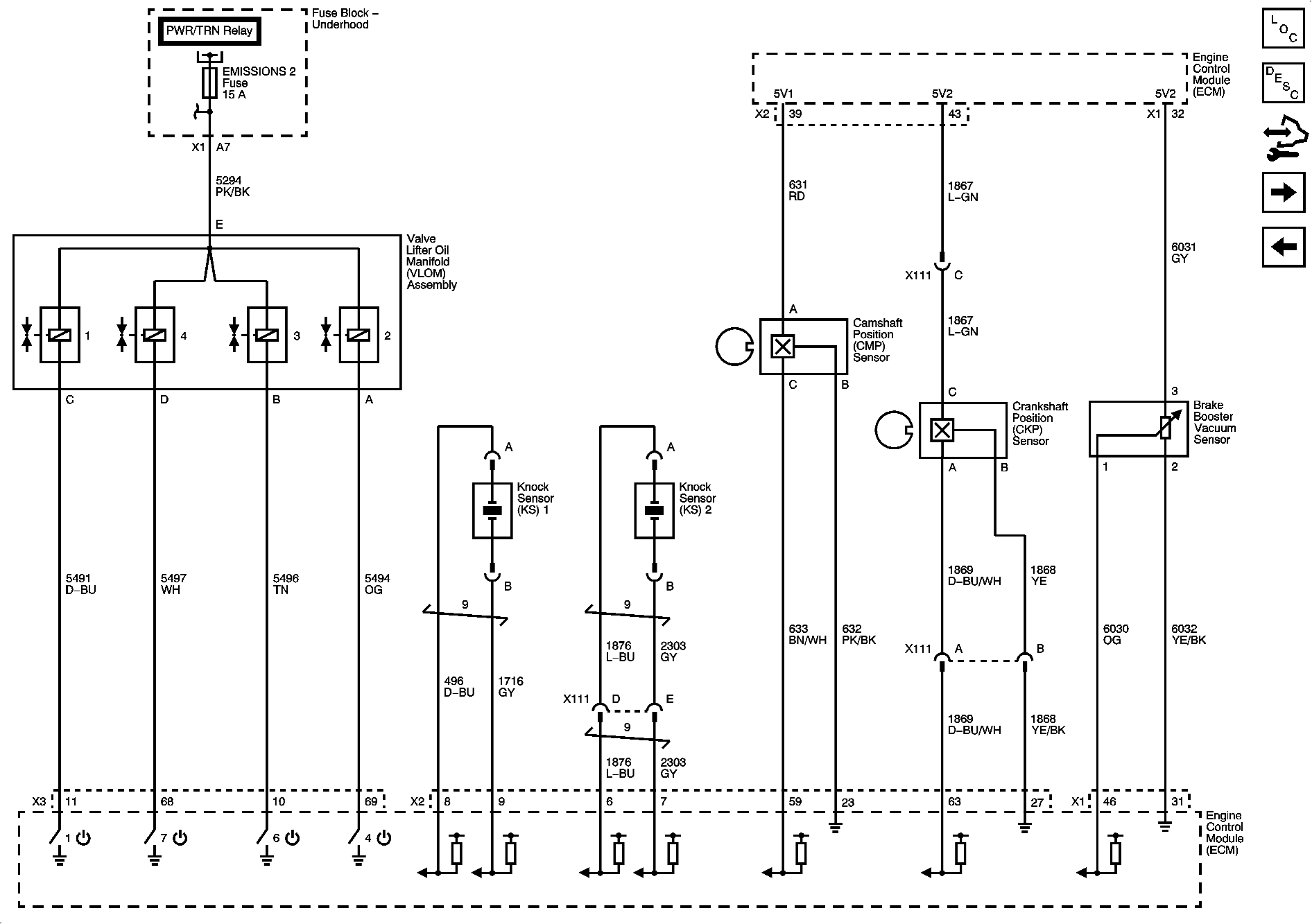

Fig 7: Ignition Controls Schematic - Sensors
Courtesy of GENERAL MOTORS CORP.

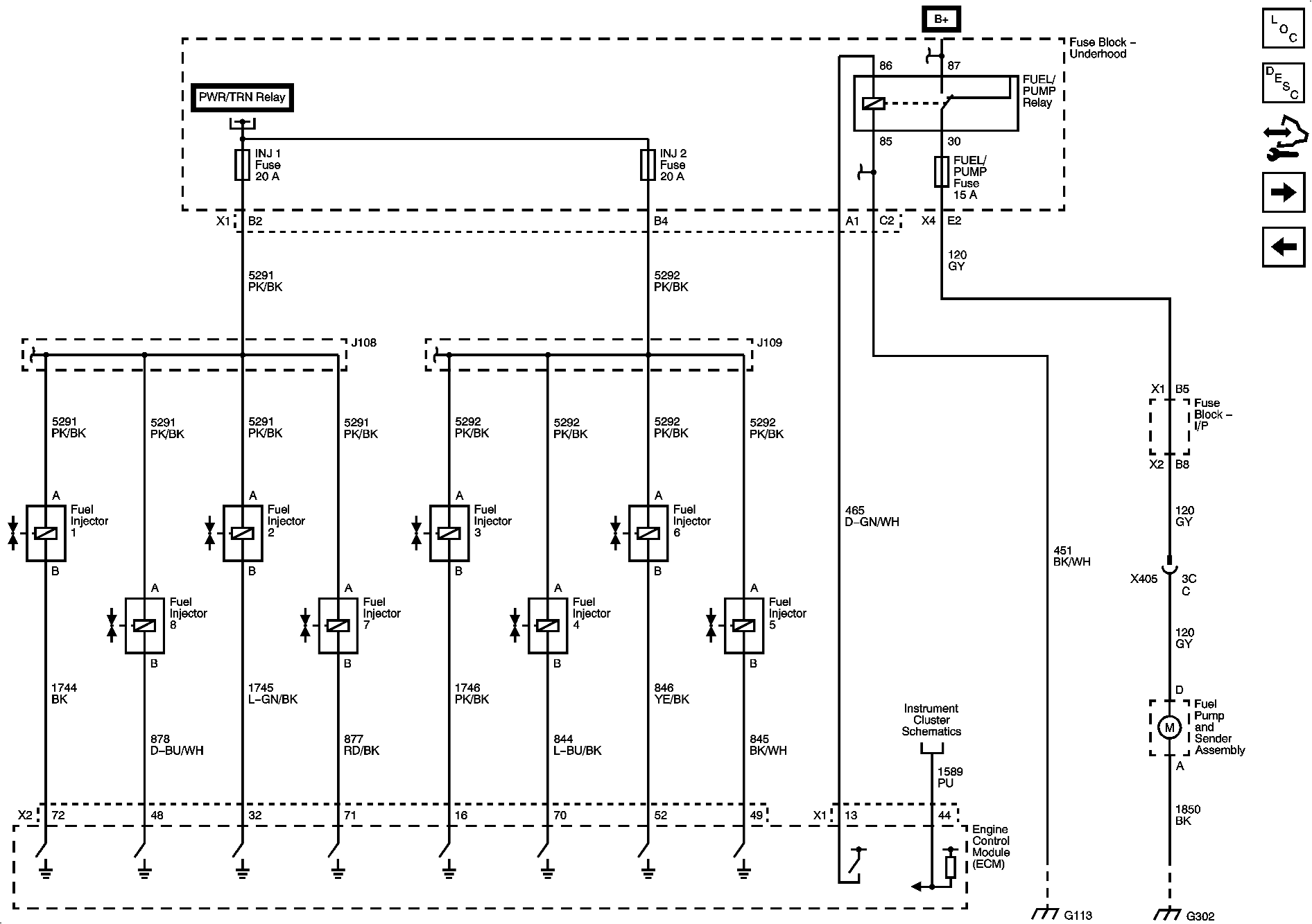

Fig 8: Fuel Controls Schematic - Fuel Injectors, and Fuel Pump Controls
Courtesy of GENERAL MOTORS CORP.

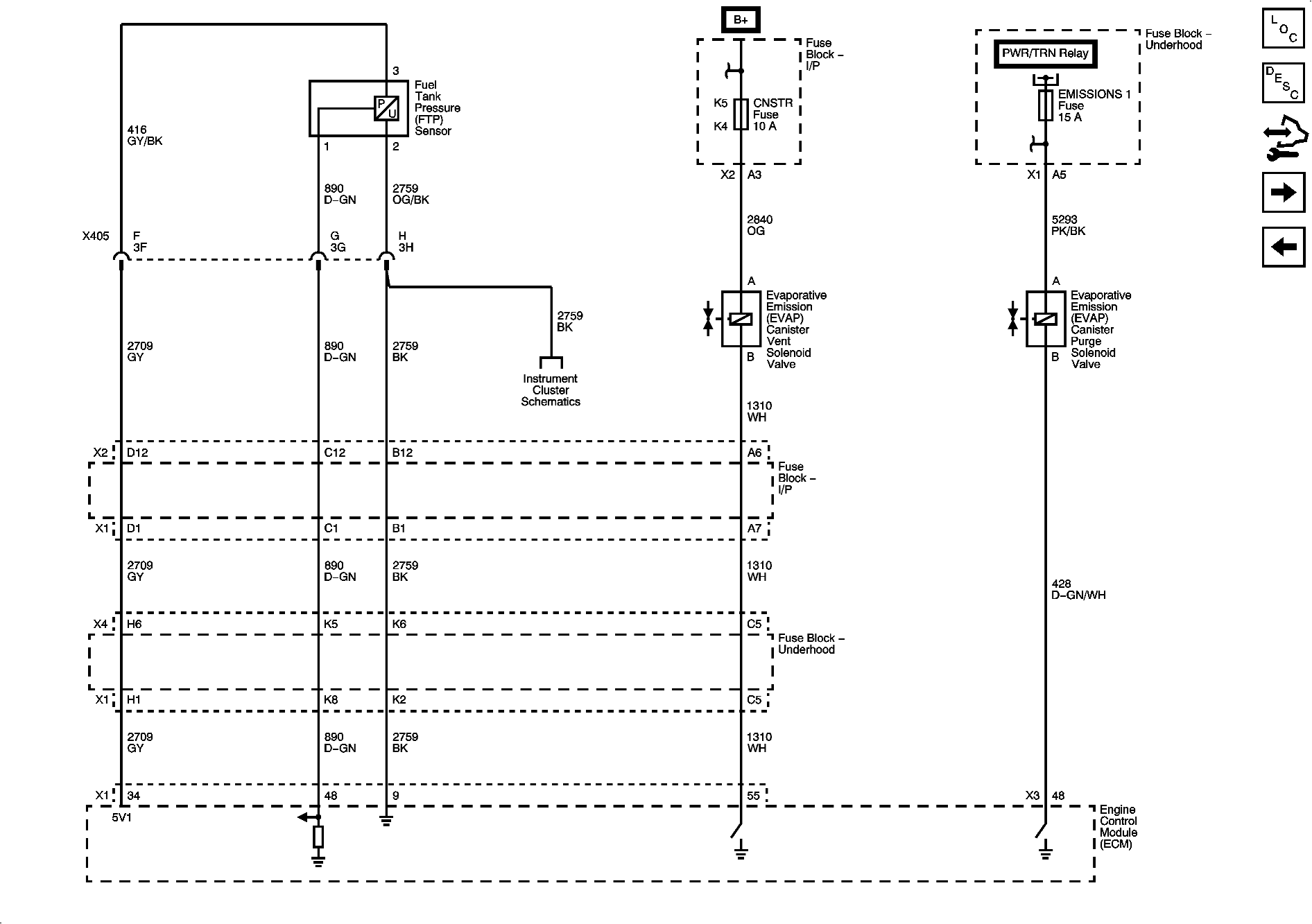

Fig 9: Fuel Controls Schematic - EVAP Controls
Courtesy of GENERAL MOTORS CORP.

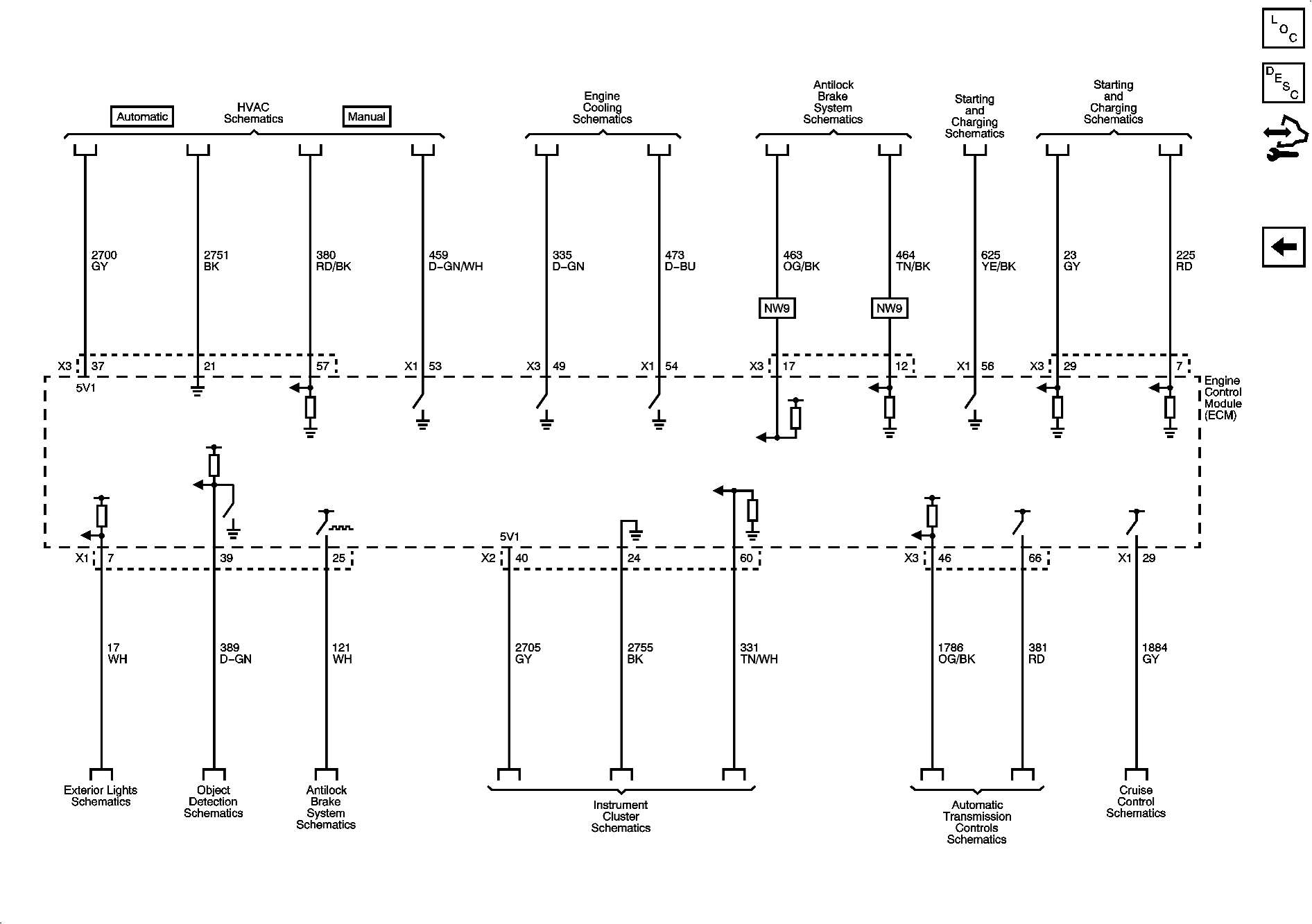

Fig 10: Monitored/Controlled Subsystem References Schematic
Courtesy of GENERAL MOTORS CORP.
