Steering Wheel Secondary/Configurable Control Schematics

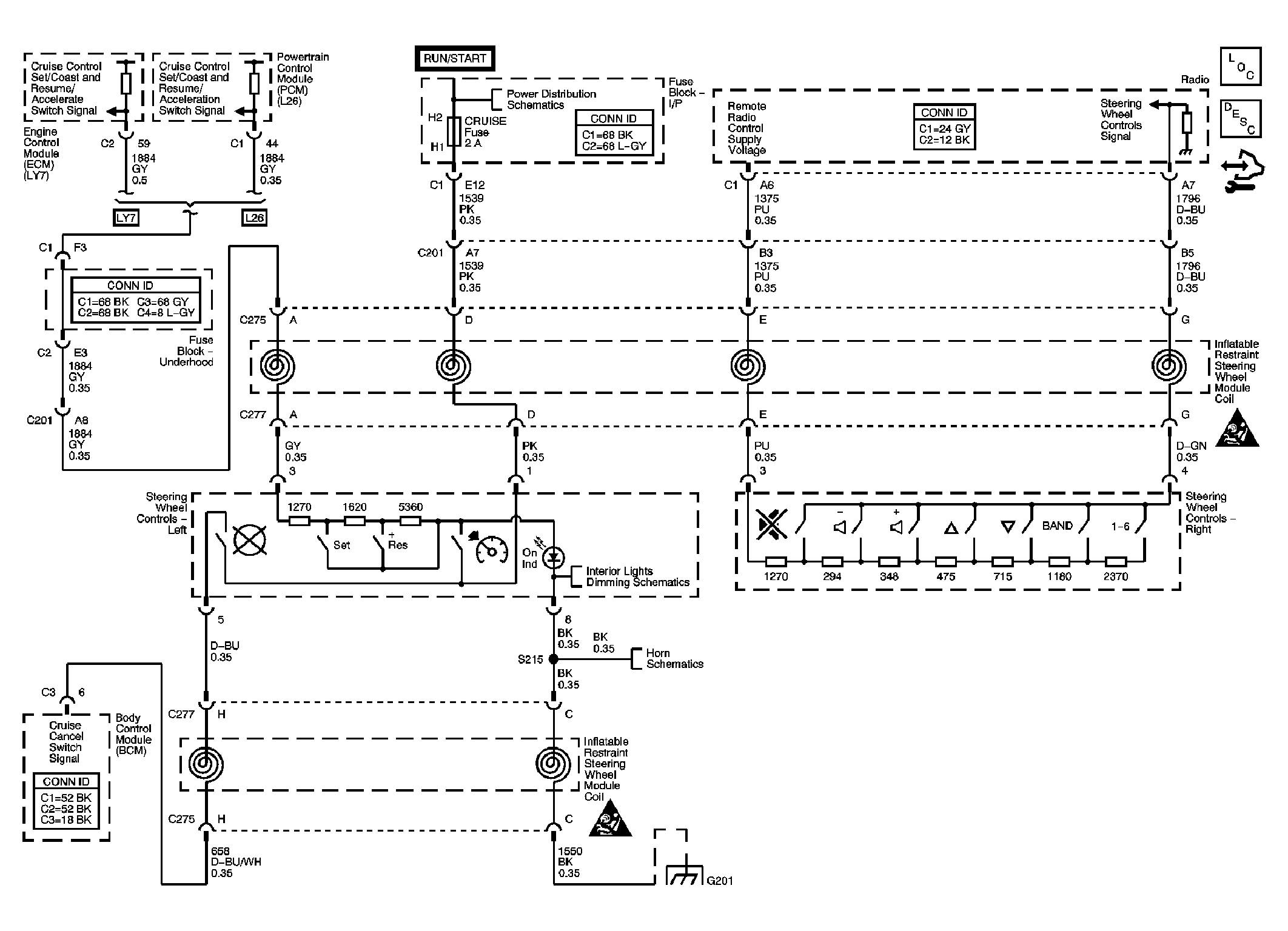

Fig 1: Steering Wheel Controls
GM1888871Courtesy of GENERAL MOTORS CORP.
