I/P Fuse Block



Electrical Center Identification Views

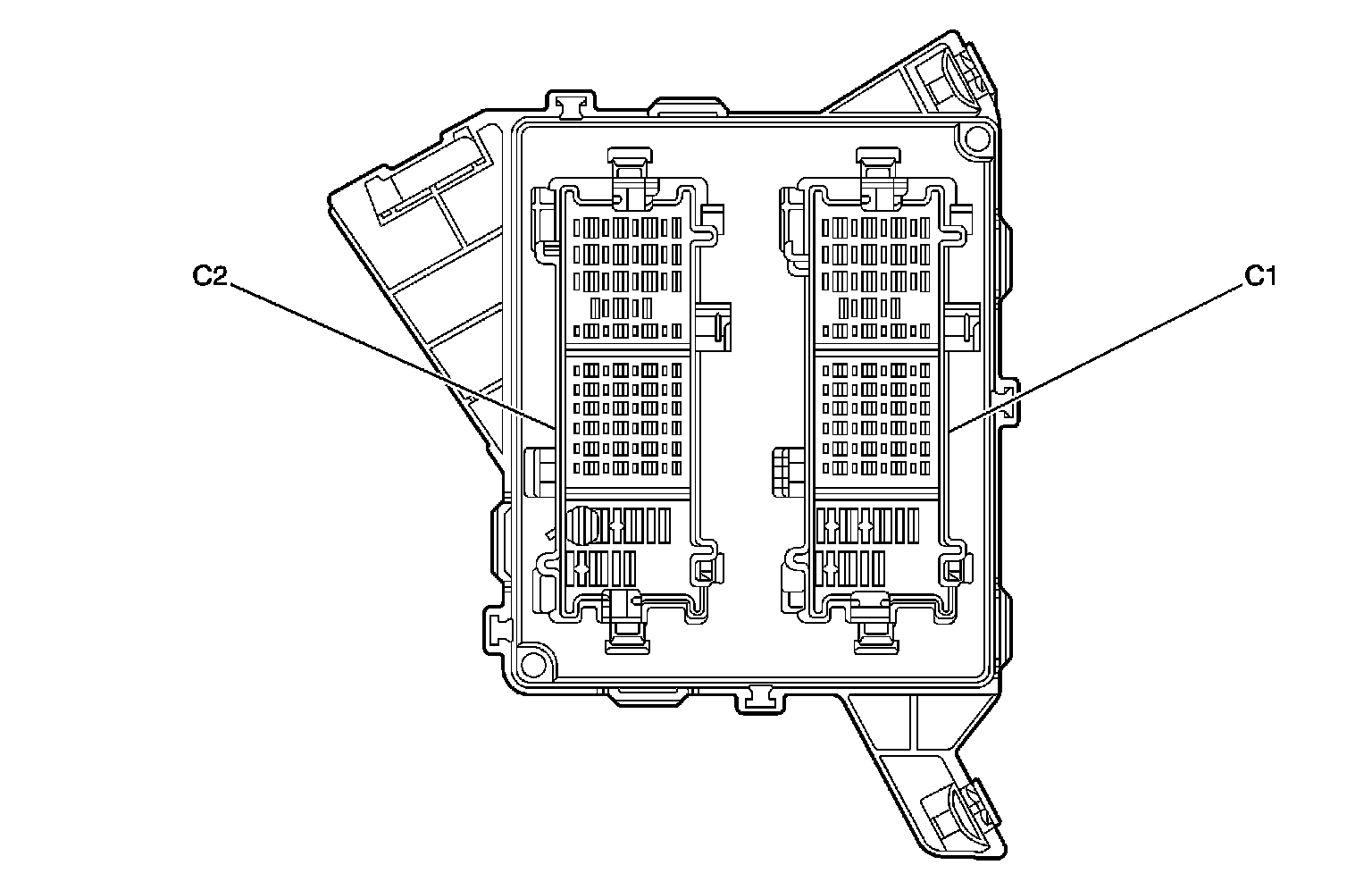

Fuse Block - I/P Top View






Fuse Block - I/P Bottom View

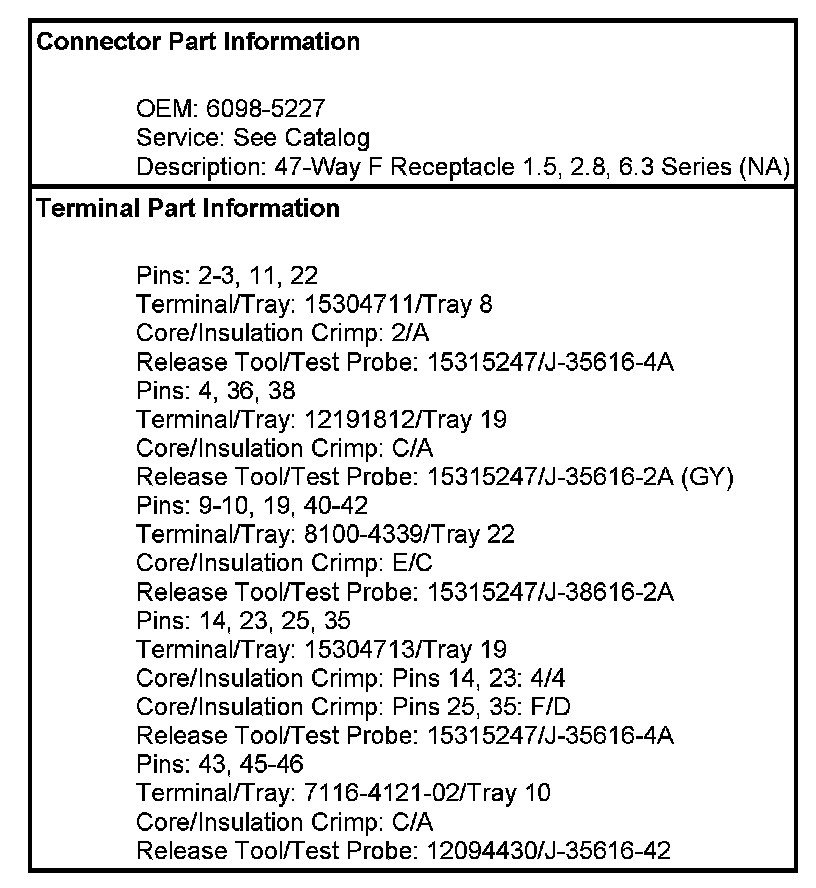

Fuse Block - I/P C1

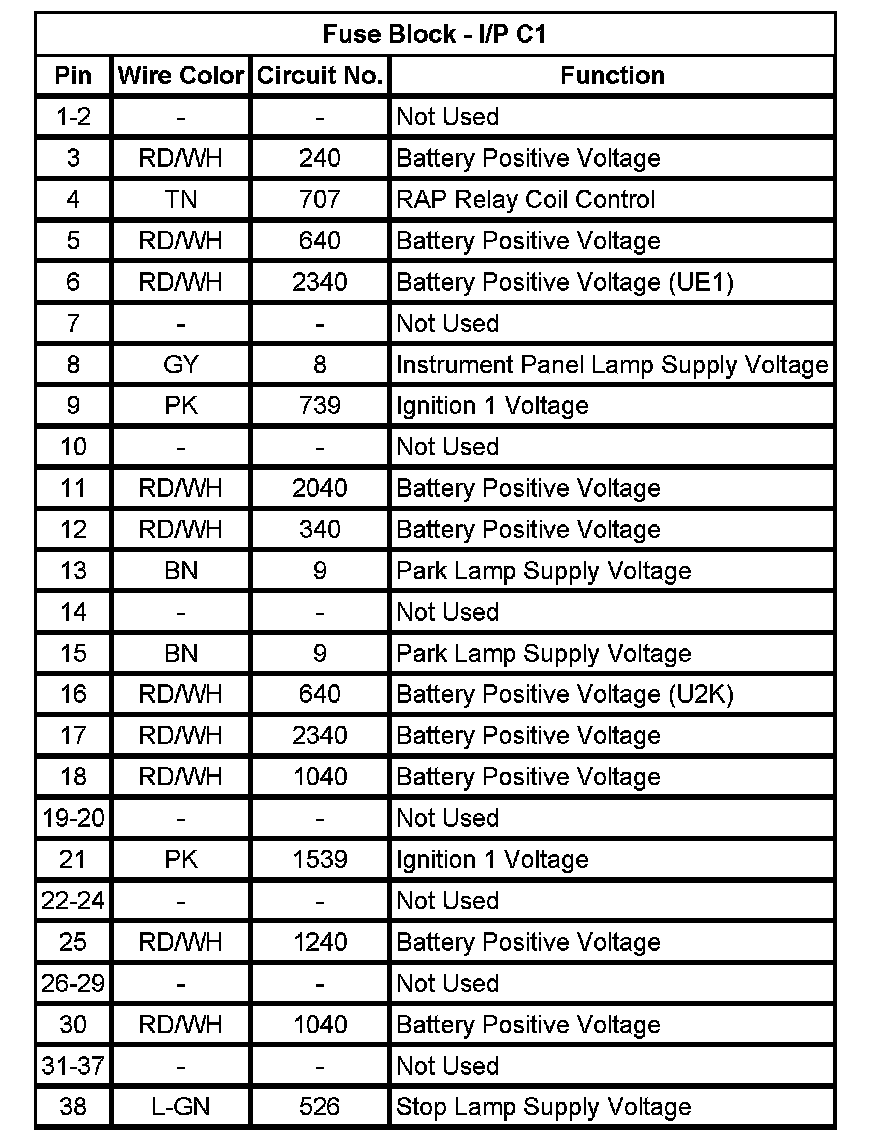

Fuse Block - I/P C1 (Pin 1 To 38):





Fuse Block - I/P C1 (Pin 39 To A-C):






Fuse Block - I/P C2









Fuse Block - I/P C2 (Pin 1 To 25):





Fuse Block - I/P C2 (Pin 26 To 47):
