Generator Bracket Replacement (With RPO Code LX9)

Generator Bracket Replacement (RPO LX9)

Removal Procedure




1. Remove the generator.
2. Remove the drive belt tensioner.

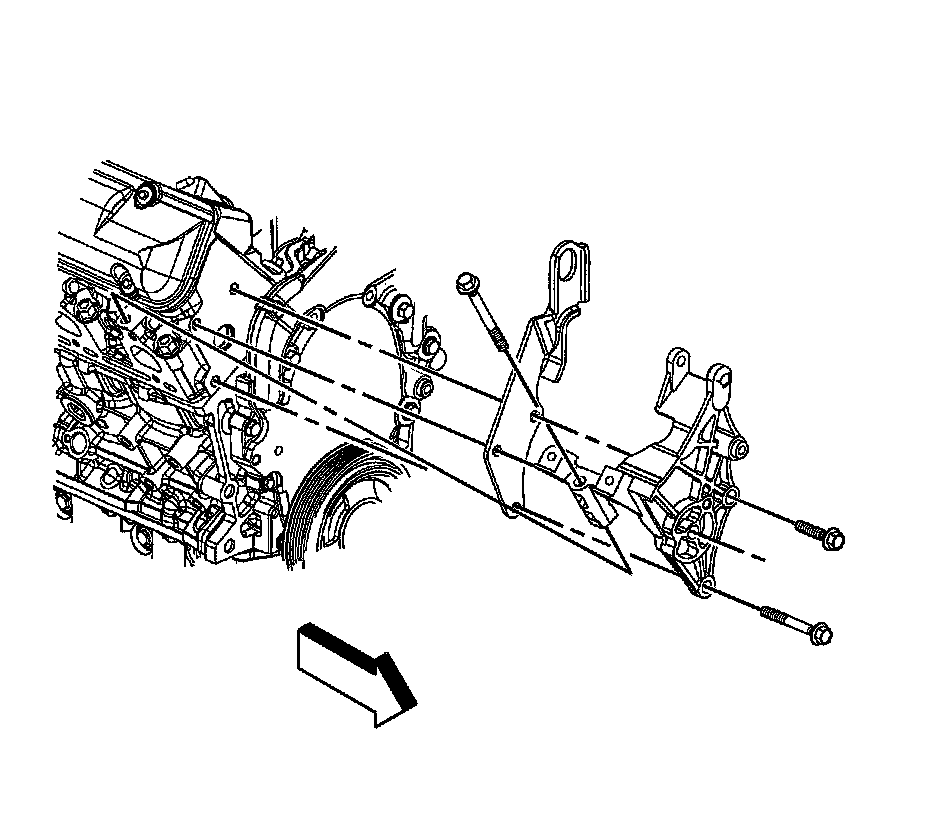

3. Remove the generator bracket bolts.
4. Remove the generator bracket and engine lift bracket.

Installation Procedure




1. Position the engine lift bracket and generator bracket to the engine.

Notice: Refer to Fastener Notice.

2. Install the generator bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).

3. Install the drive belt tensioner.
4. Install the generator.
