Center Console Fuse Block



Electrical Center Identification Views

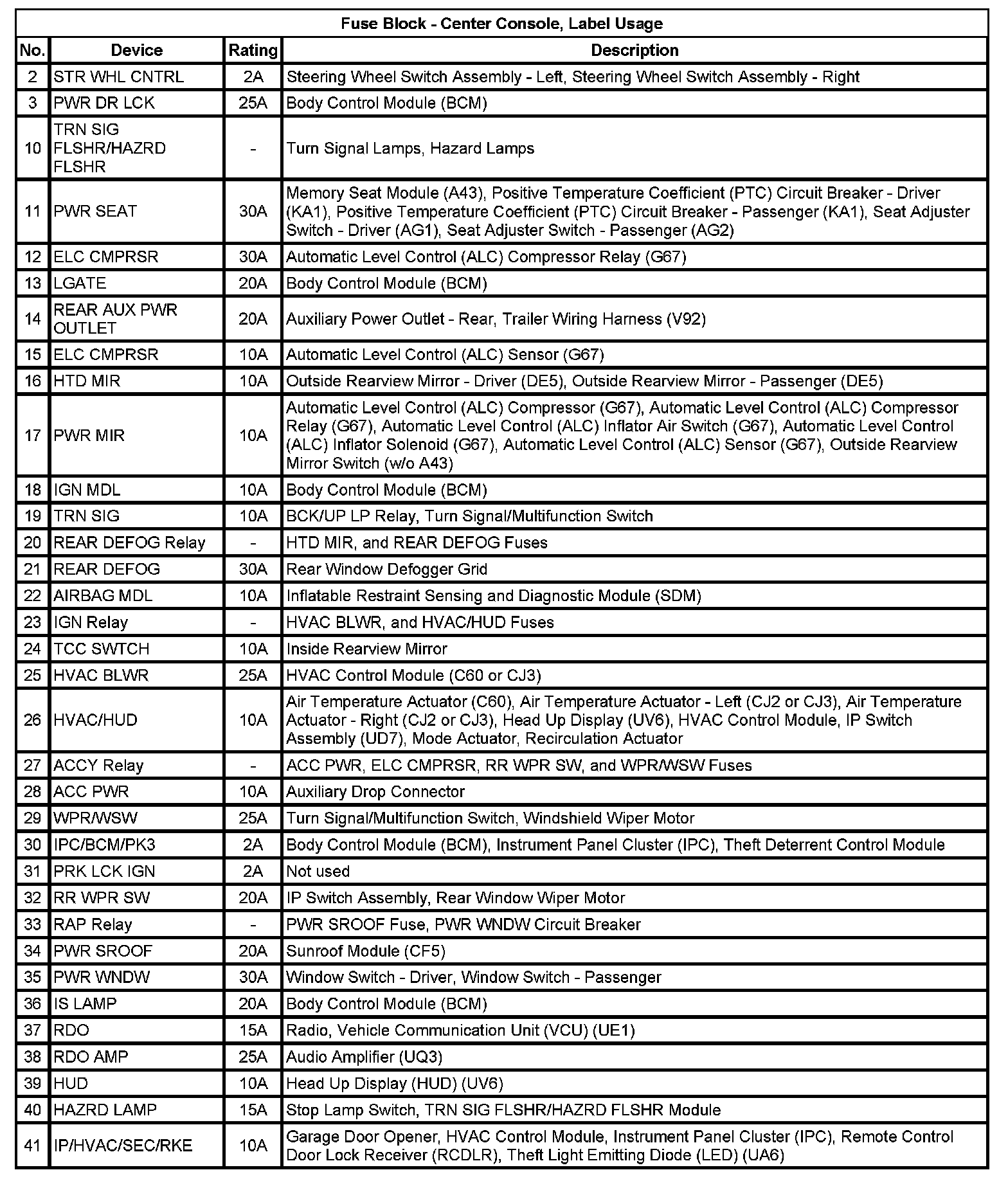

Fuse Block - Center Console, Label
