Body Control Systems

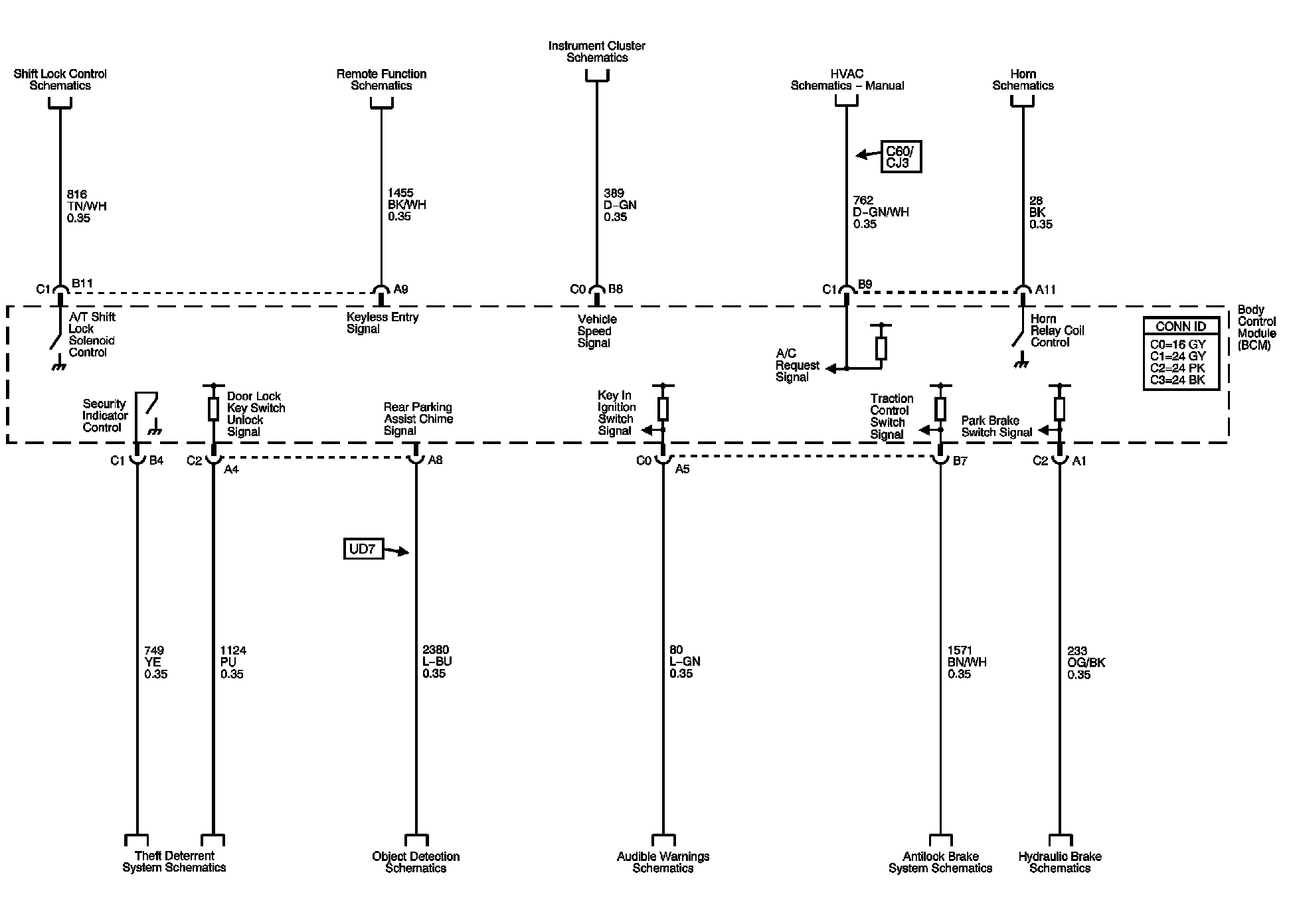

Body Control System Schematics

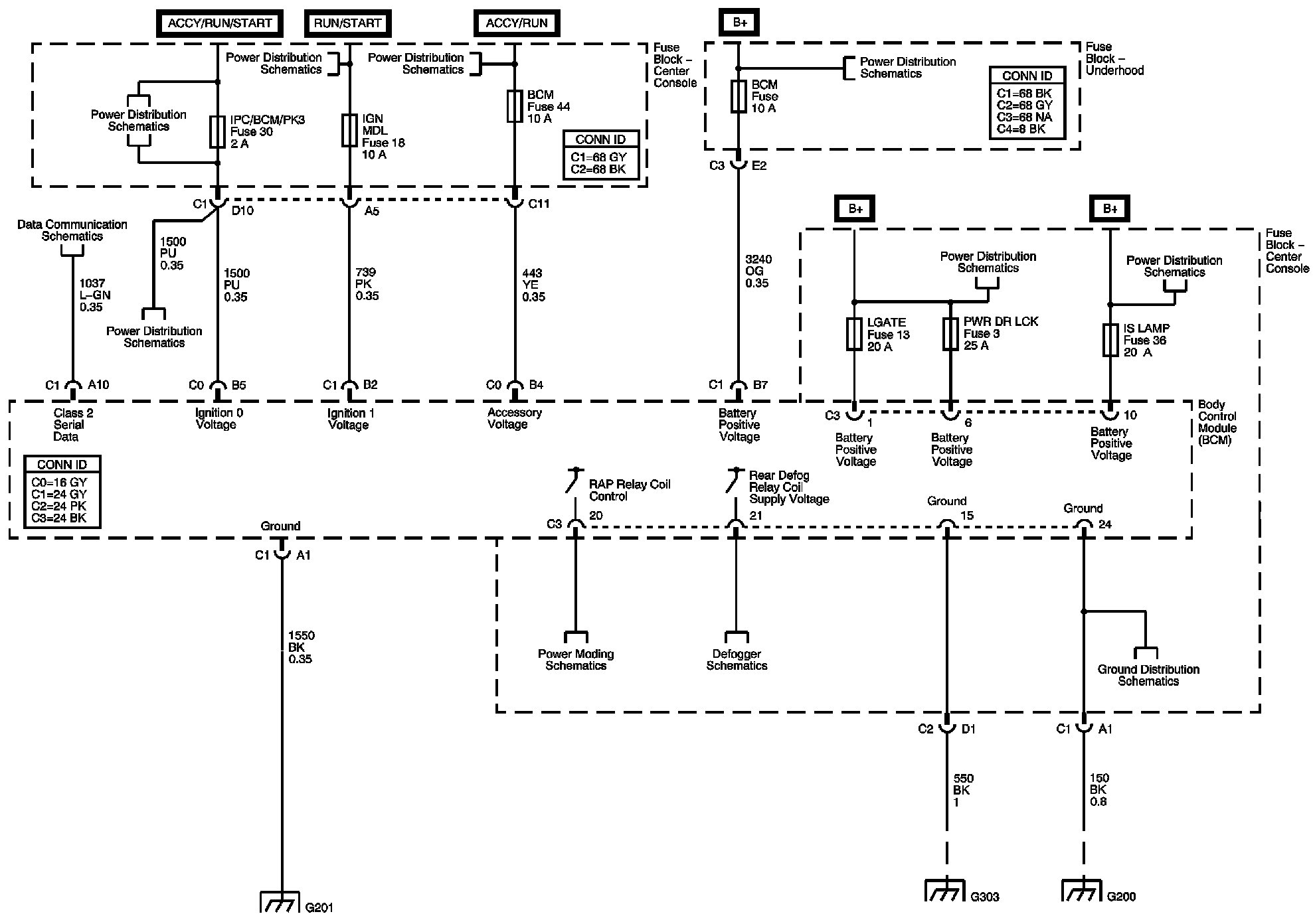

Ground, Power, and Serial Data
Subsystem References
Door Lock and Release Systems References

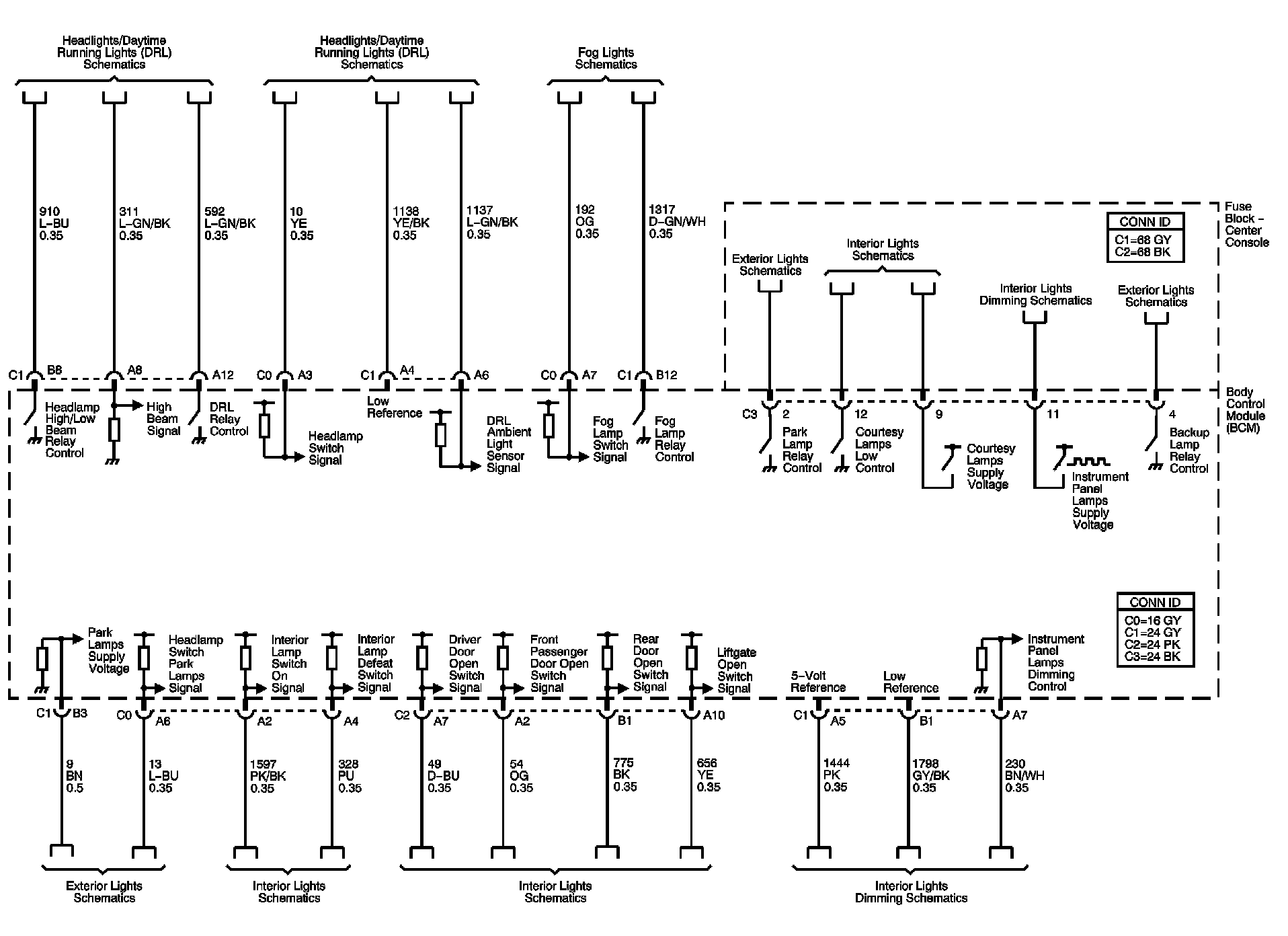

Lighting References
Body Control System Schematics
Ground, Power, and Serial Data
Subsystem References
Door Lock and Release Systems References
Lighting References
