Cruise Control Inoperative/Malfunctioning



Cruise Control Inoperative/Malfunctioning

Diagnostic Aids

Important: Perform the following in order to avoid misdiagnosis.

* Inspect for proper operation of the brake lamps.
* Inspect for proper operation of the transmission range switch.
* Inspect throttle linkage for mechanical binding which could cause the system to malfunction.

Test

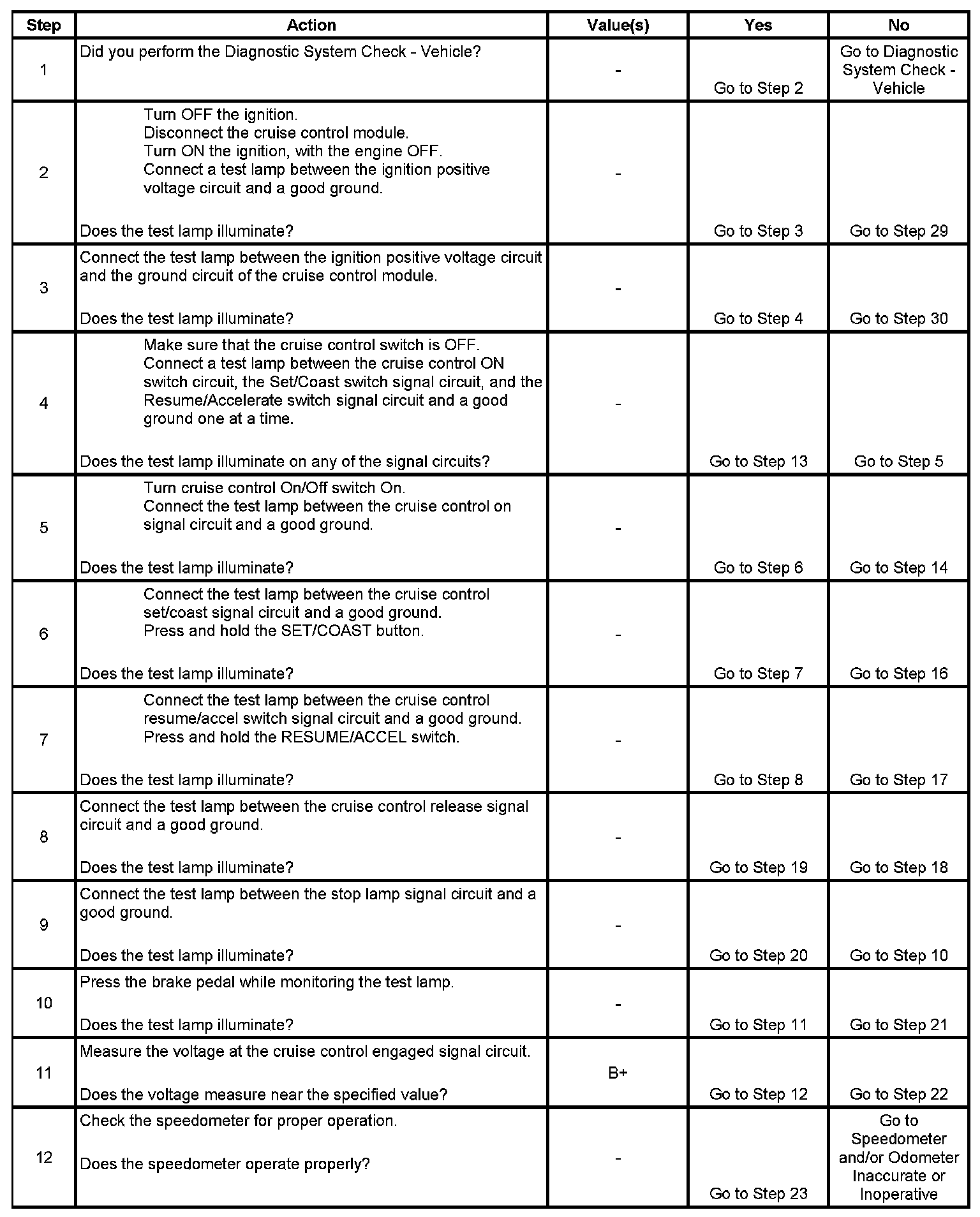

Step 1 - Step 12:

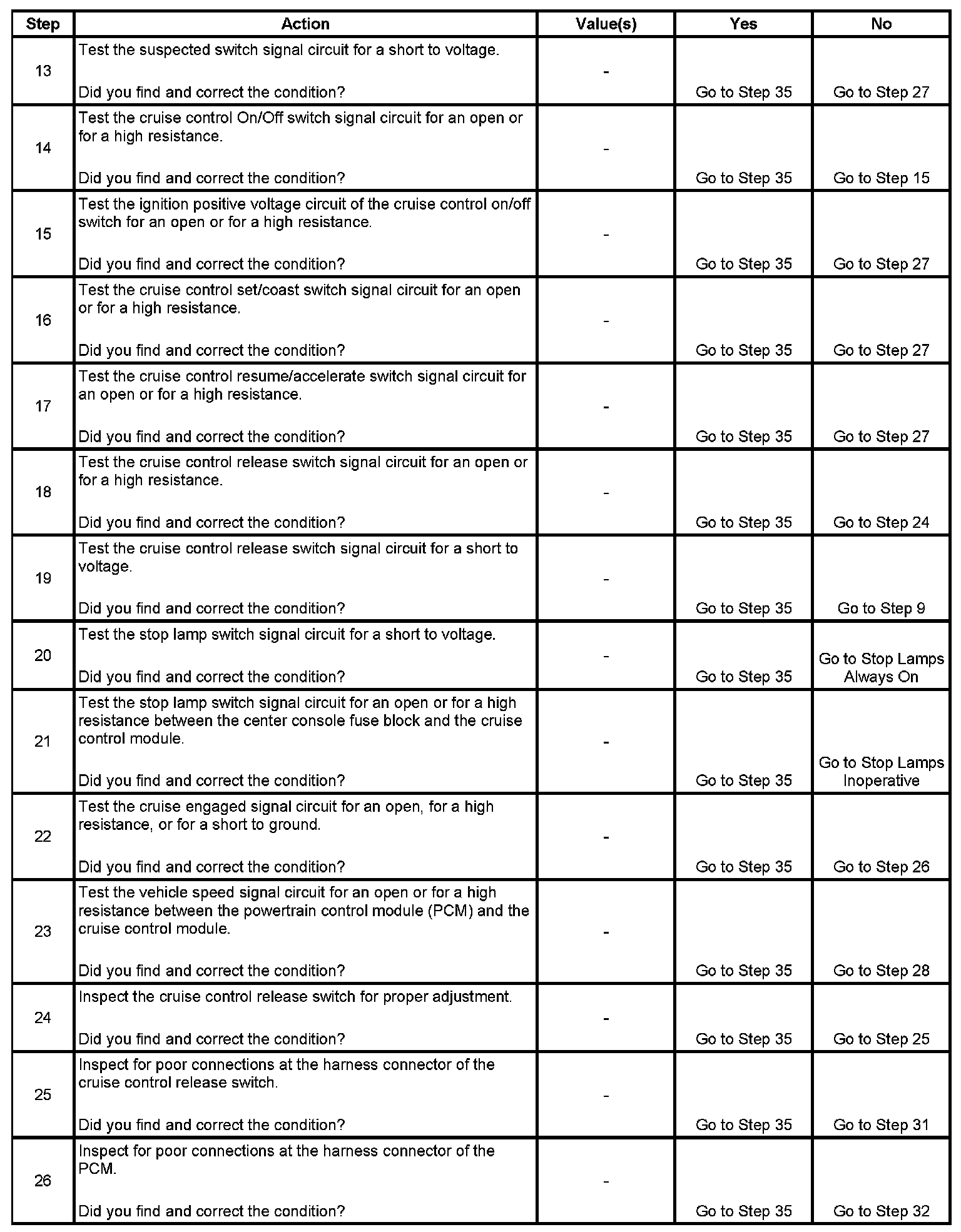

Step 13 - Step 26:

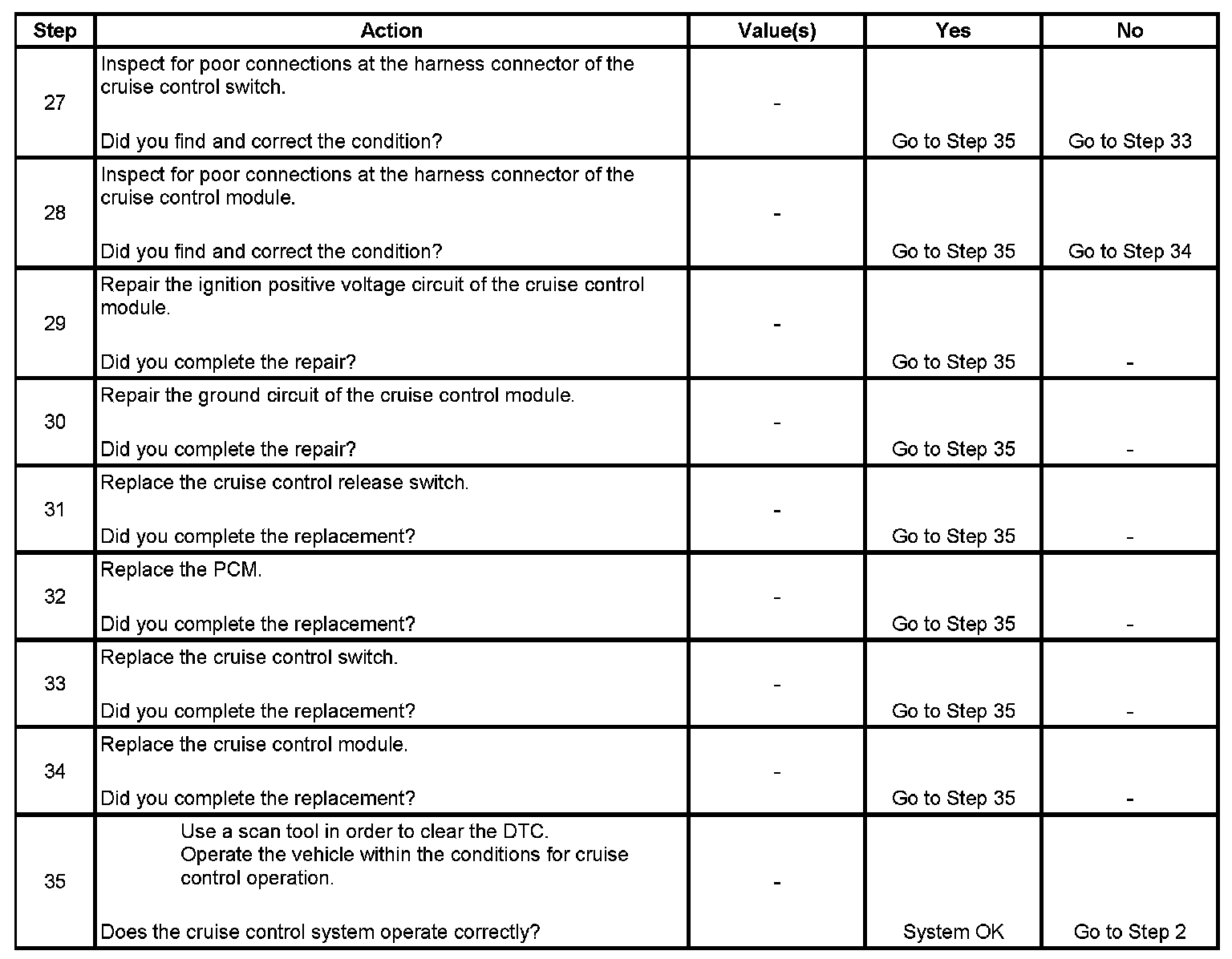

Step 27 - Step 35:
