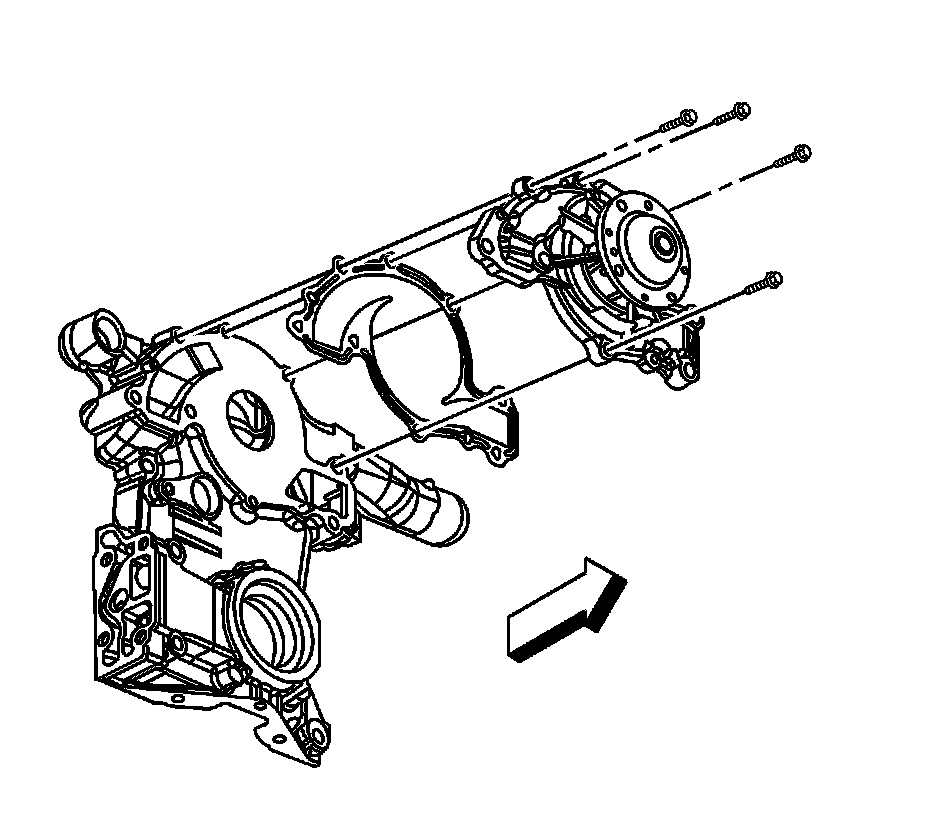

Water Pump

Water Pump Bolt
Large Bolt 34 N.m (25 lb ft)
Small Bolt 22 N.m (16 lb ft)





Install the water pump gasket.
Install the water pump bolts.
Tighten the bolts to 15 N.m (11 lb ft)
Plus an additional 80 degrees using J 45059.
