Engine Control Module

Powertrain Control Module Connector End Views

Powertrain Control Module (PCM) C1

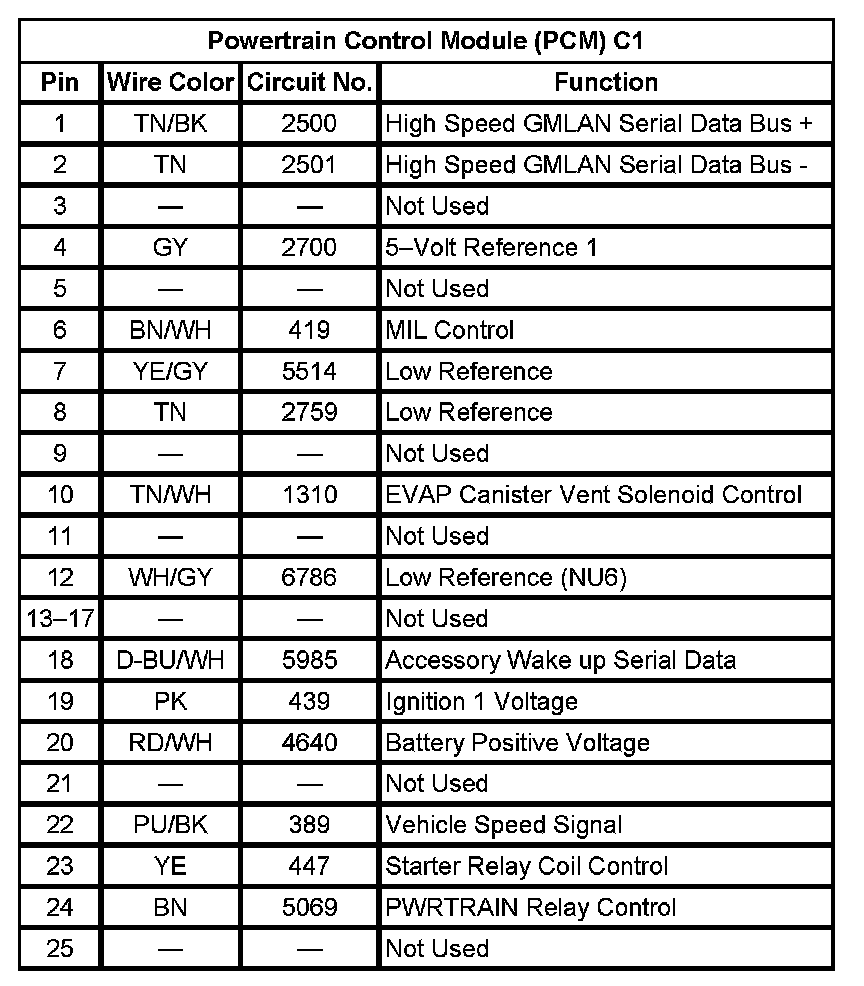

Powertrain Control Module (PCM) C1 (Pin 1 To 25):

Powertrain Control Module (PCM) C1 (Pin 26 To 56):

Powertrain Control Module (PCM) C2

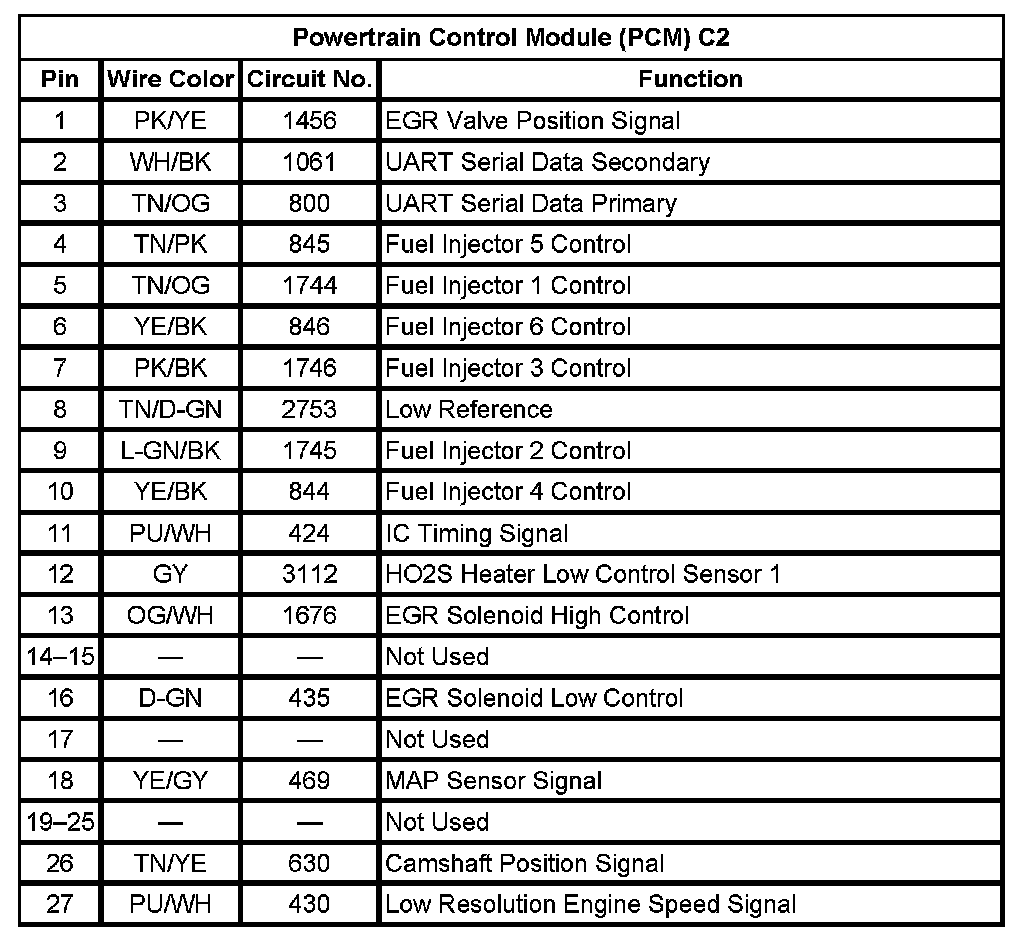

Powertrain Control Module (PCM) C2 (Pin 1 To 27):

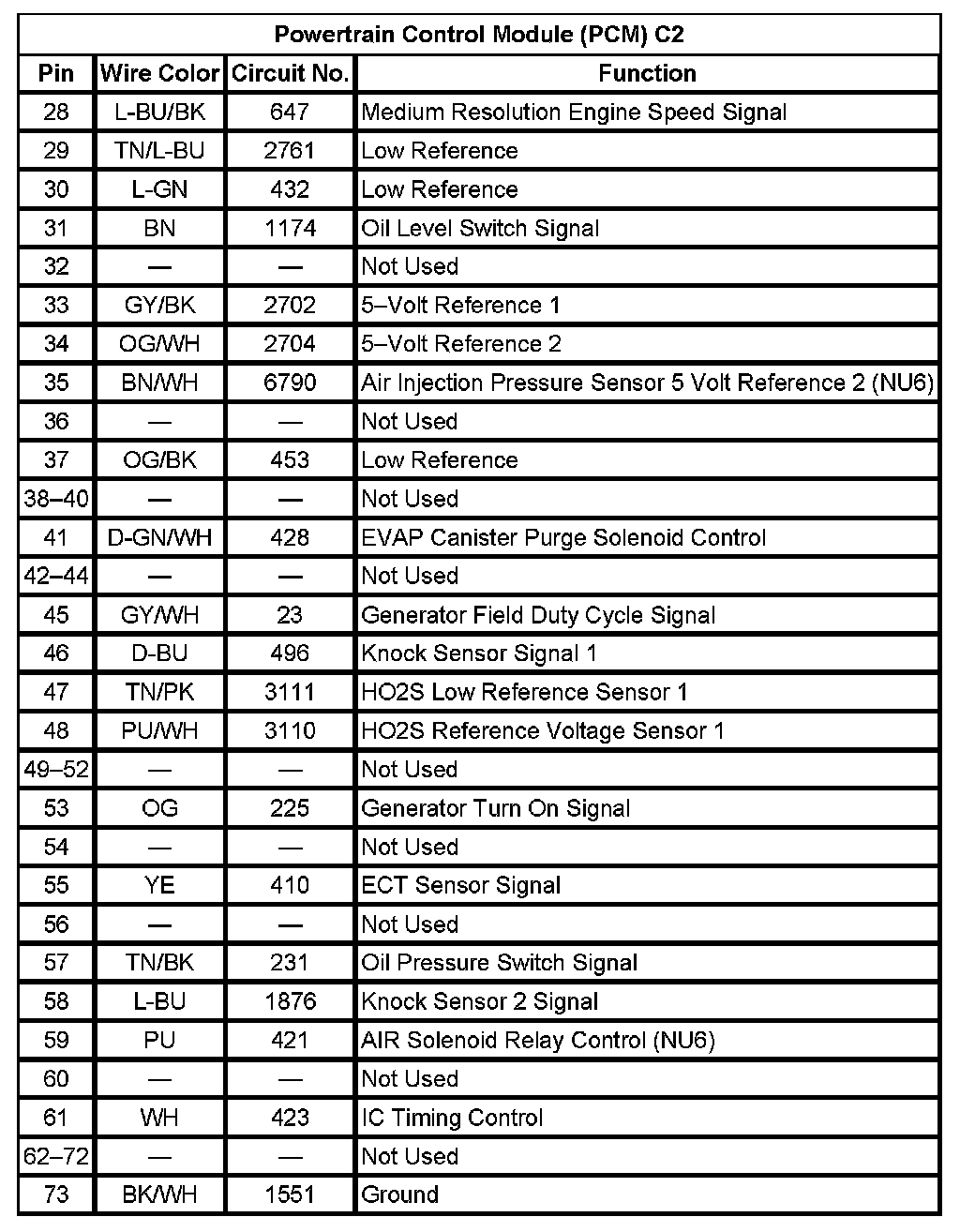

Powertrain Control Module (PCM) C2 (Pin 28 To 73):

Powertrain Control Module (PCM) C3

Powertrain Control Module (PCM) C3 (Pin 1 To 26):

Powertrain Control Module (PCM) C3 (Pin 27 To 56):
