Power Seat Control Module: Locations

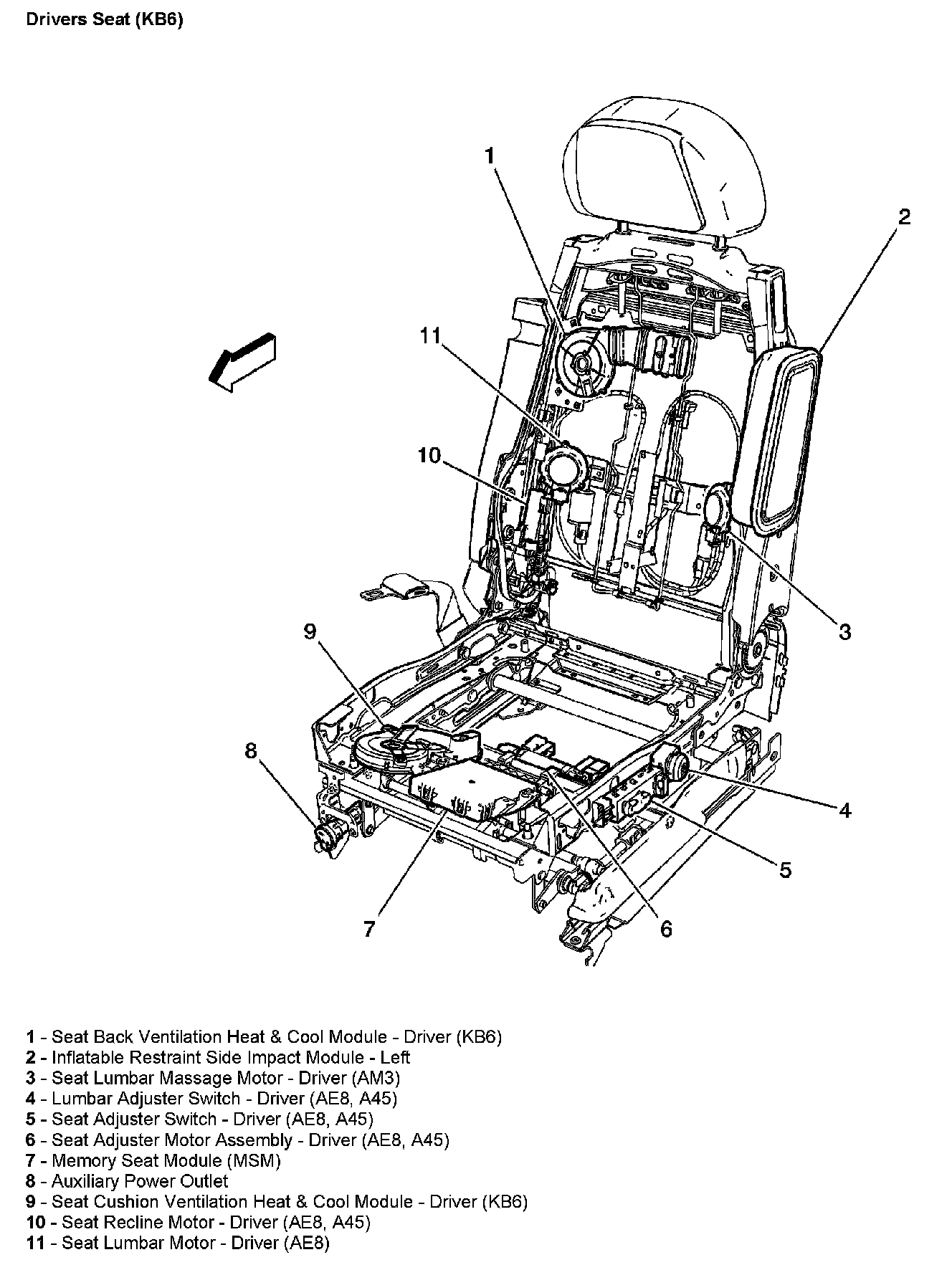

Drivers Seat (With RPO Code KB6):

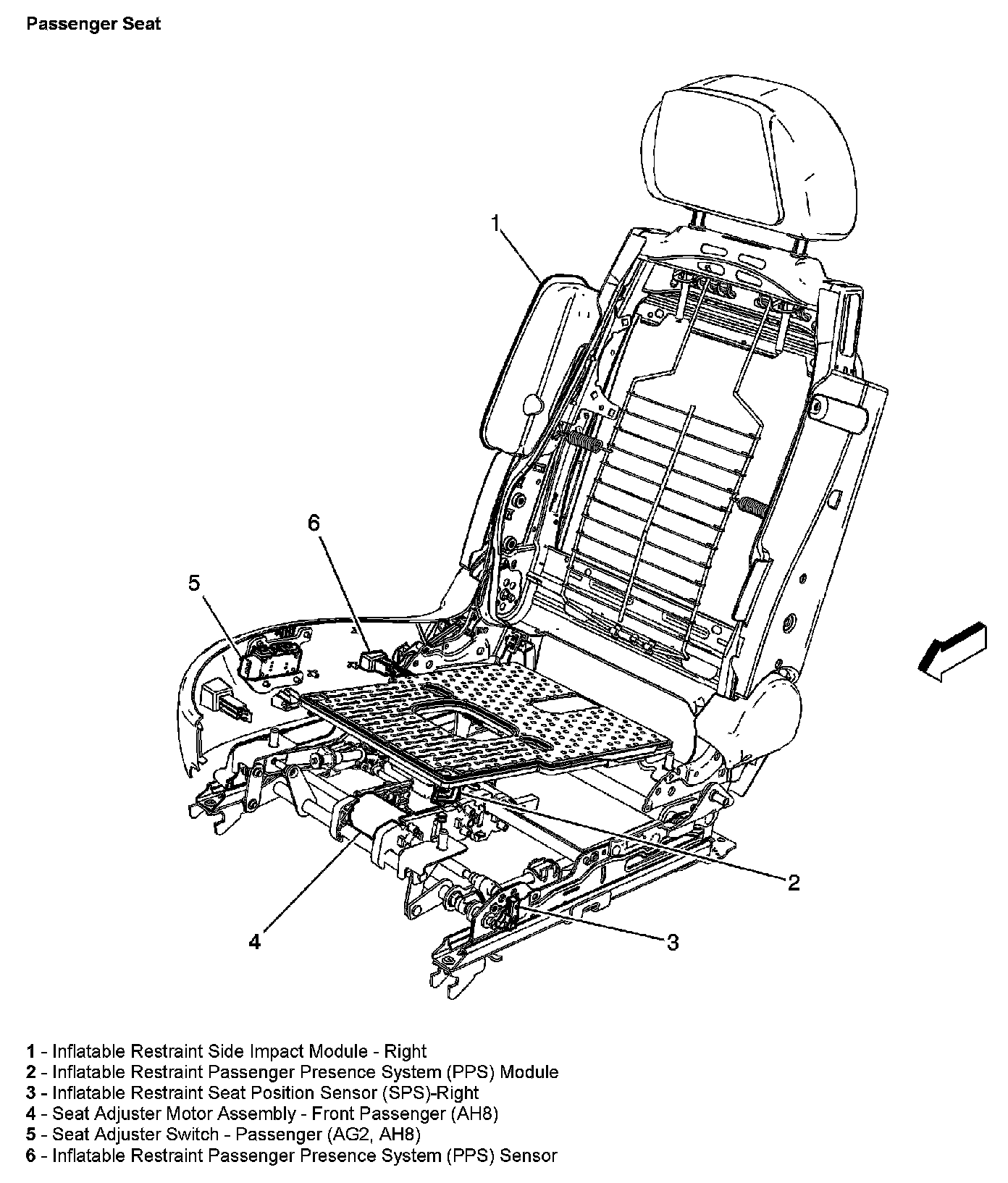

Passenger Seat:

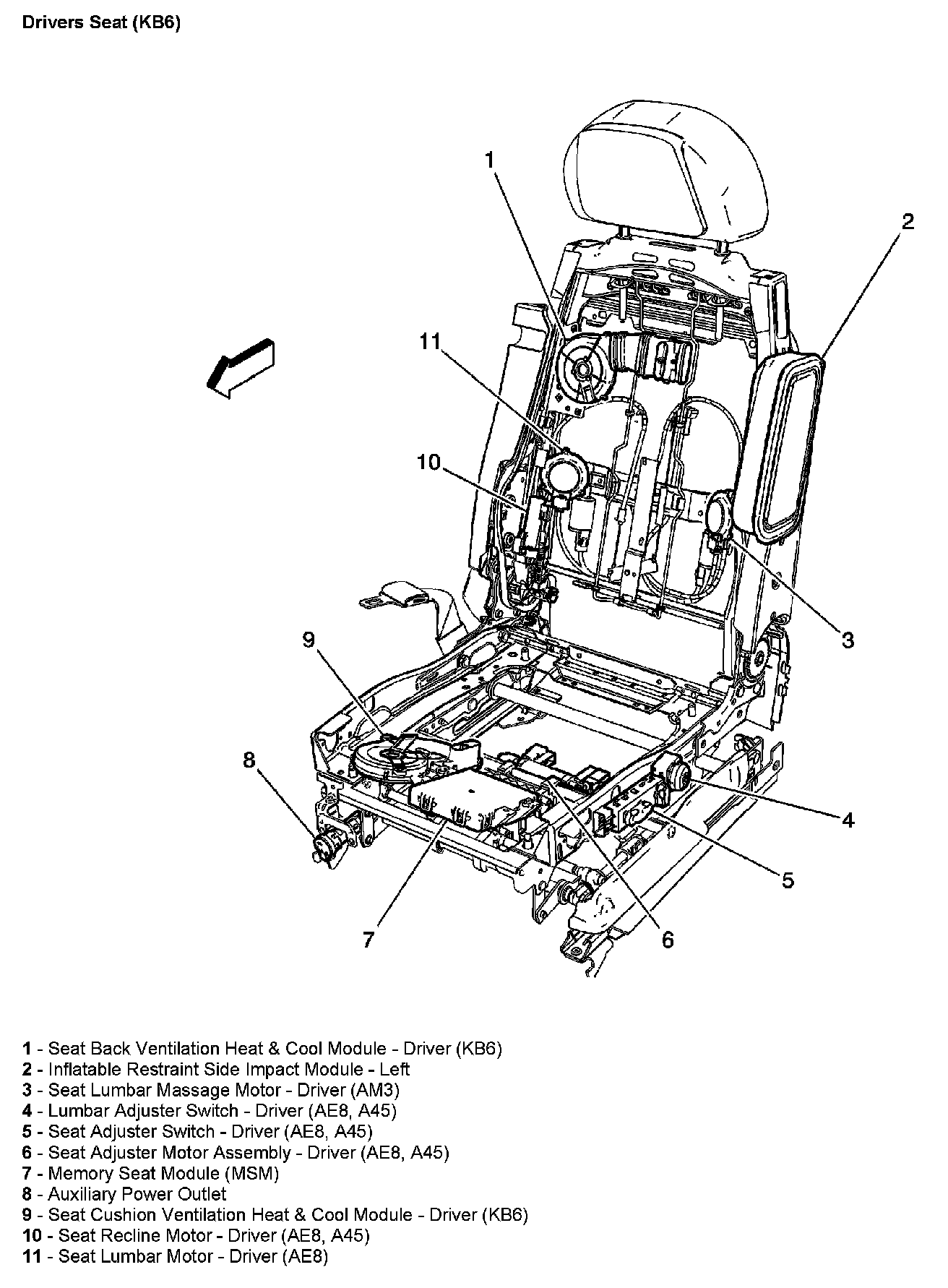

Drivers Seat (With RPO Code KB6):

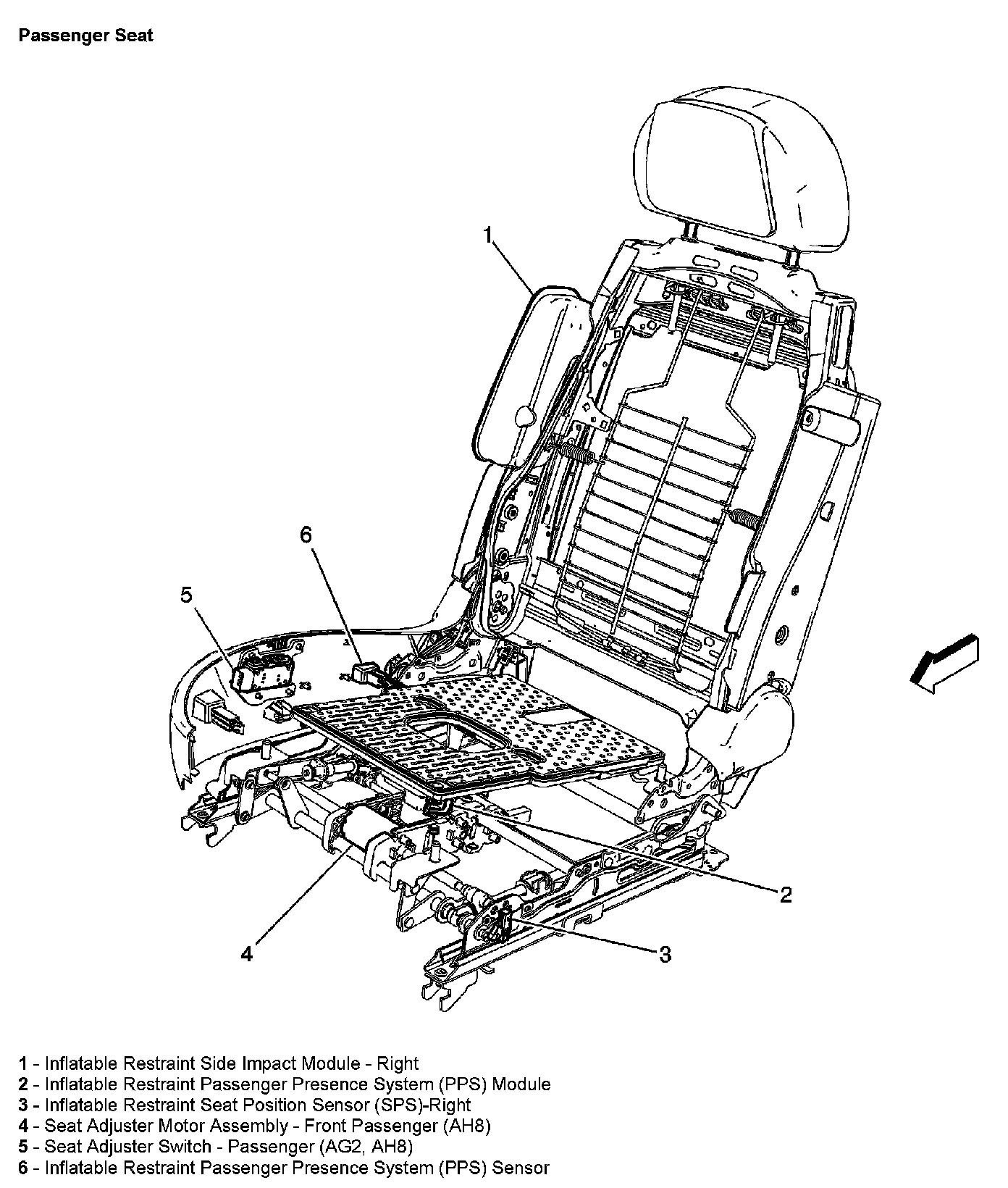

Passenger Seat:

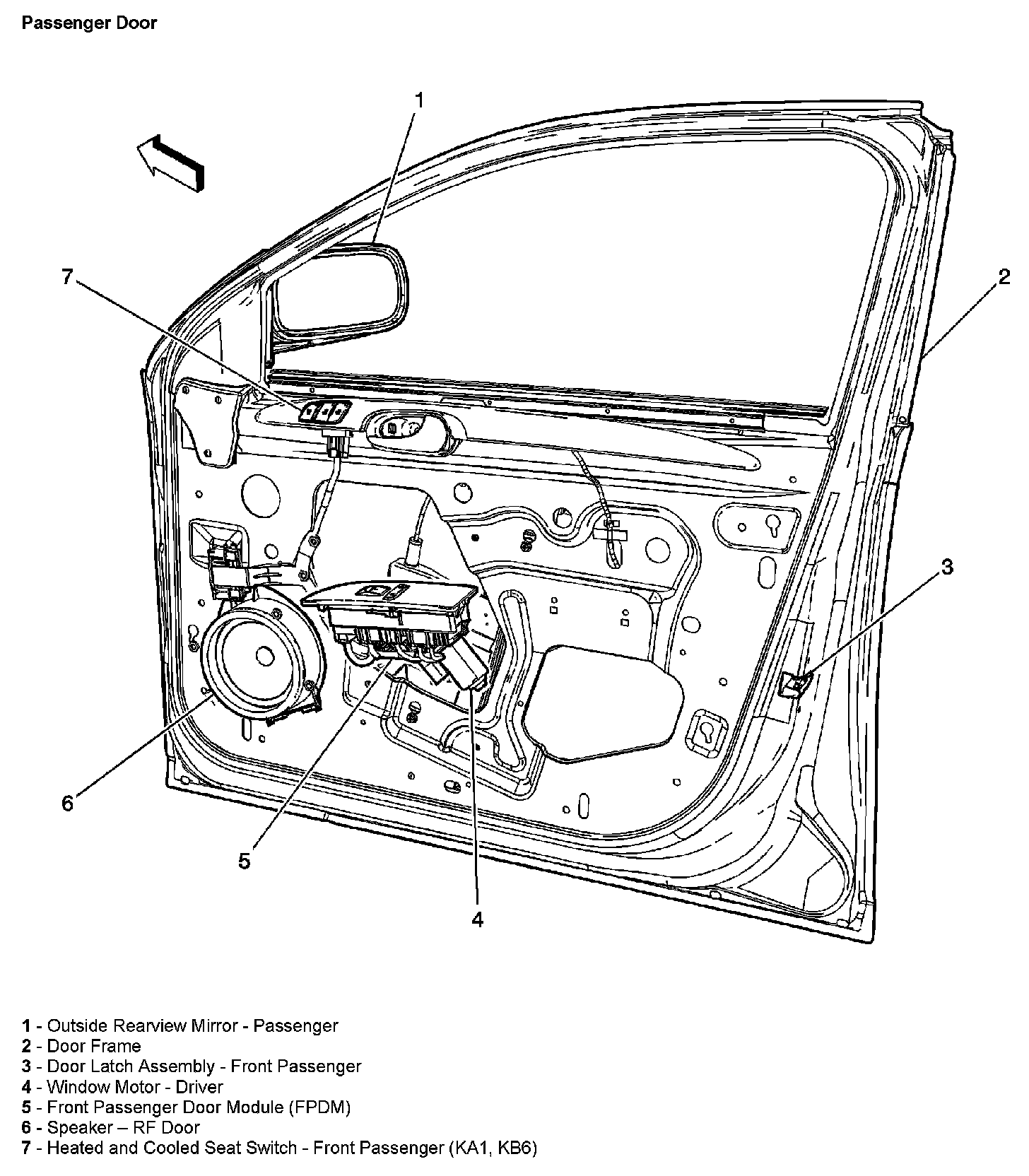

Passenger Door:

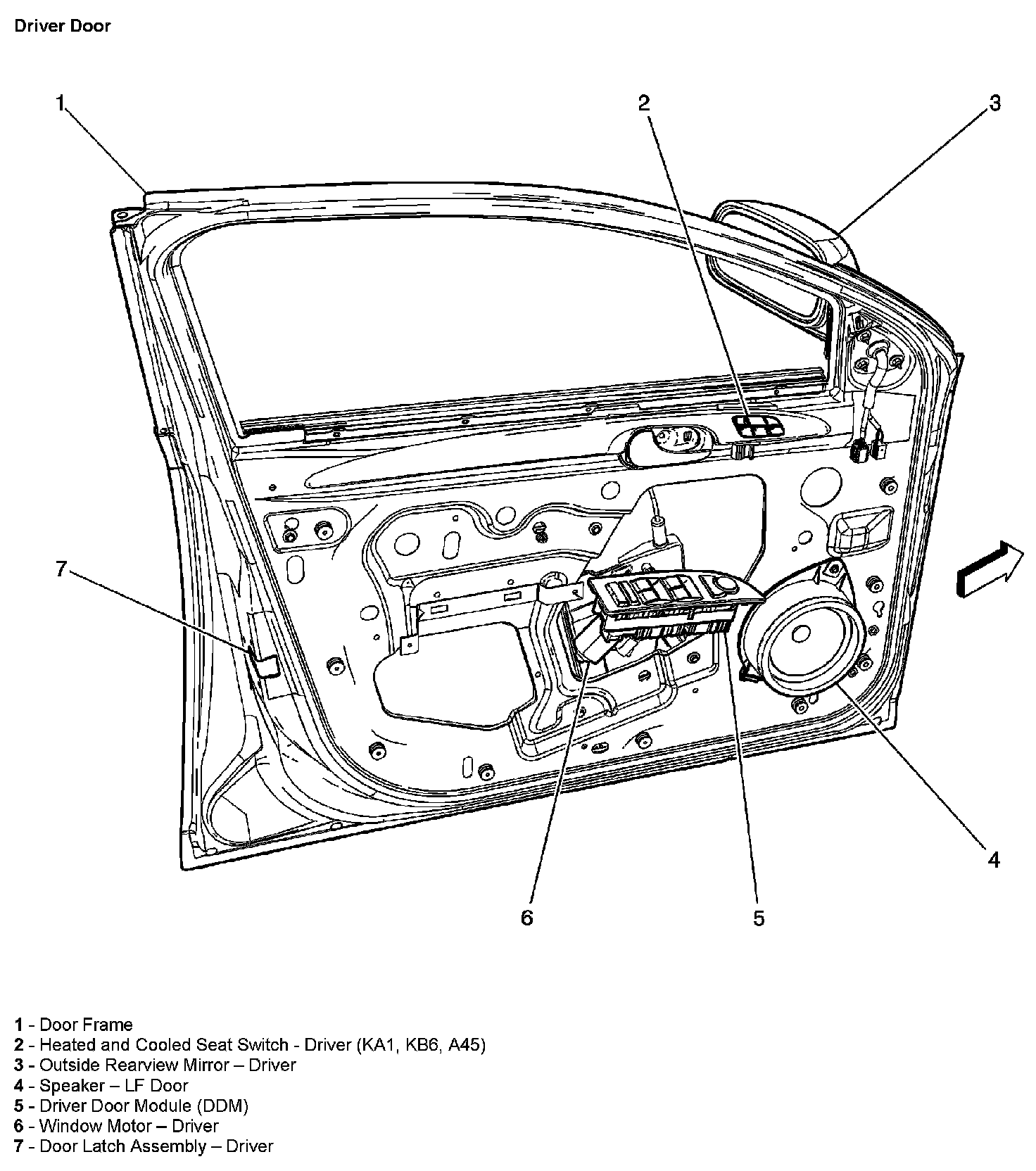

Driver Door:
