Central Control Module: Locations

Entertainment/Communication Component Views

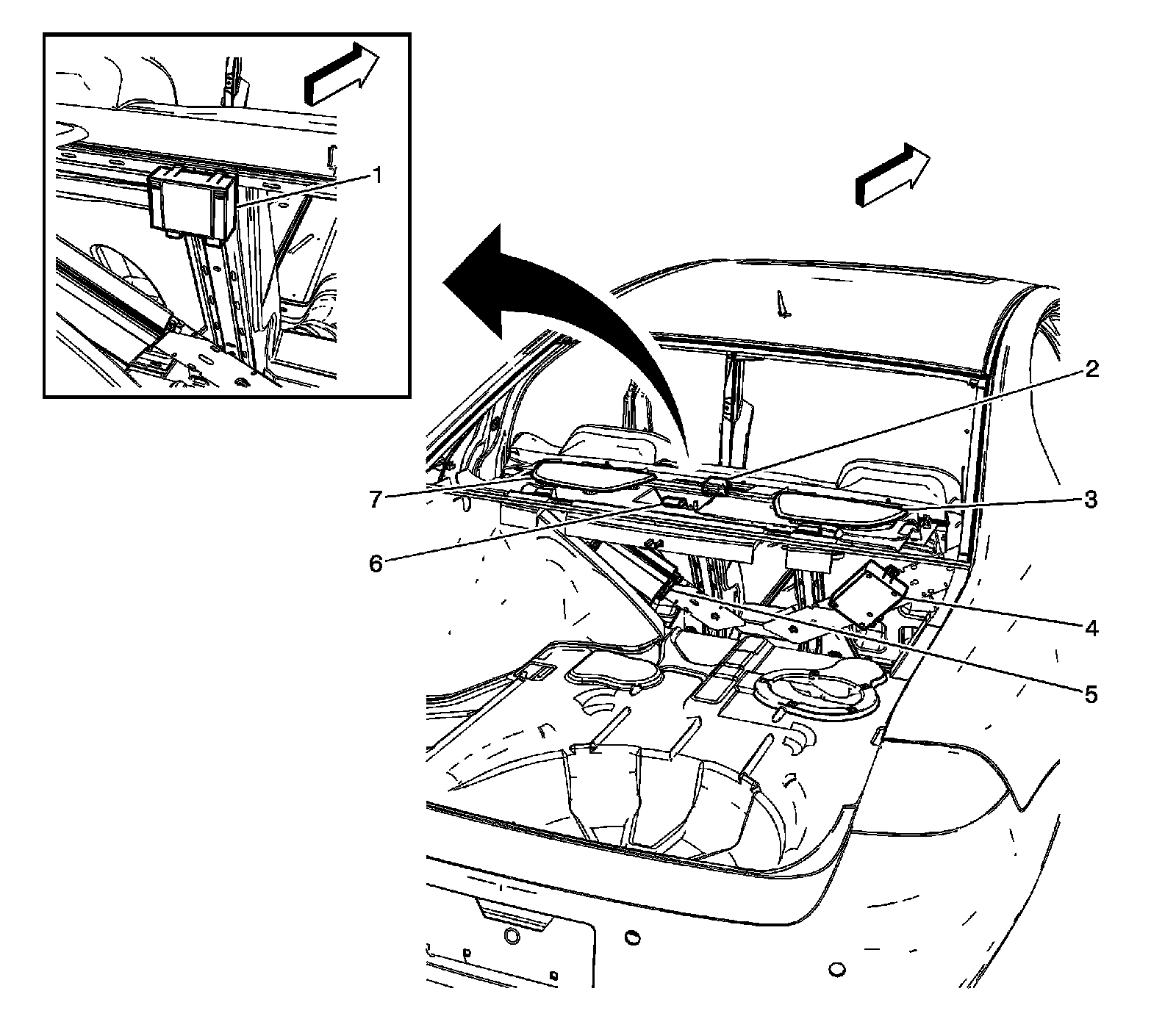

Behind The Rear Seat

1 - Remote Control Door Lock Receiver (RCDLR)
2 - Rear Park Assist Indicator (UD7)
3 - Speaker - RR
4 - Vehicle Communication Interface Module (VCIM) (UE1)
5 - Amplifier (UQA)
6 - Rear Compartment Courtesy Lamp
7 - Speaker - LR
