Installation Procedure

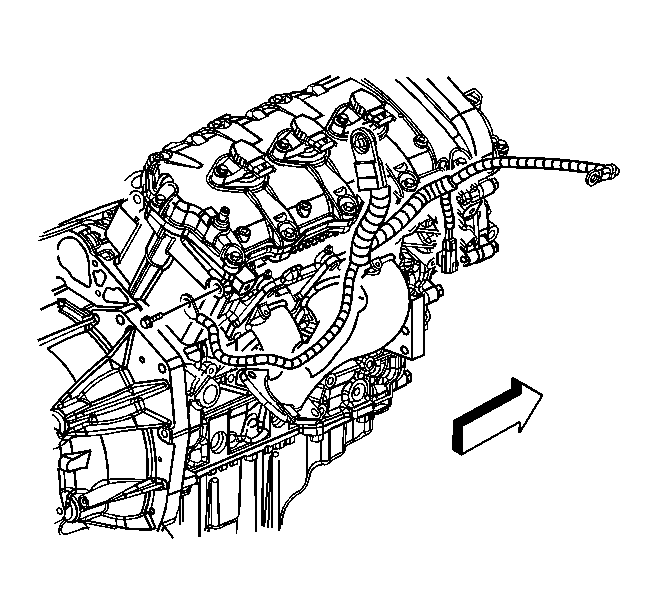

    Fig 1: View Of Battery Negative Cable-To-Engine Block Bolt
    GM887697Courtesy of GENERAL MOTORS CORP.
  1. Position the battery negative cable to the engine.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the battery negative cable to engine bolt.

    Tighten:  Tighten the battery negative cable to engine bolt to 50 N.m (37 lb ft).

    3. Fig 2: View Of Battery Area Mounts And Connectors
    GM772418Courtesy of GENERAL MOTORS CORP.
  3. Install the bolt (1) securing the battery negative cable to the side rail.

    Tighten:  Tighten the battery negative cable to side rail bolt to 36 N.m (27 lb ft).

  4. Connect the body harness connector (3) to the battery negative cable.
  5. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (3.8L)  or Battery Negative Cable Disconnection and Connection (3.6L) .
