Power Sliding Door Module: Diagrams

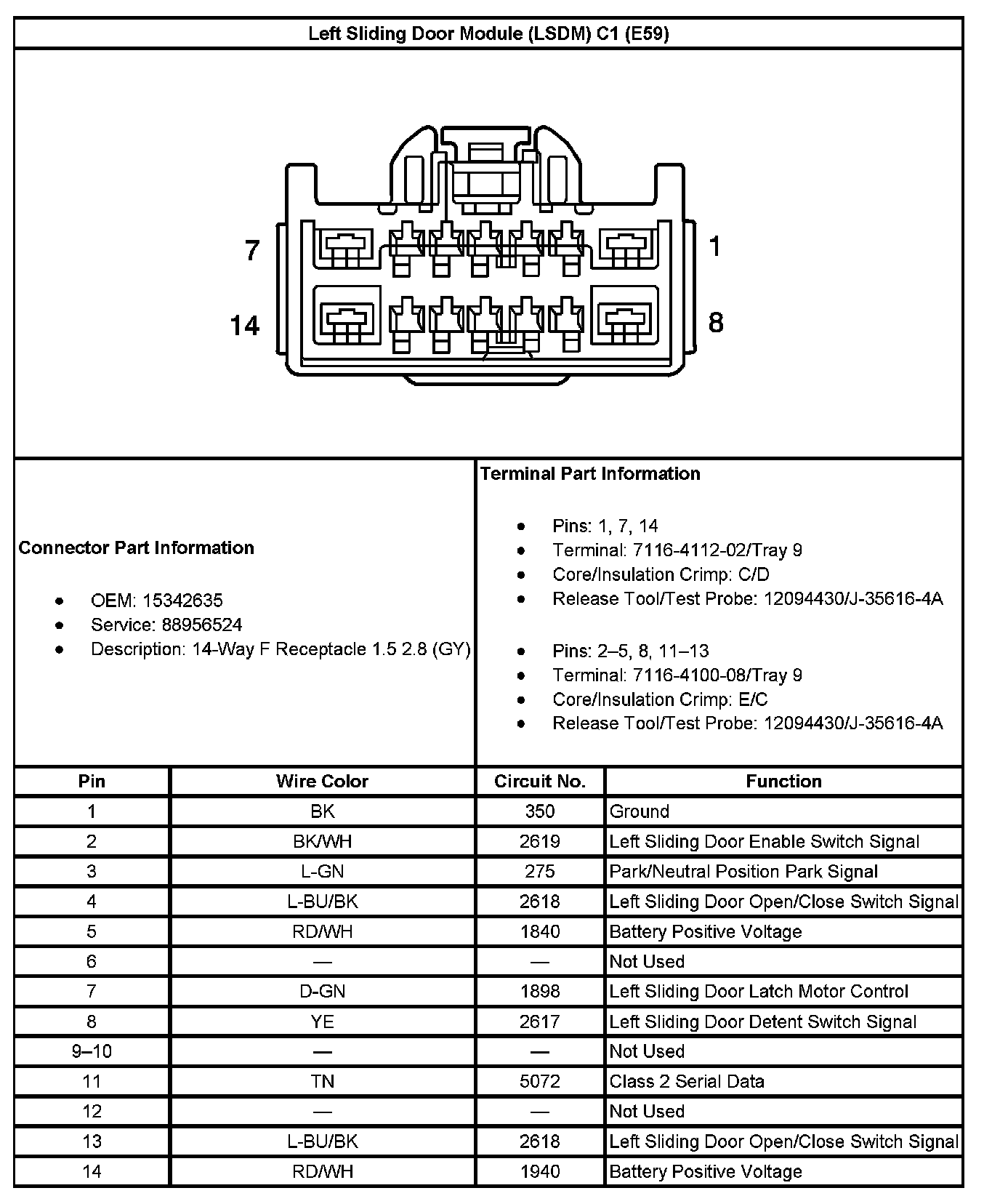

Left Sliding Door Module (LSDM) C1 (With RPO Code E59):

Left Sliding Door Module (LSDM) C2 (With RPO Code E59):

Right Sliding Door Module (RSDM) C1 (With RPO Code E58):

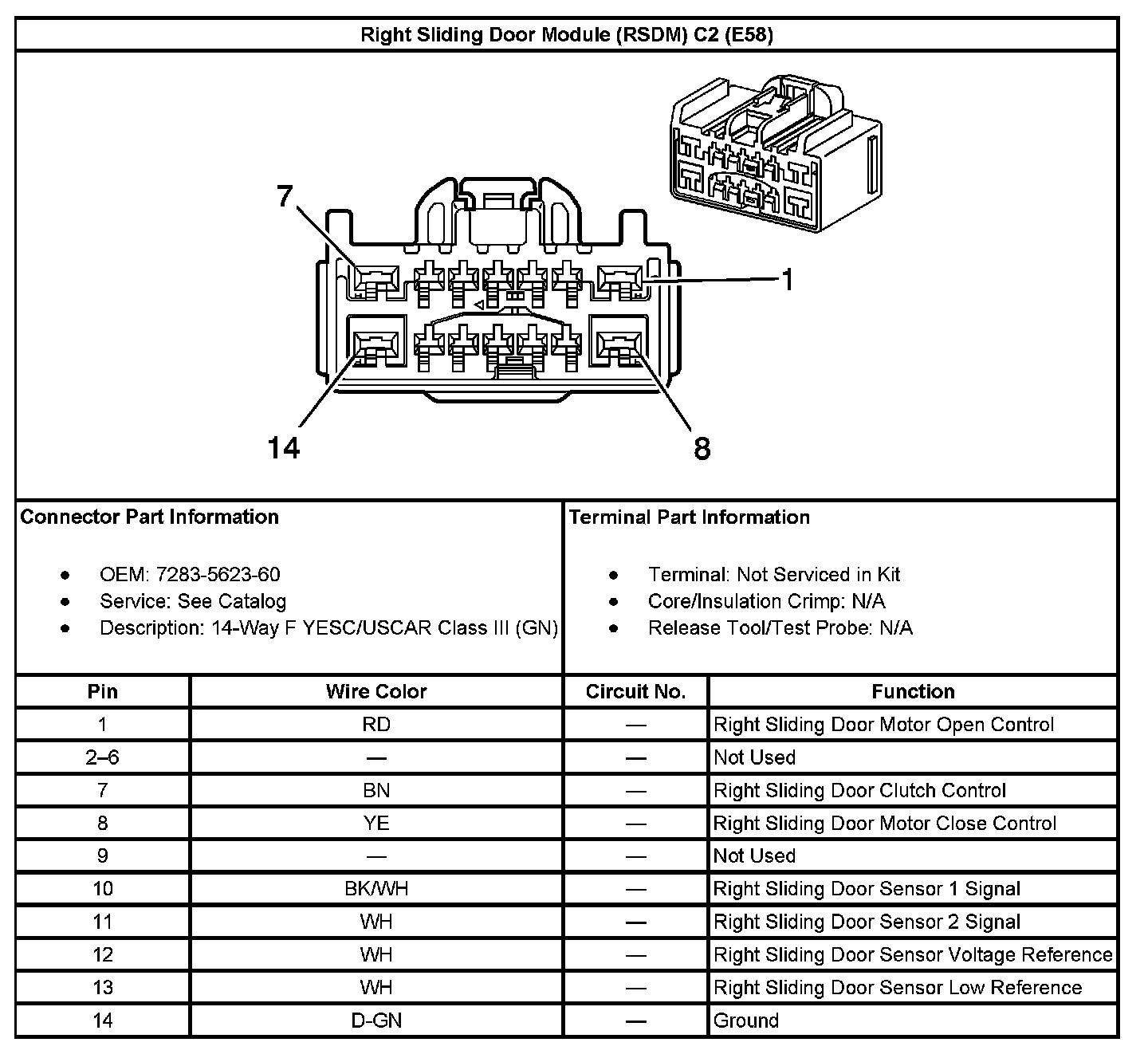

Right Sliding Door Module (RSDM) C2 (With RPO Code E58):
