Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT AIR TEMPERATURE SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Open the support the hood.
2. Remove the lower front bumper fascia.

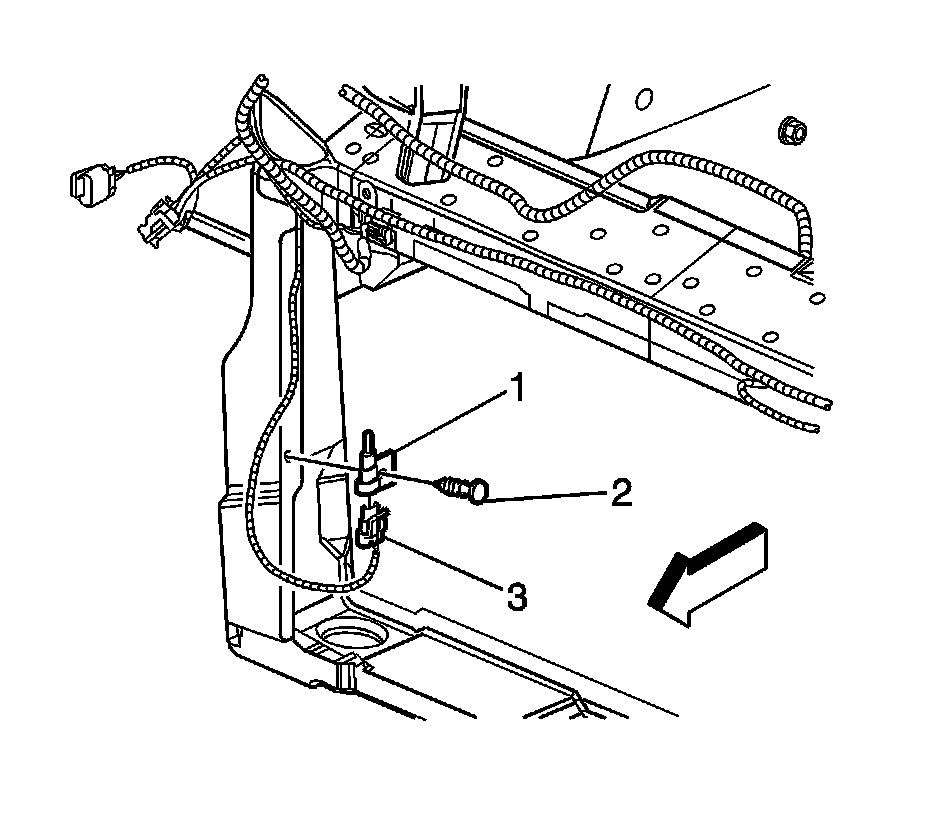

3. Disconnect the electrical connector (3).
4. Remove the retainer (2) and discard.
5. Remove the ambient temperature sensor (1) from the radiator support.

INSTALLATION PROCEDURE




1. Connect the electrical connector (3) to the ambient temperature sensor (1).
2. Position the sensor to the radiator support and install a NEW retainer (2).
3. Install the lower front bumper fascia.
4. Close the hood.
