Connector Views

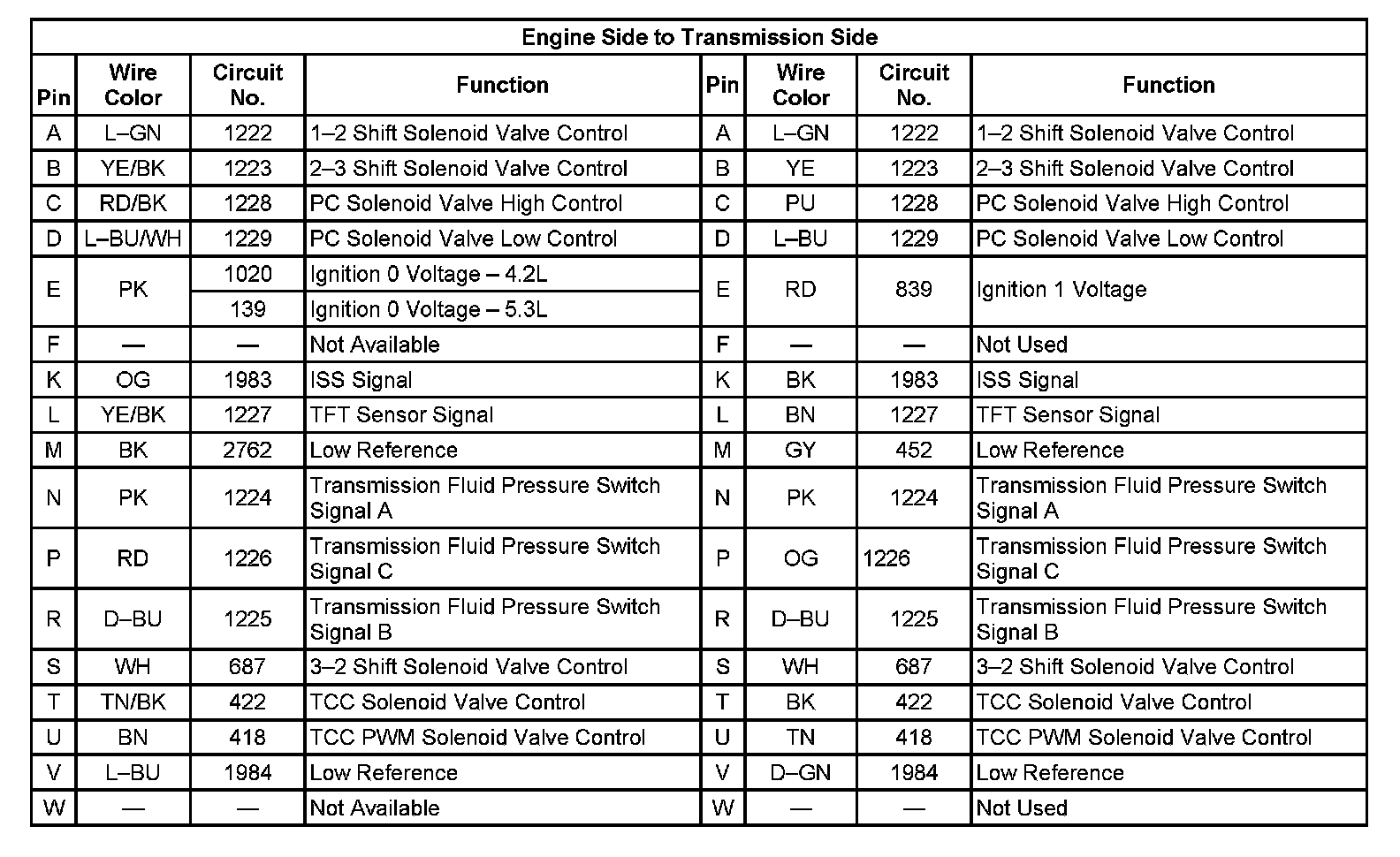

Automatic Transmission Inline 20-Way Connector End View







Engine Side to Transmission Side:
