Electronic Brake Control Module: Locations

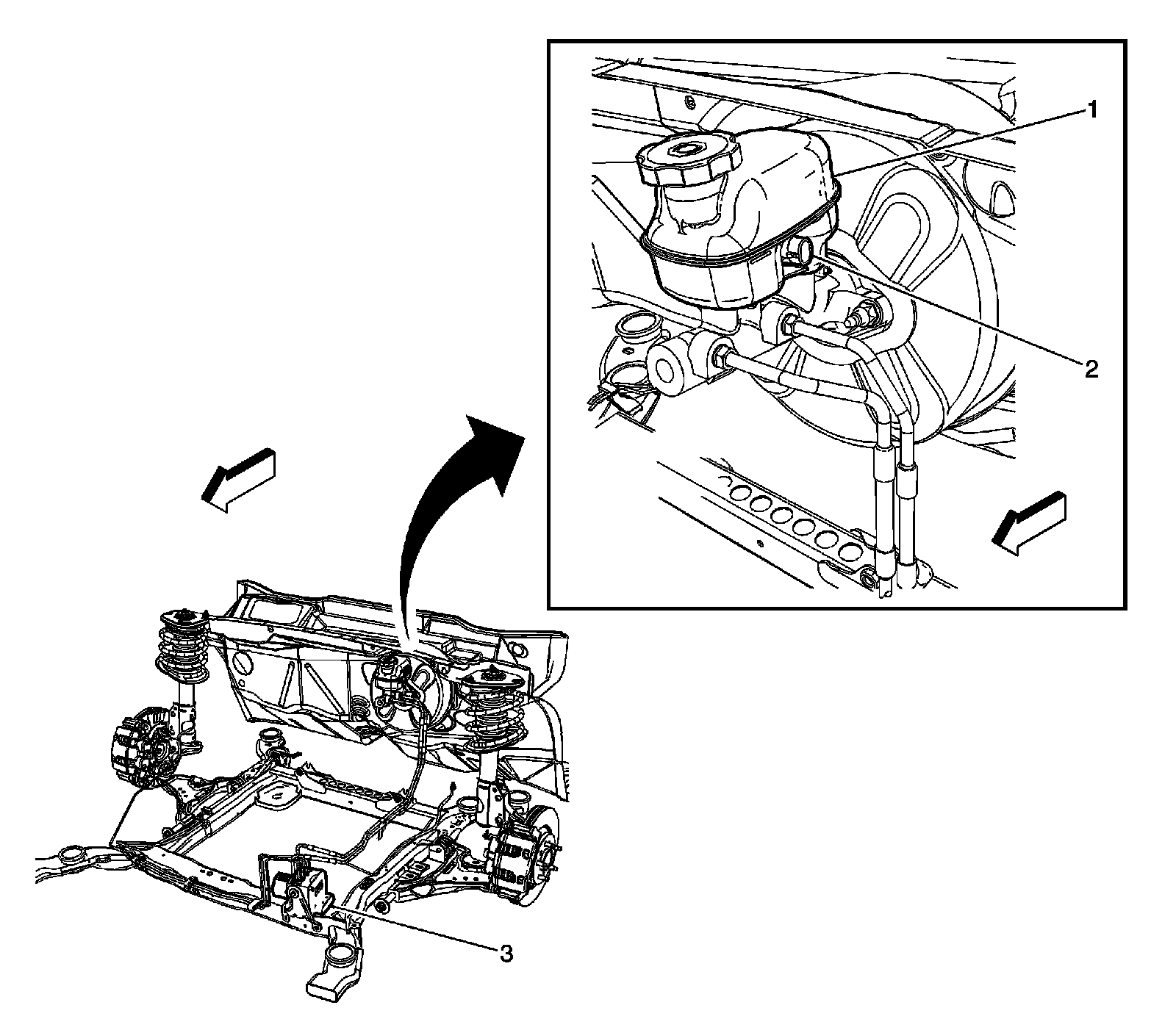

Hydraulic Brake Component Views

Left Rear of Engine Compartment:





1 - Master Cylinder Reservoir
2 - Brake Fluid Level Switch
3 - Electronic Brake Control Module (EBCM)
