Fuse Block Label

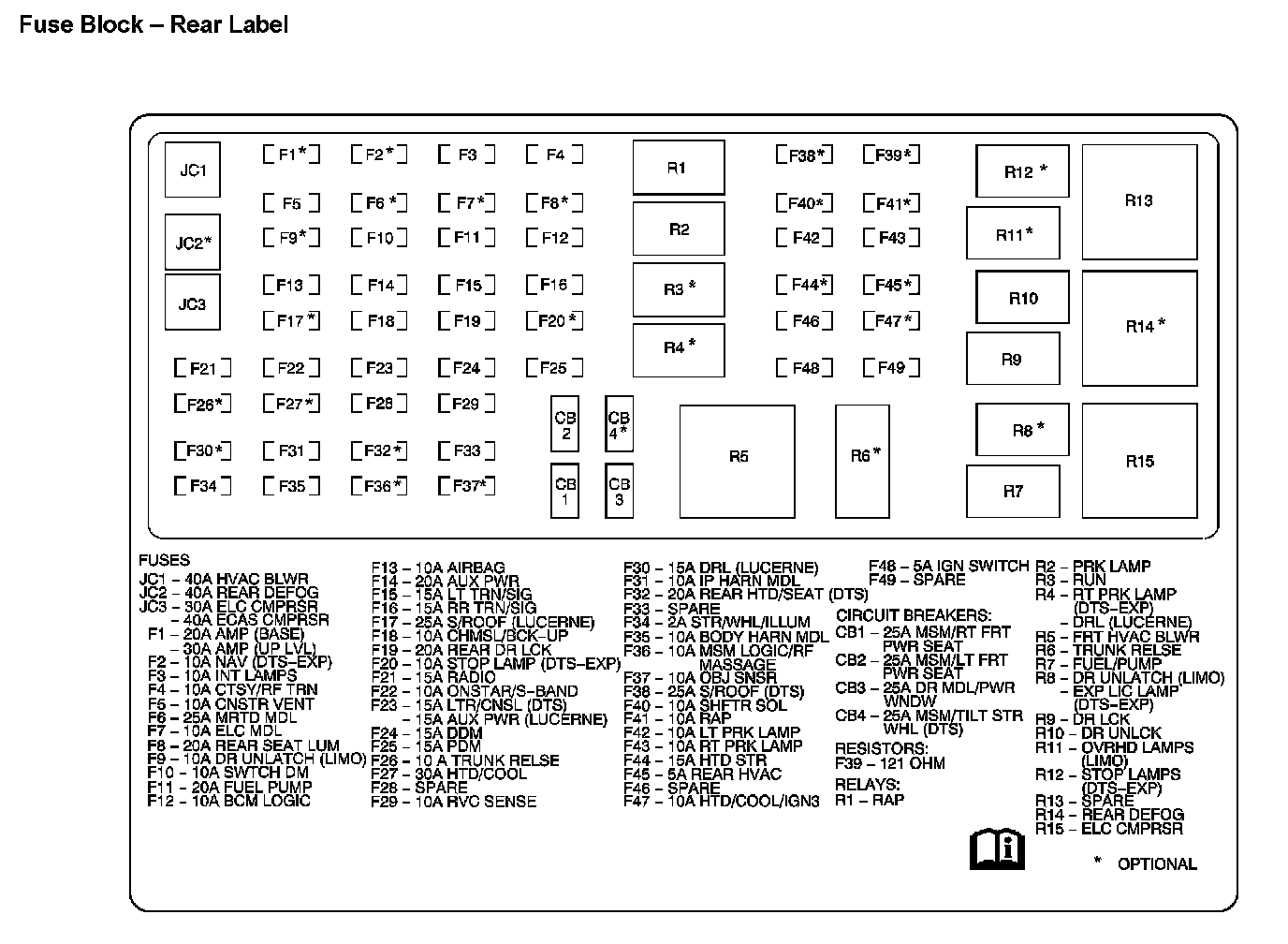

Location View:

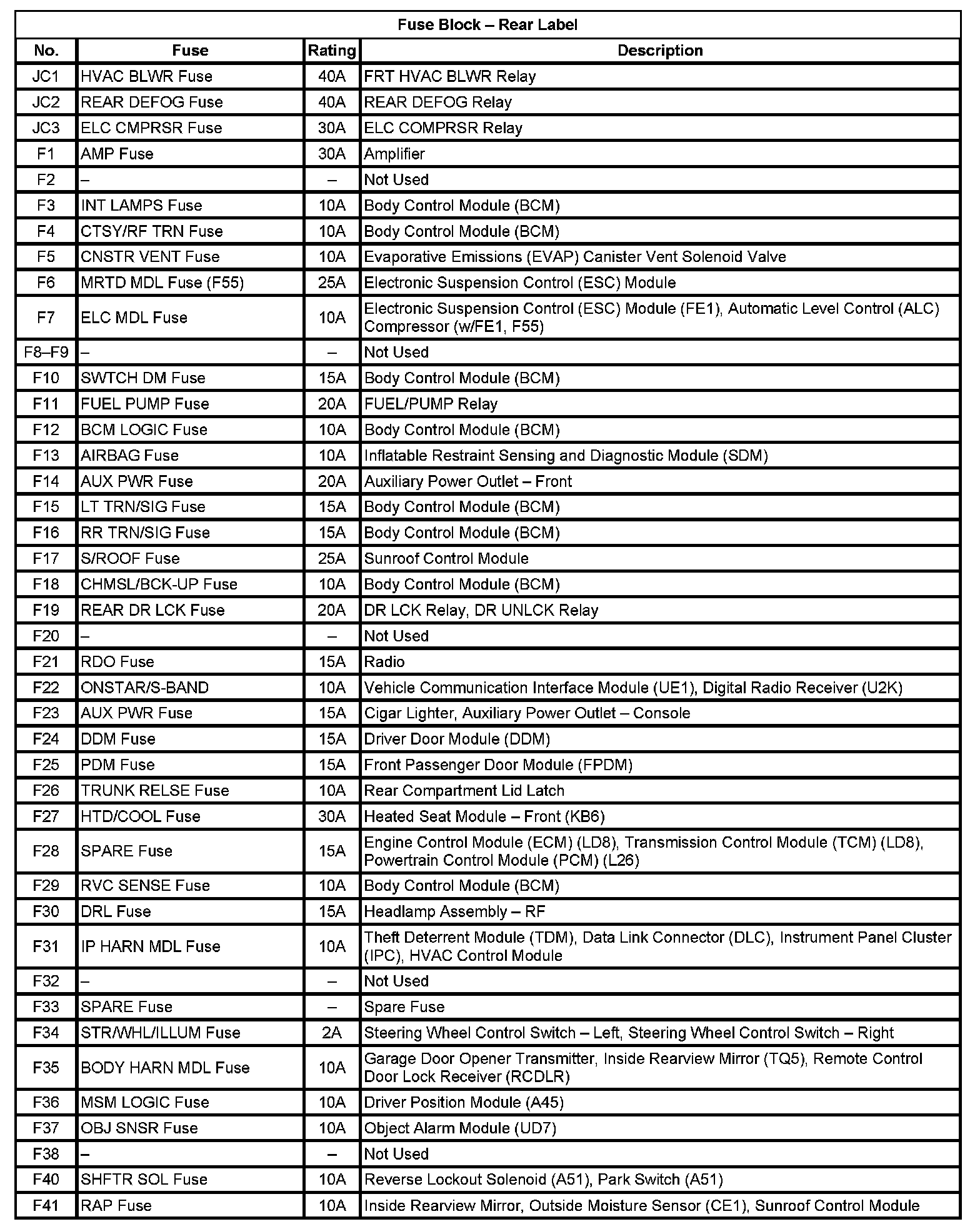

Application Table (Part 1):

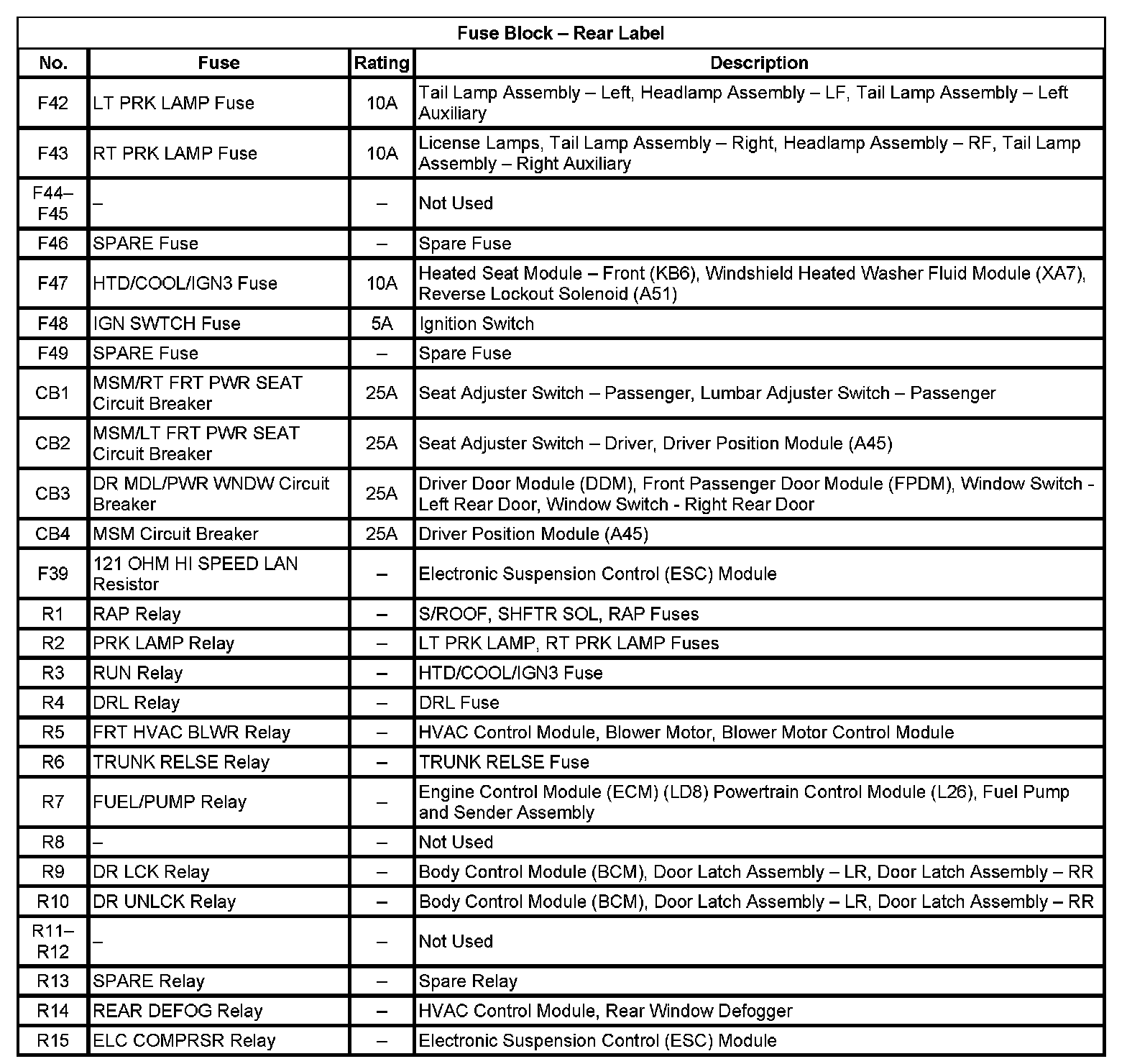

Application Table (Part 2):

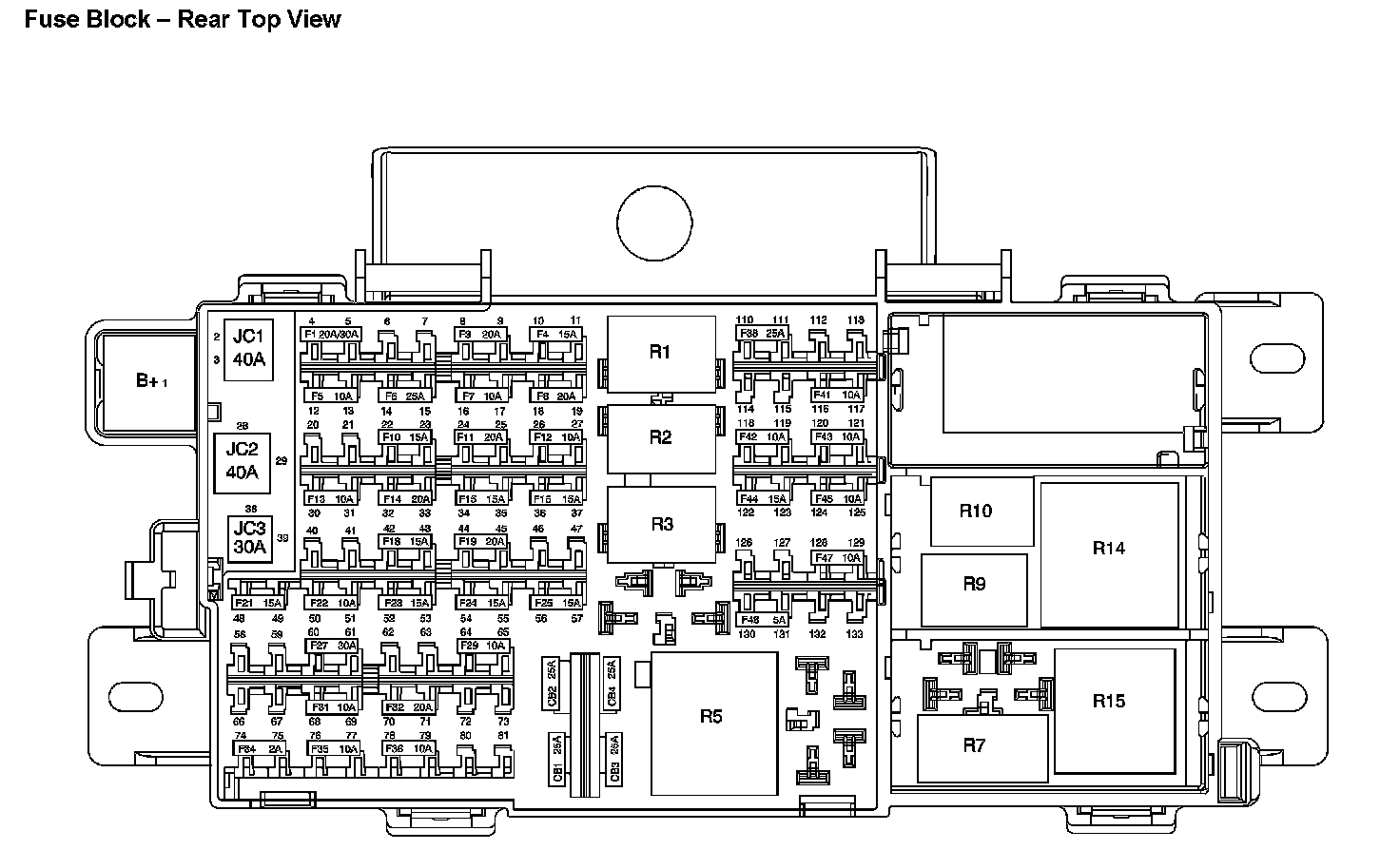

Location View (Part 1):

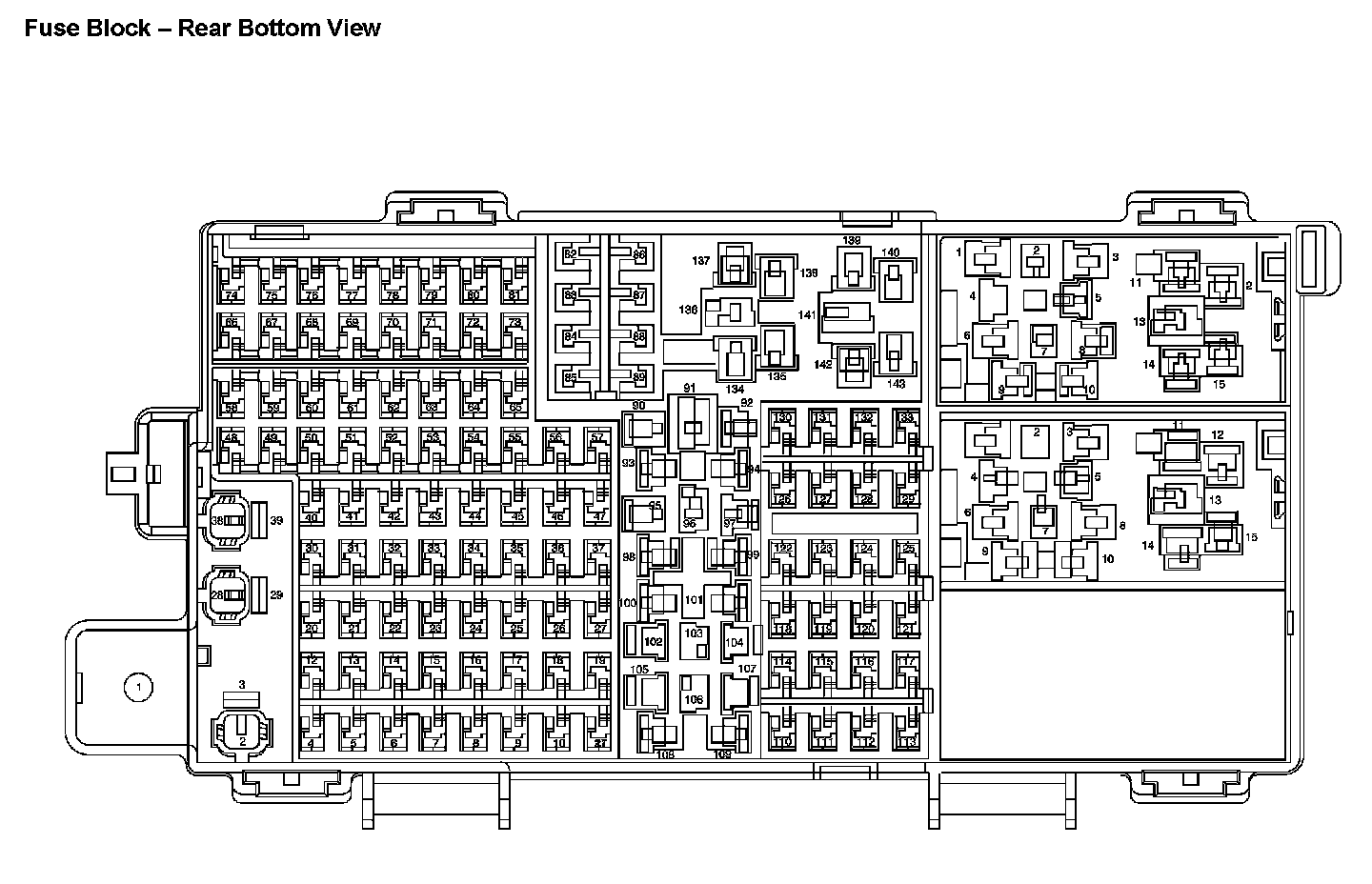

Location View (Part 2):
