Seat Temperature Control Module

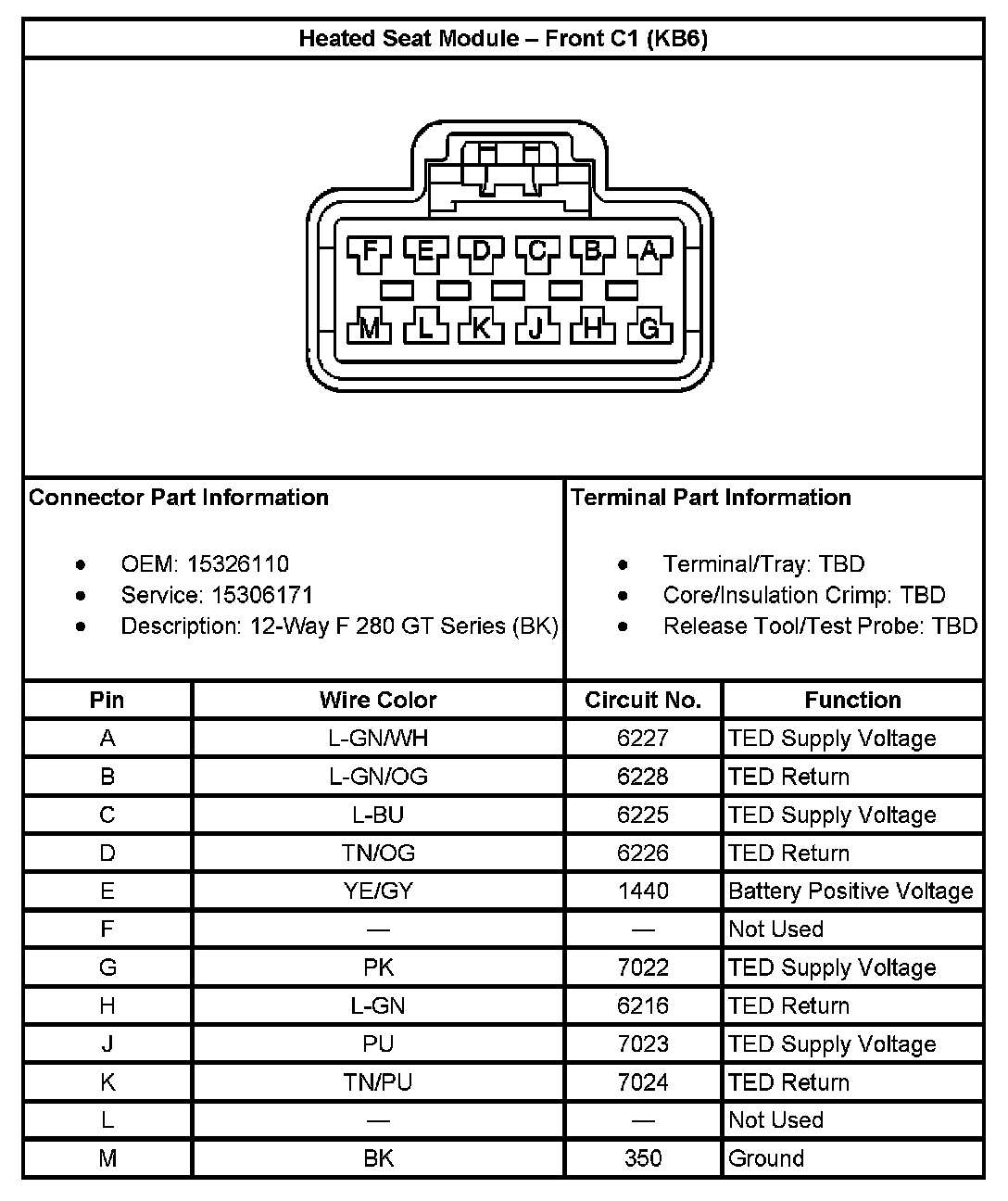

Heated Seat Module - Front C1 (With RPO Code KB6):

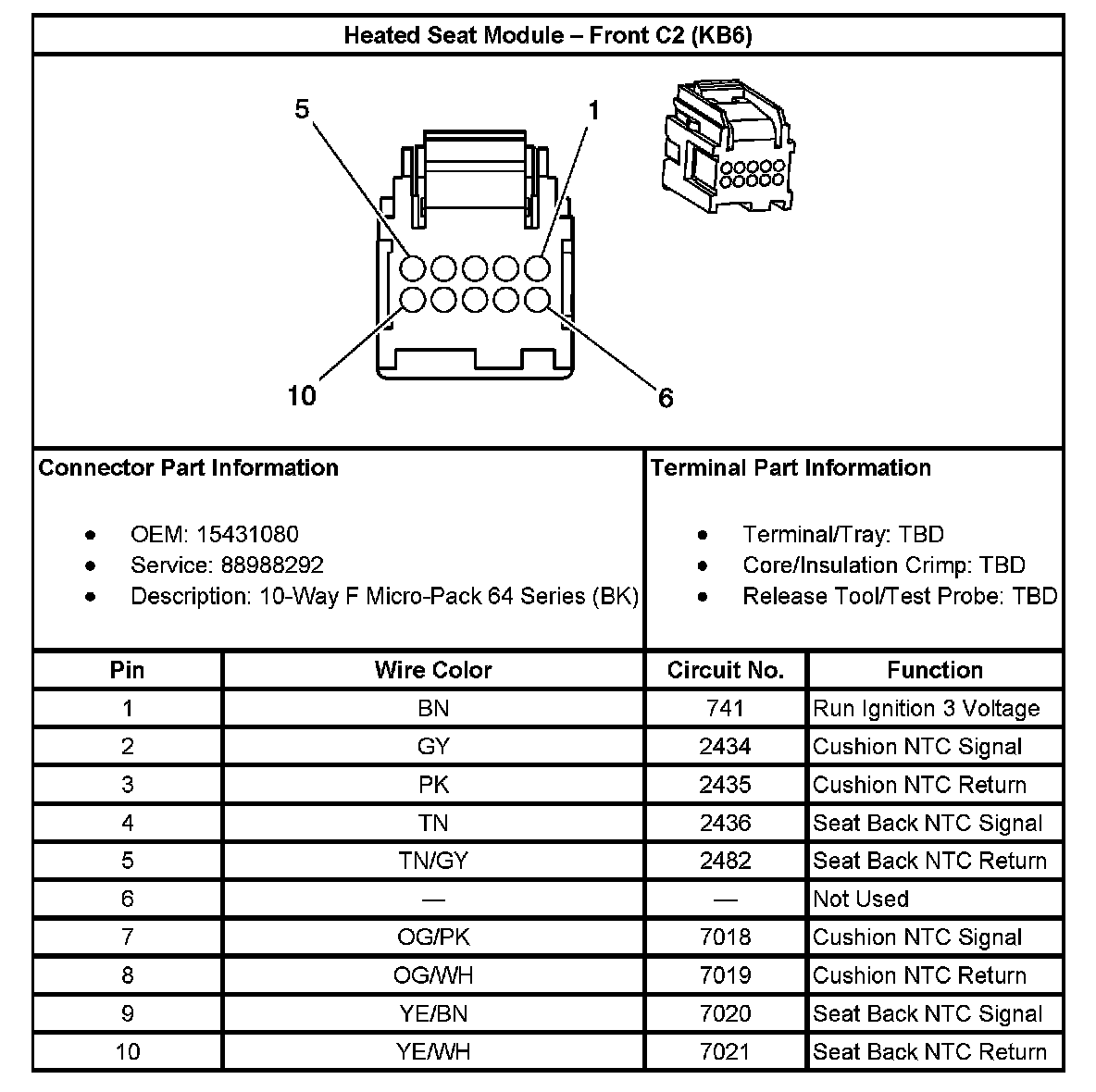

Heated Seat Module - Front C2 (With RPO Code KB6):

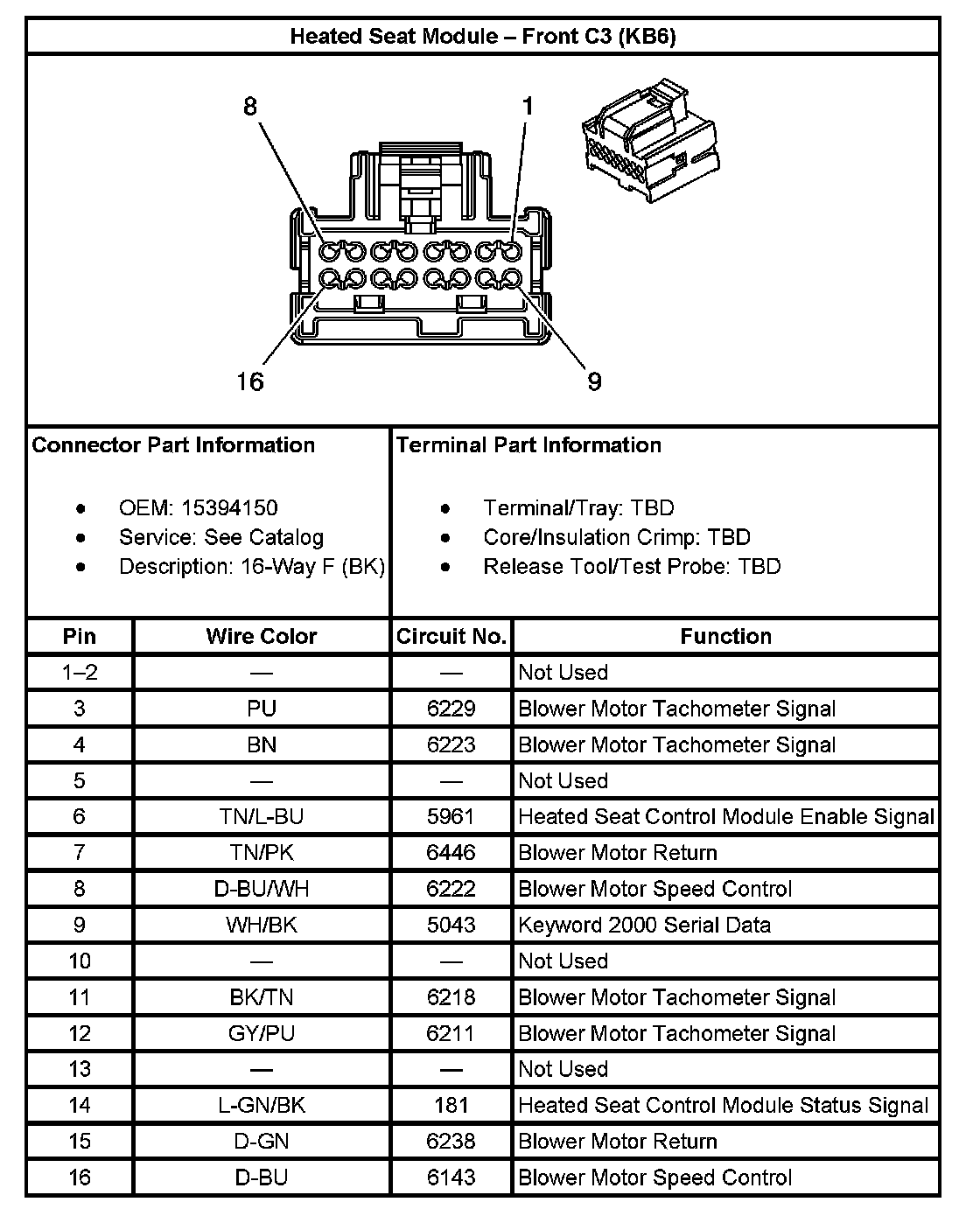

Heated Seat Module - Front C3 (With RPO Code KB6):
