Global Positioning System Module

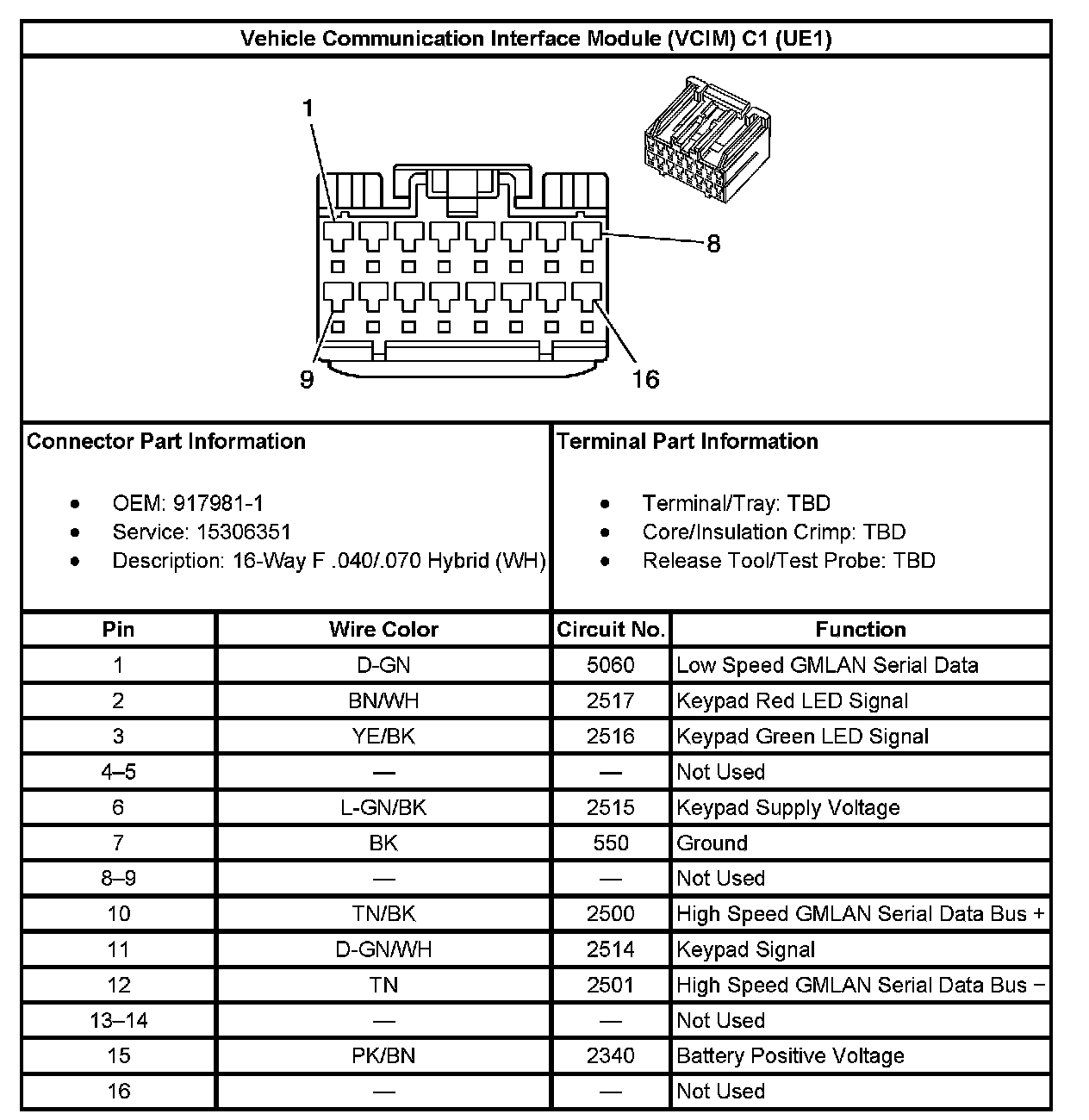

Vehicle Communication Interface Module (VCIM) C1 (With RPO Code UE1):

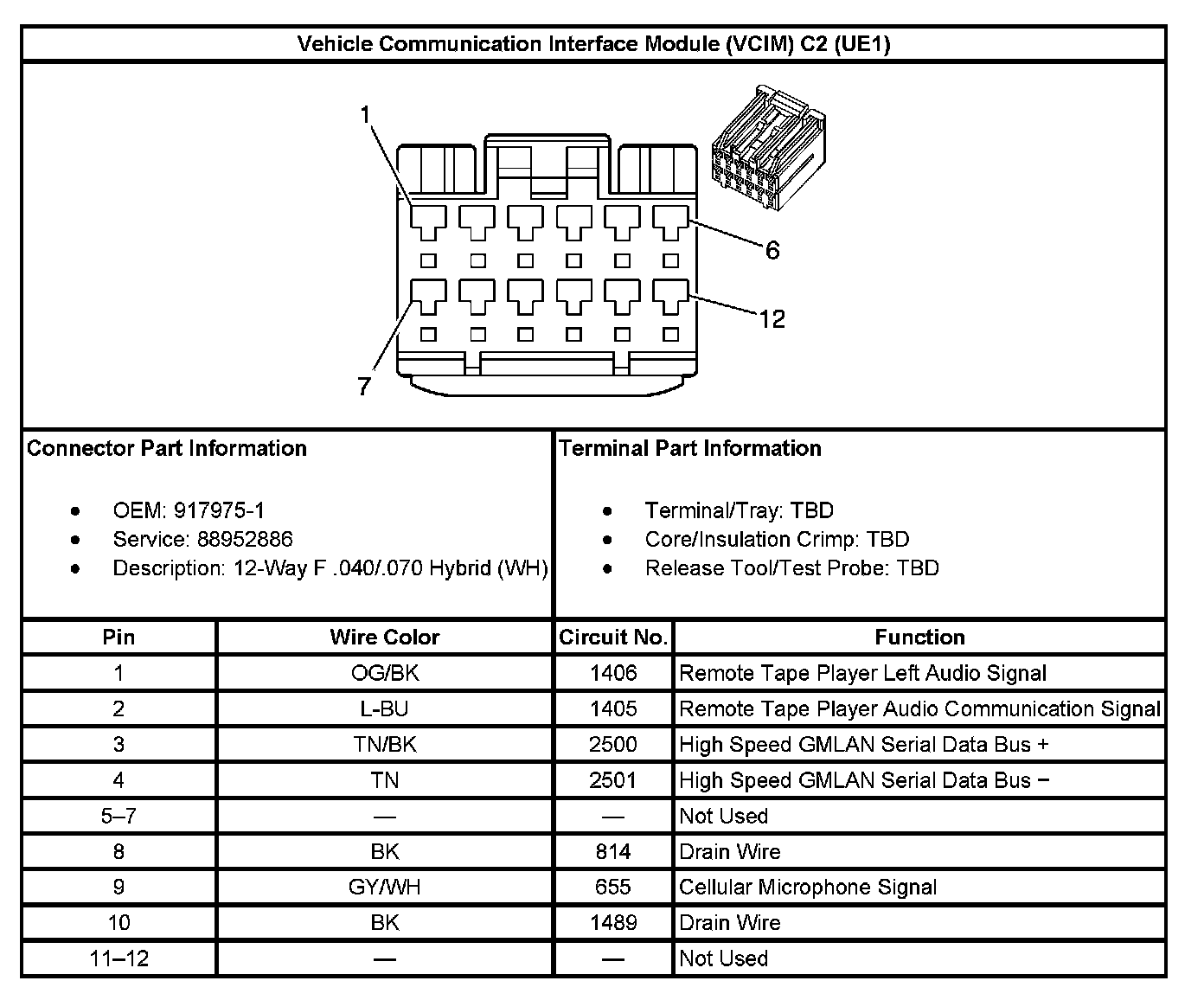

Vehicle Communication Interface Module (VCIM) C2 (With RPO Code UE1):



Vehicle Communication Interface Module (VCIM) C3 (With RPO Code UE1):
