Installation Procedure

    Fig 1: Removing/Installing Power Steering Pump Mounting Bolts
    GM464479Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering pump to the engine.
    2. NOTE: Refer to Fastener Notice .
  2. Install the power steering pump retaining bolts.

    Tighten:  Tighten the power steering pump retaining bolts to 25 N.m (18 lb ft).

  3. Install the coolant recovery reservoir. Refer to Coolant Recovery Reservoir Replacement .
  4. Raise the vehicle.
  5. Connect the wiring harness to the power steering pump.

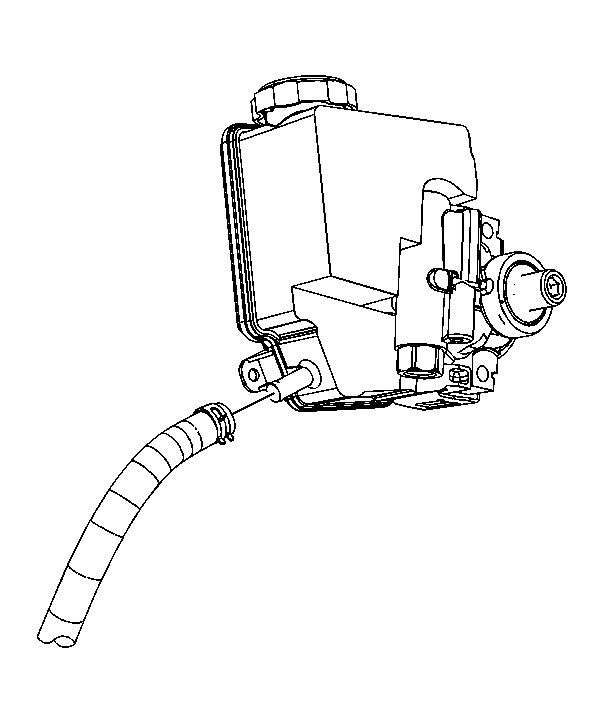

    6. Fig 2: Identifying Power Steering Return Hose
    GM1740182Courtesy of GENERAL MOTORS CORP.
  6. Compress the clamp and connect the power steering return hose to the power steering pump.

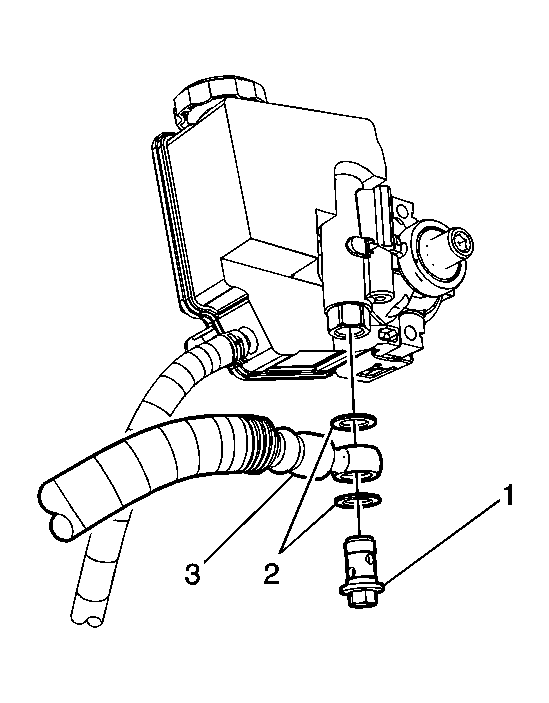

    7. Fig 3: Identifying Steering Pump Flow Control Valve
    GM1739689Courtesy of GENERAL MOTORS CORP.
  7. Position the power steering pressure hose (3) to the power steering pump with the 2 NEW washers (2) and install the banjo bolt (1).

    Tighten:  Tighten the power steering pressure hose banjo bolt to 55 N.m (41 lb ft).

  8. Lower the vehicle.
  9. Install the drive belt. Refer to Drive Belt Replacement .
  10. Bleed the power steering system. Refer to Power Steering System Bleeding .
  11. Inspect the power steering system for leaks.
