Oxygen Sensor: Locations

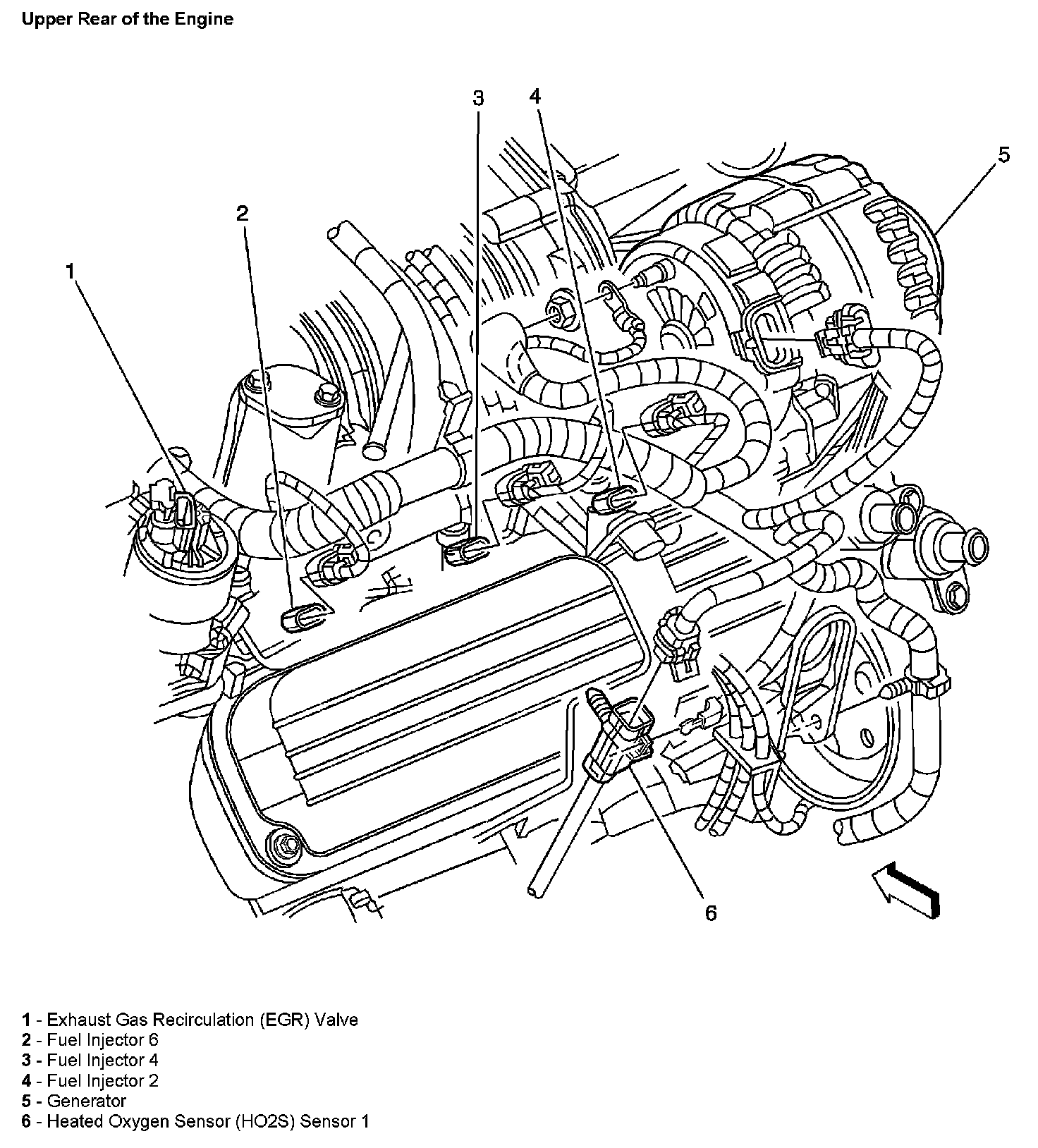

Upper Rear Of The Engine:

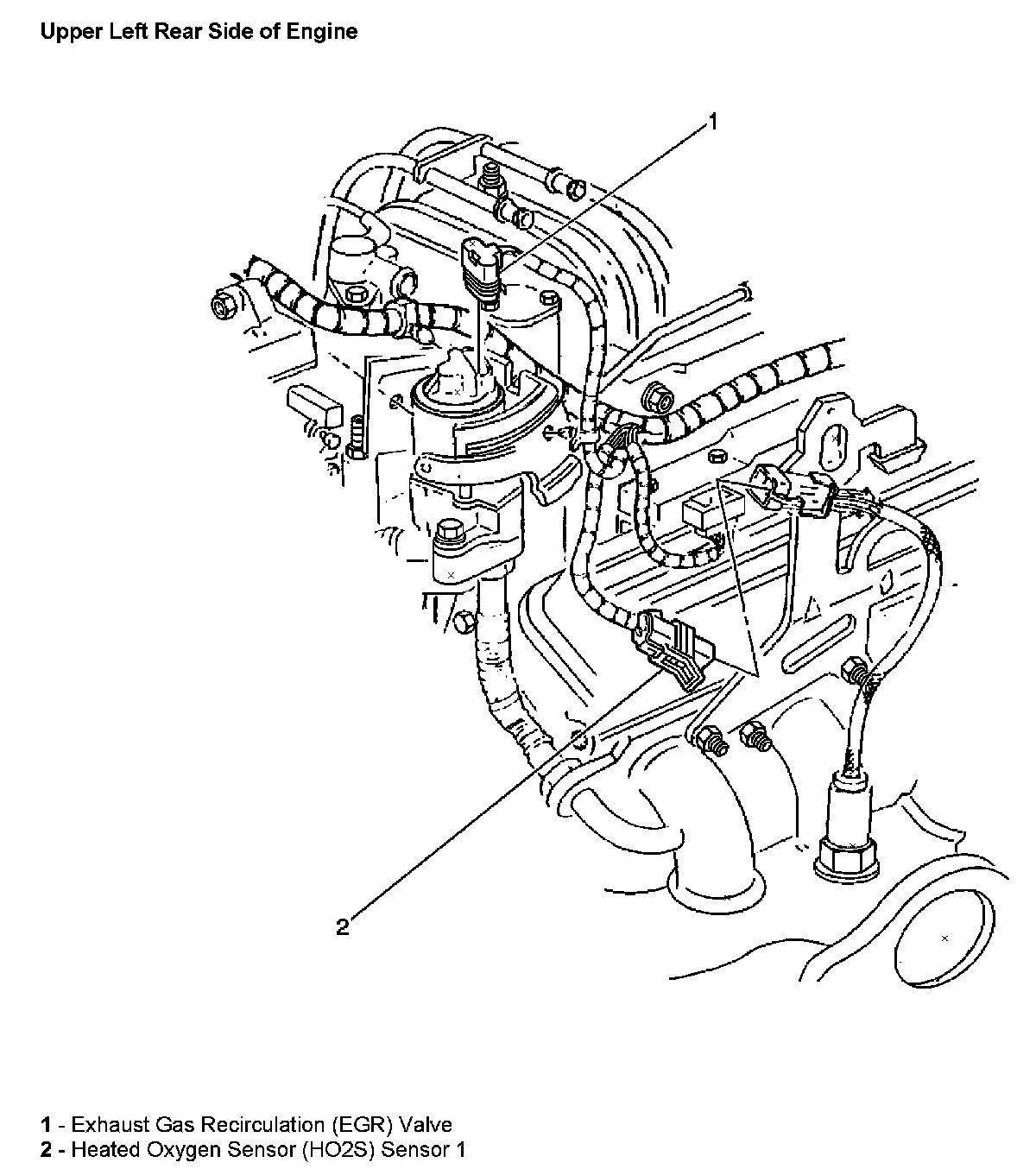

Upper Left Rear Side Of Engine:

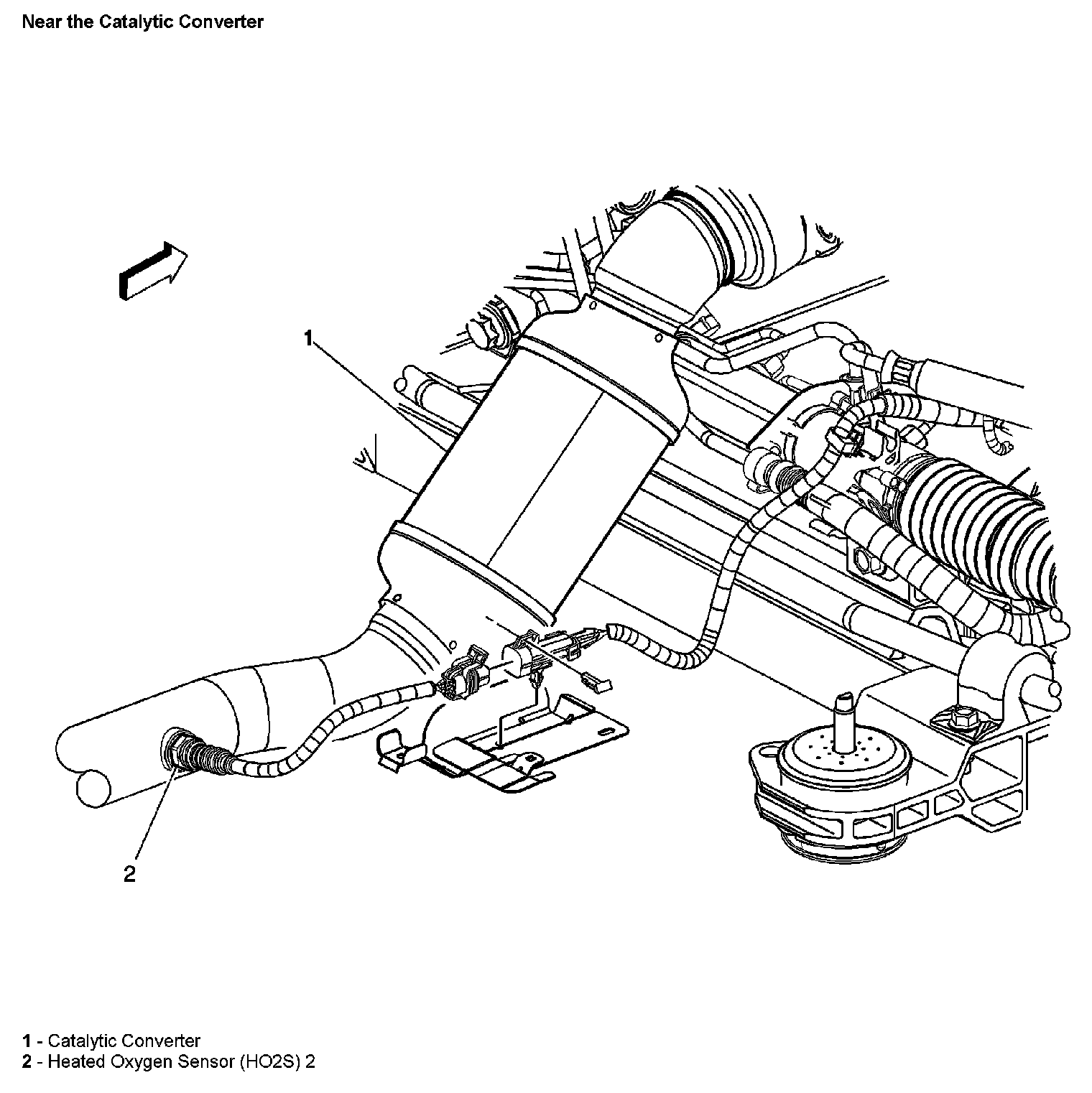

Near The Catalytic Converter:



Rear Of The Engine:



Left Side Of The Engine:
