Amplifier, Sound System

Audio Amplifier C1 (With RPO Code U88):

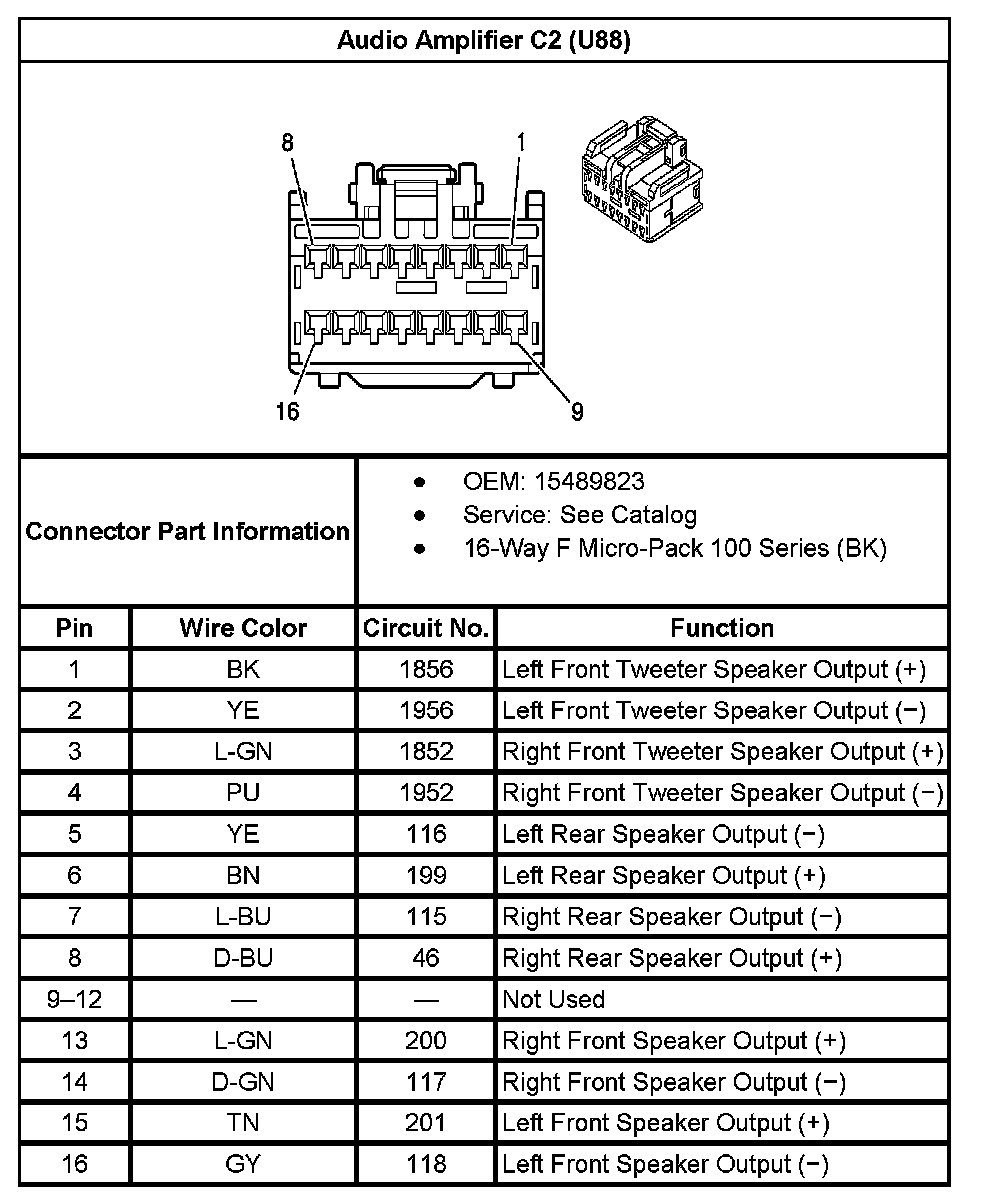

Audio Amplifier C2 (With RPO Code U88):

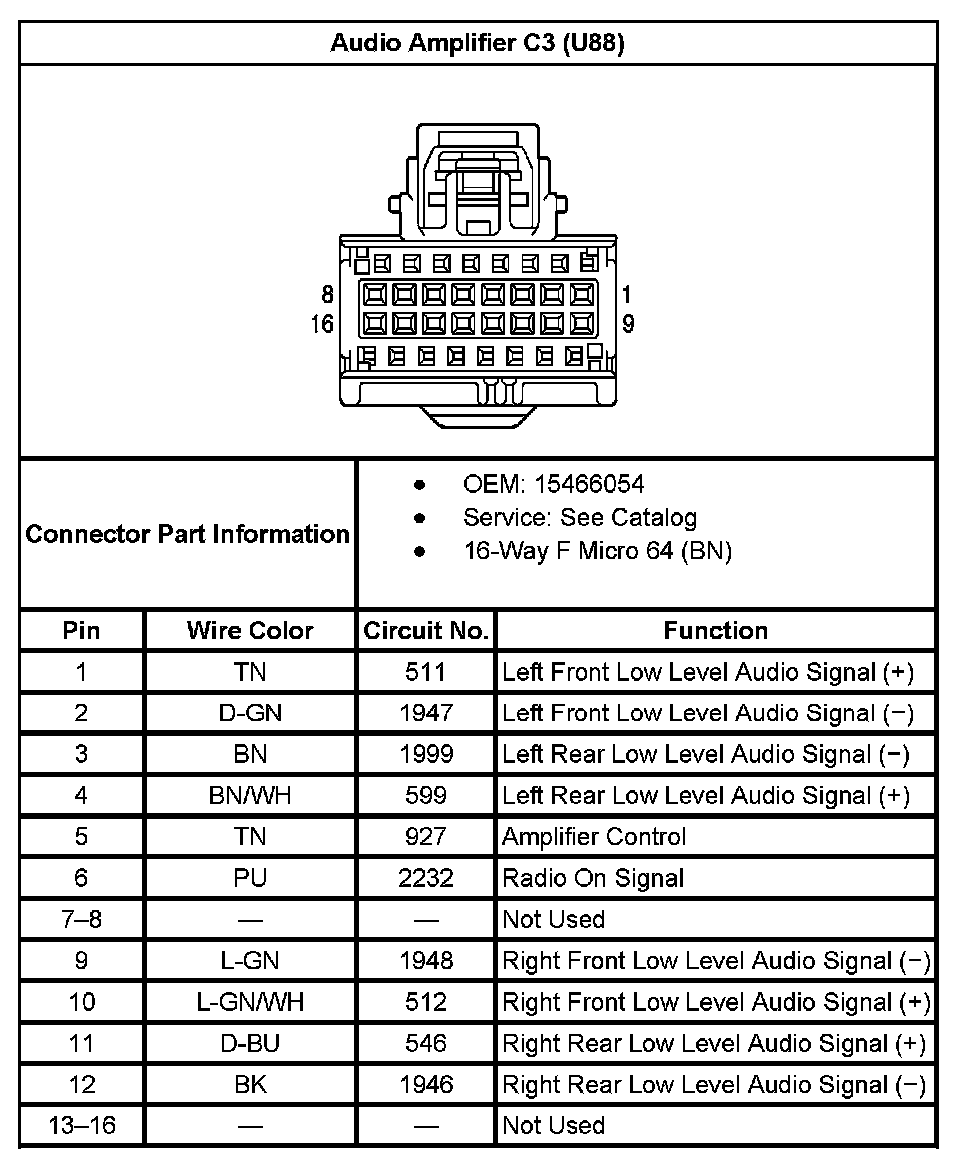

Audio Amplifier C3 (With RPO Code U88):
