Scan Tool Data List



Scan Tool Data List

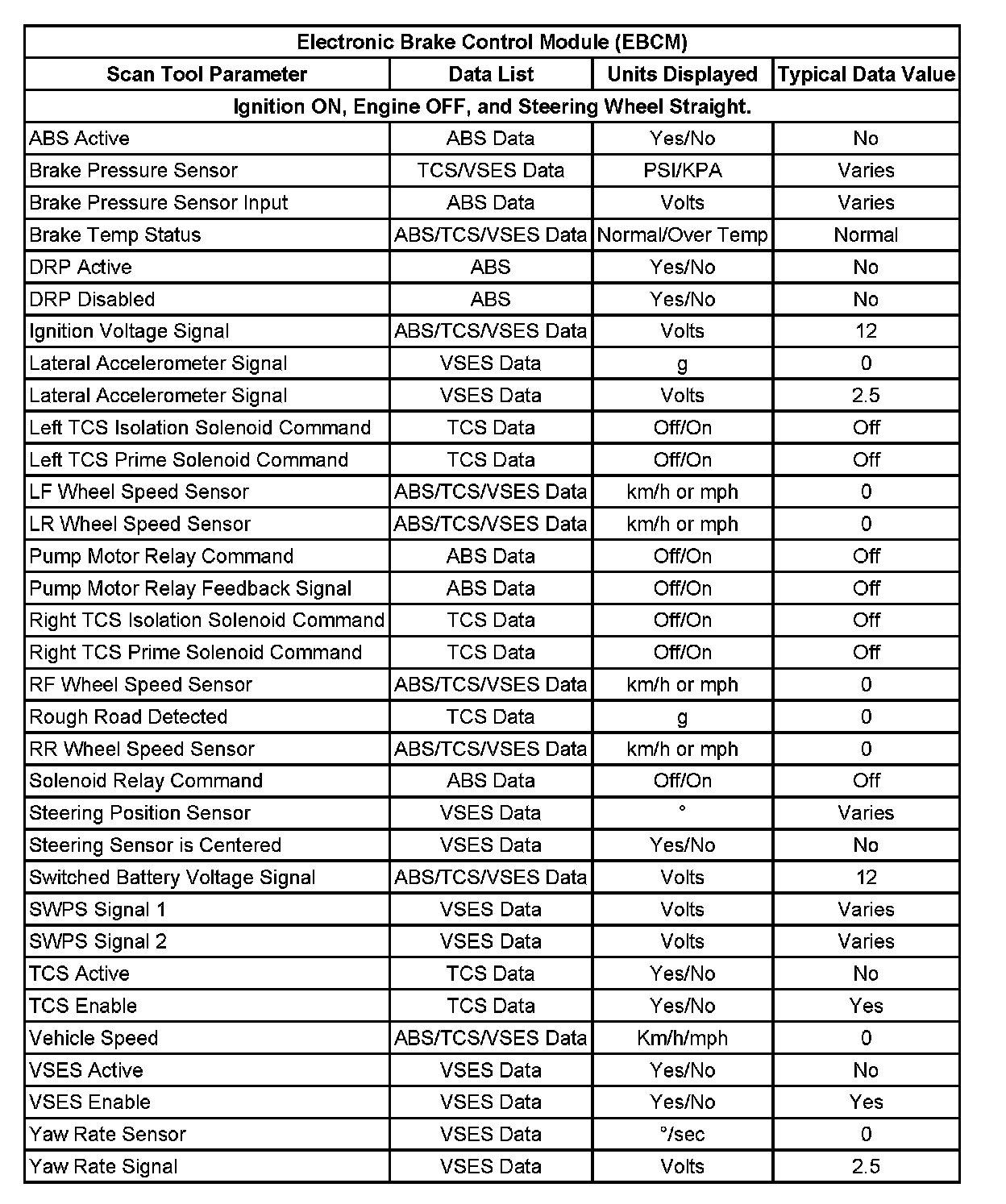

Electronic Brake Control Module (EBCM)





Body Control Module (BCM)





Instrument Panel Cluster (IPC)





Powertrain Control Module (PCM)
