Automatic Transmission Shift Lock Control Schematics

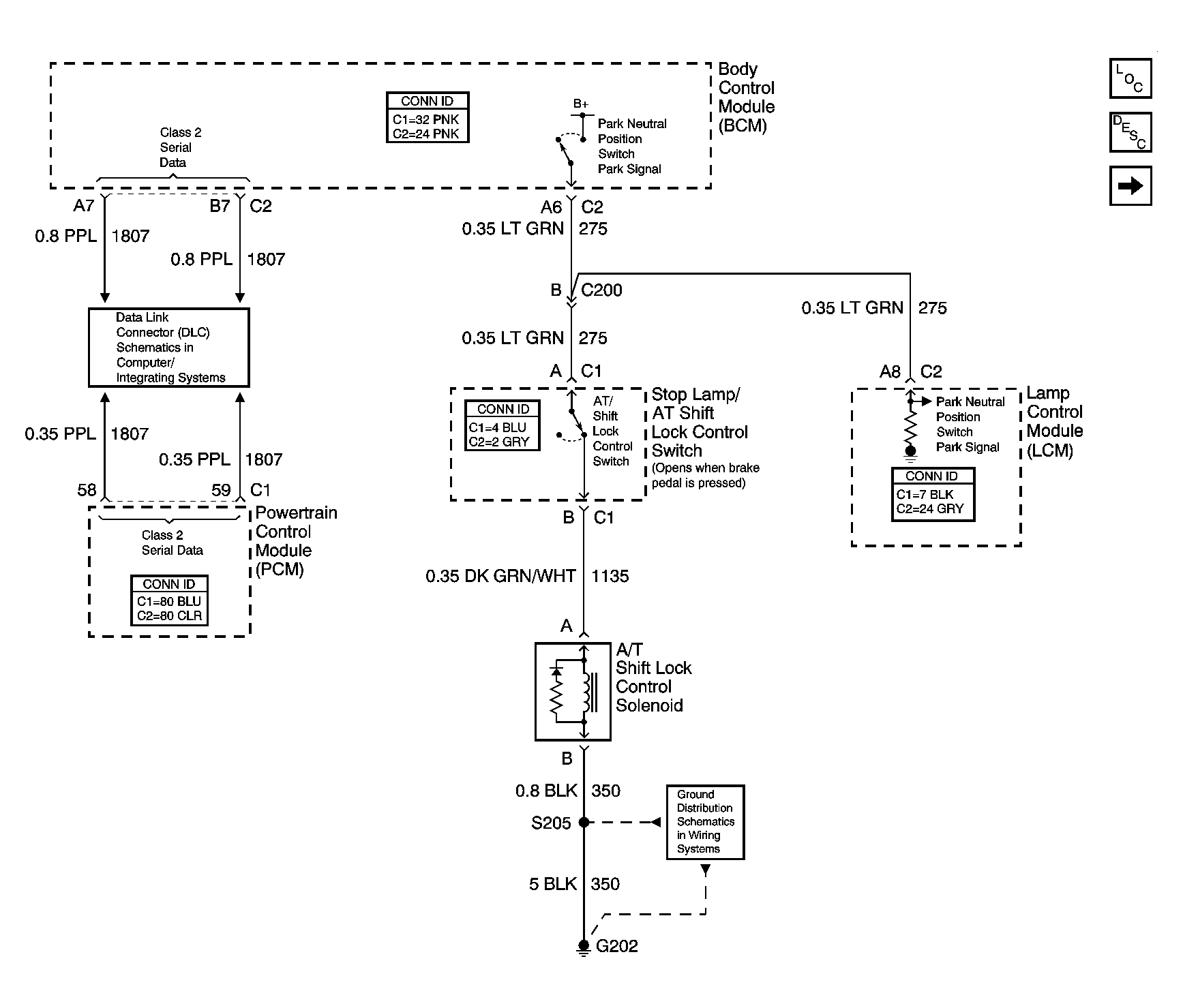

Fig 1: A/T Shift Lock Control Solenoid Schematics
Courtesy of GENERAL MOTORS CORP.

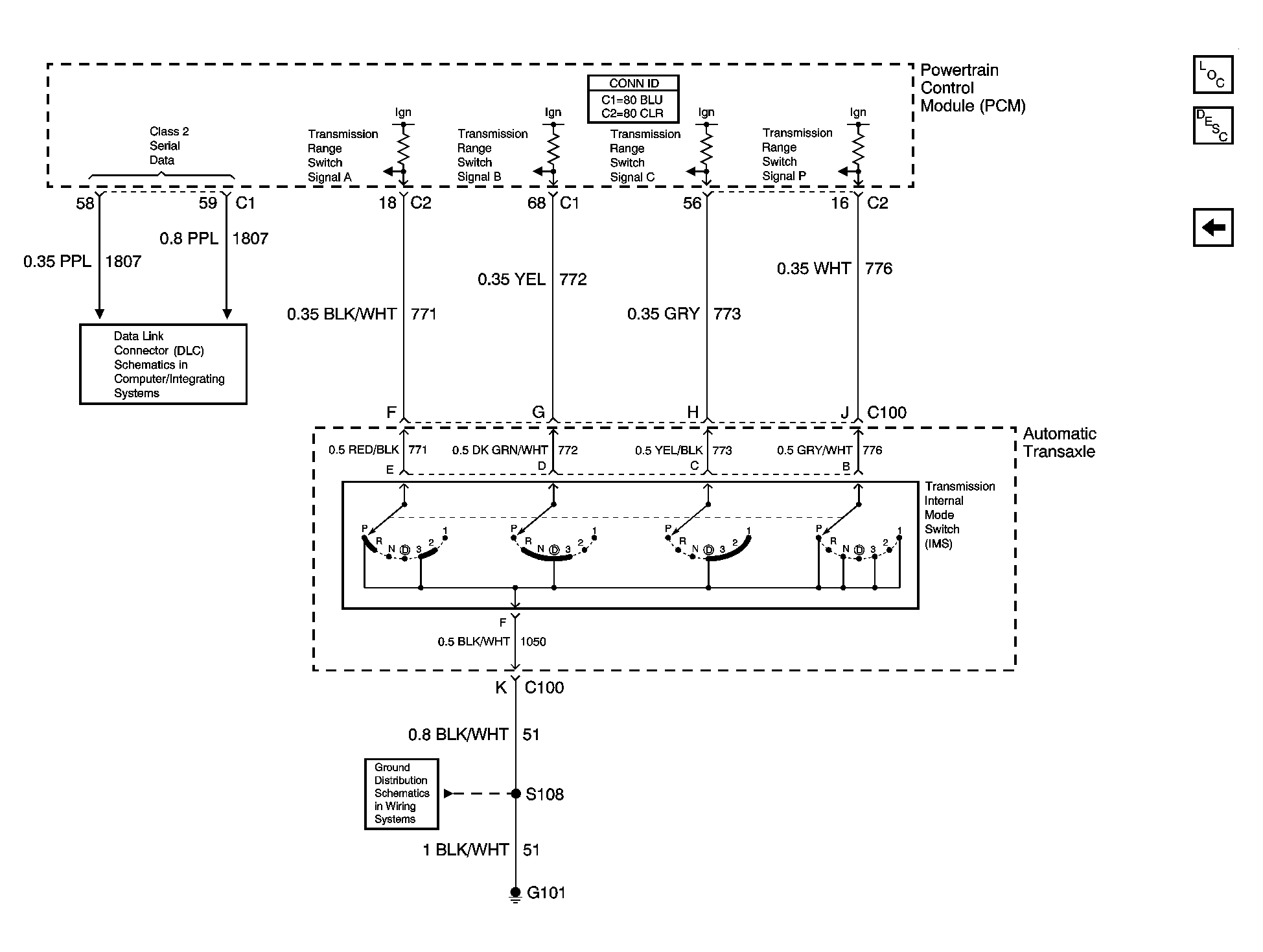

Fig 2: IMS Schematics
Courtesy of GENERAL MOTORS CORP.
