Removal Procedure

    Fig 1: View Of EVAP Pipe To Canister
    GM104621Courtesy of GENERAL MOTORS CORP.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Disconnect evaporative emission (EVAP) purge pipe (3), vapor pipe (2) and vent hose/pipe (1) from the EVAP canister.

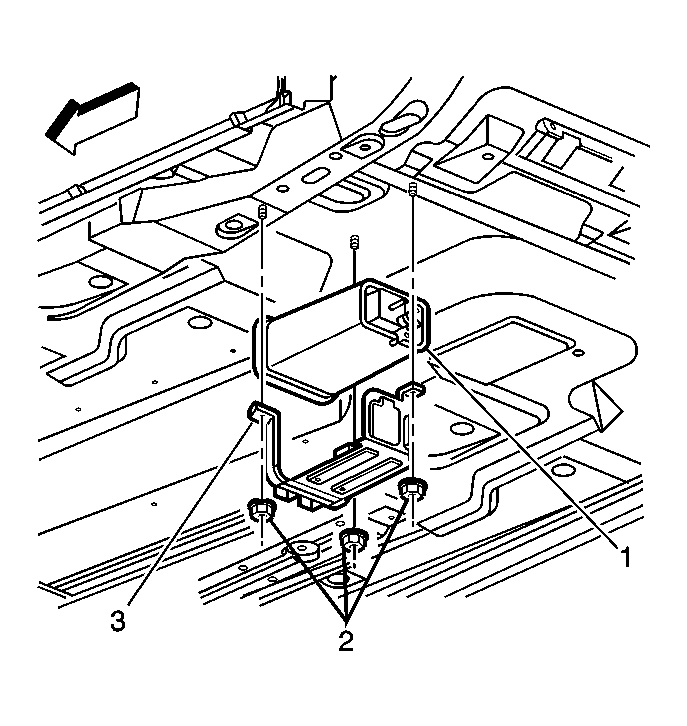

    3. Fig 2: Removing/Installing Evaporative Emission (EVAP) Canister
    GM104774Courtesy of GENERAL MOTORS CORP.
  3. Remove the EVAP canister bracket retaining nuts (2).
  4. Remove the canister (1) from the EVAP canister bracket (3).
