Automatic Transmission Shift Lock Control Schematics

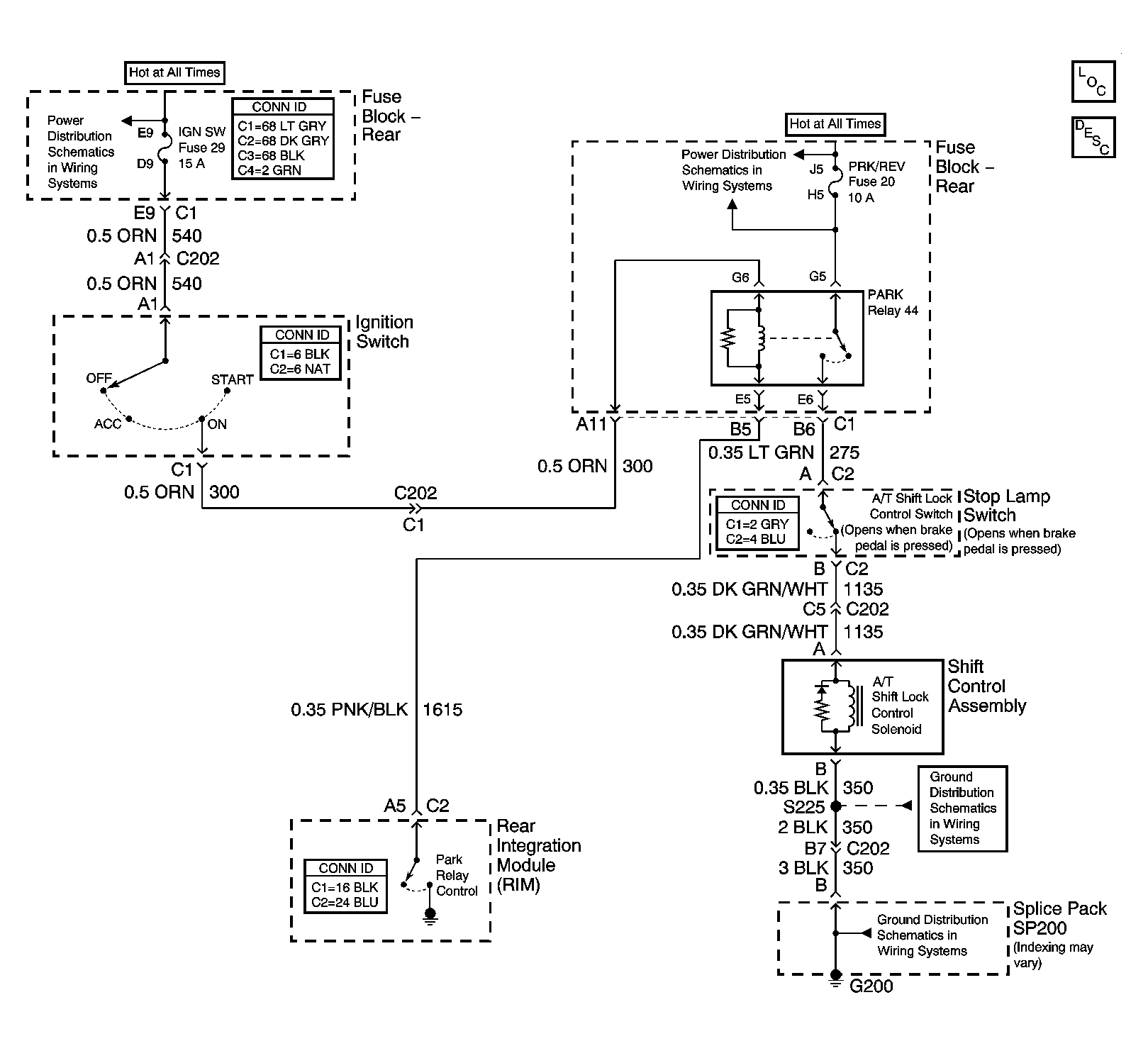

Fig 1: A/T Shift Lock Control Solenoid - Class 2
GM1545396Courtesy of GENERAL MOTORS CORP.
