Installation Procedure

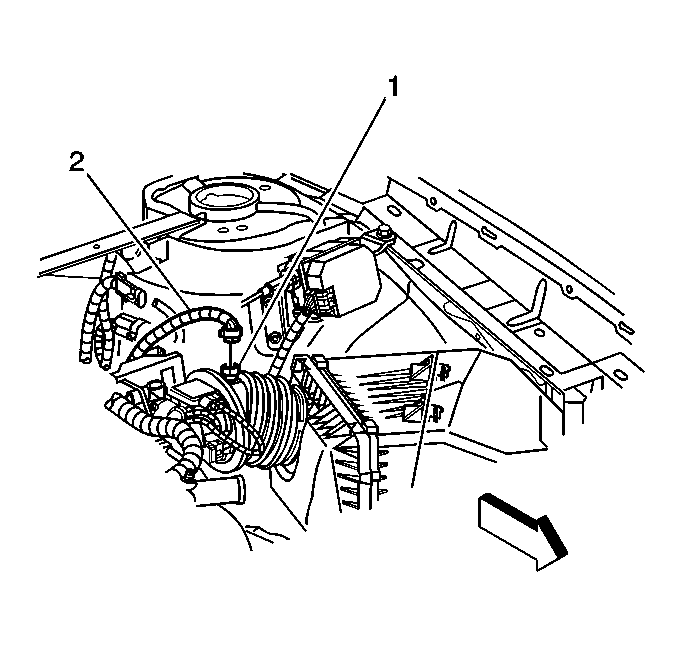

Fig 1: View of Intake Air Duct

Courtesy of GENERAL MOTORS CORP.

Position and insert the IAT sensor into the rear air intake duct (1).

Fig 2: View of Intake Air Temperature Sensor and Electrical Sensors

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (2) to the IAT sensor (1).
