Body Control System Schematics

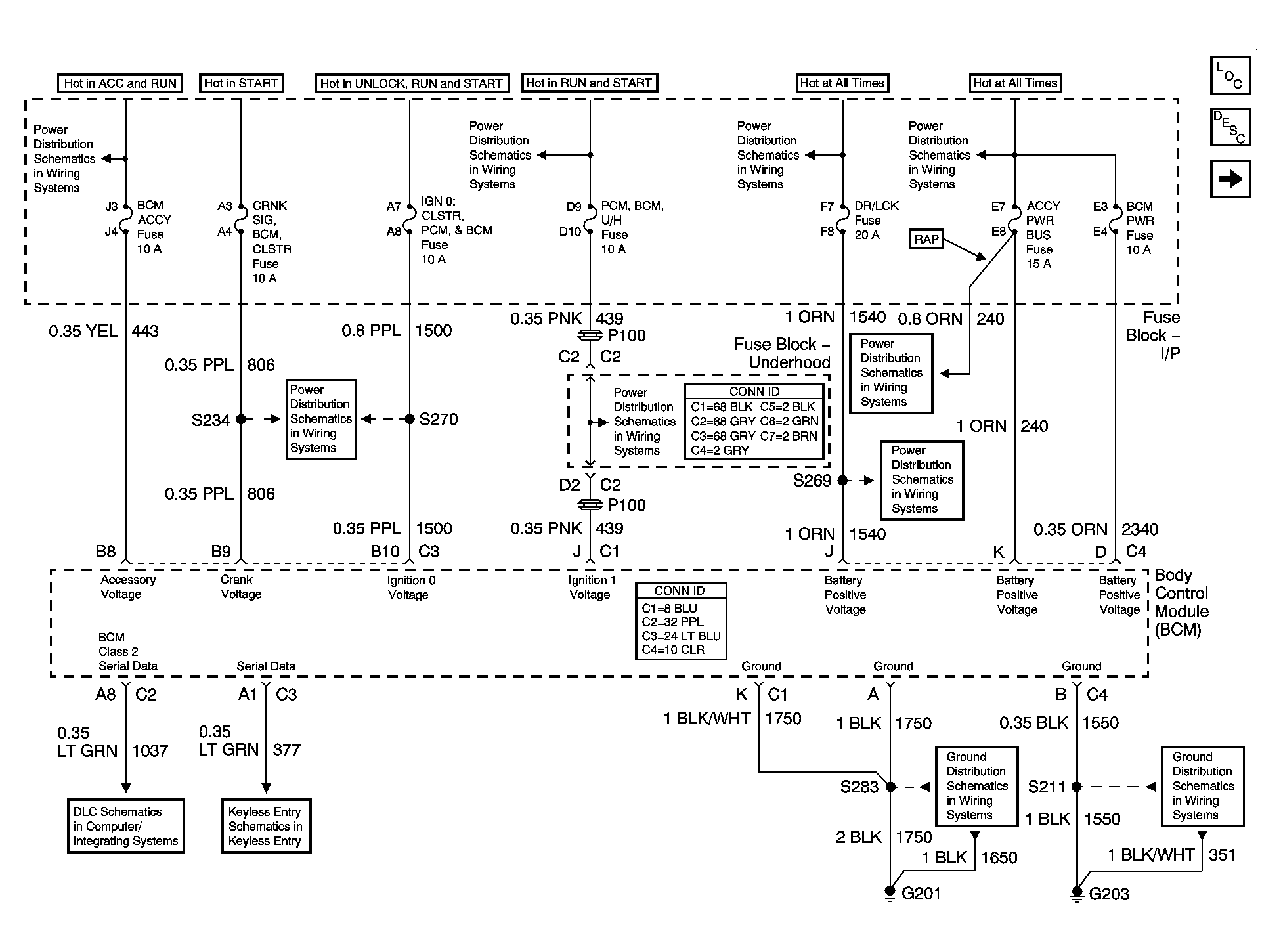

Fig 1: Power, Ground, and DLC Schematic

Courtesy of GENERAL MOTORS CORP.

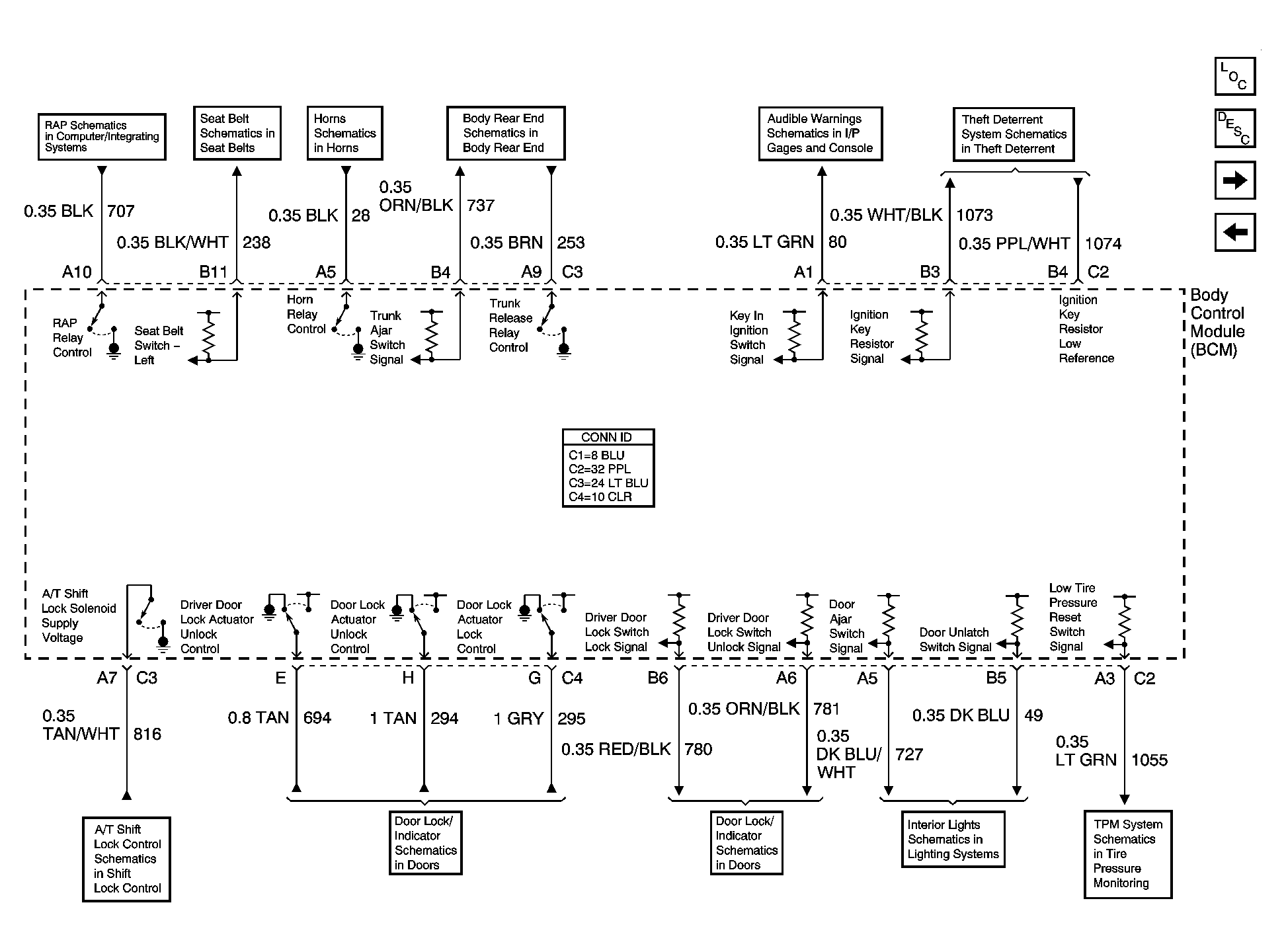

Fig 2: Body Control System Schematics - 1 of 2

Courtesy of GENERAL MOTORS CORP.

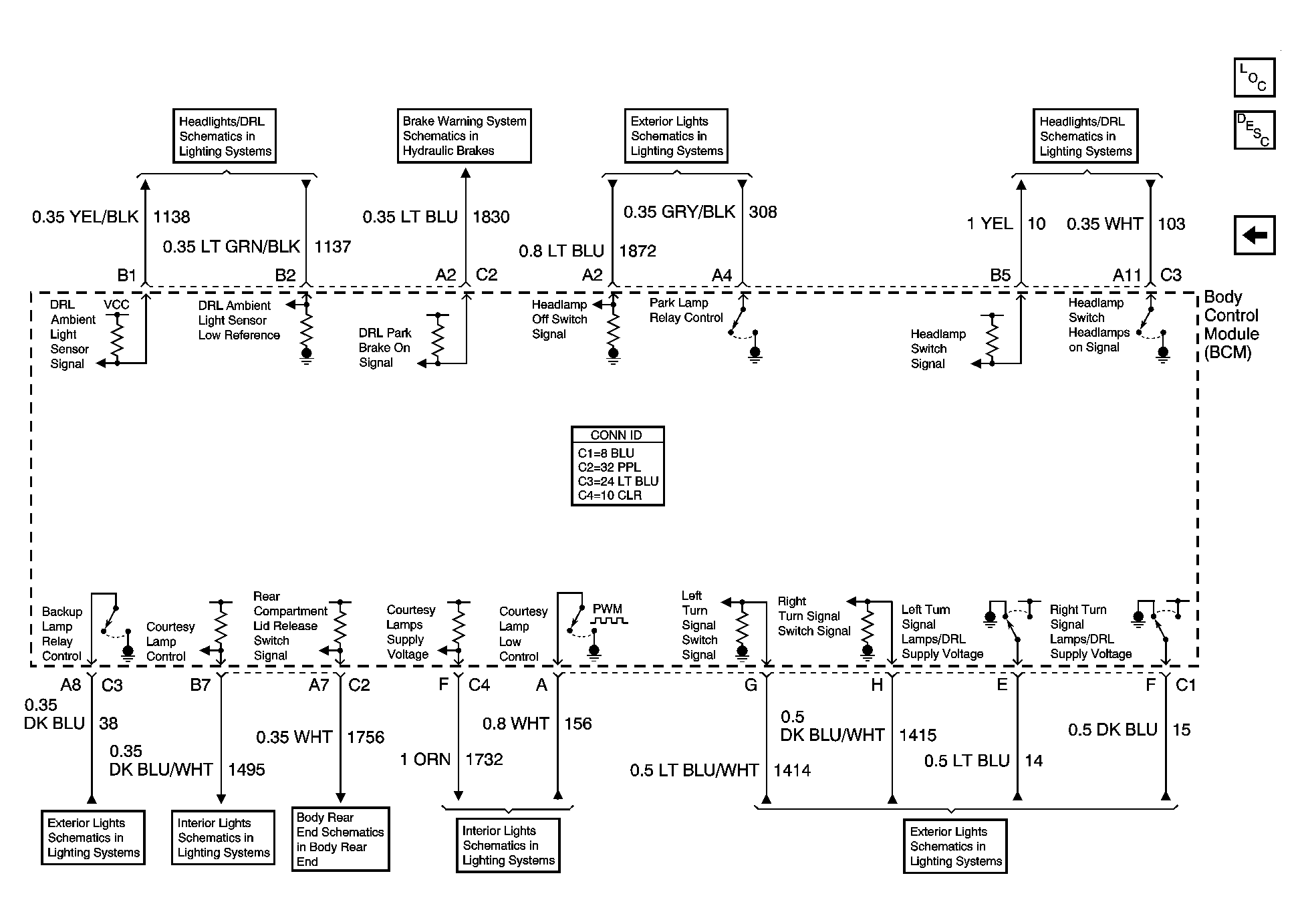

Fig 3: Body Control System Schematics - 2 of 2

Courtesy of GENERAL MOTORS CORP.
