Removal Procedure

WARNING: This page is about a different car, the 2005 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent and place in a suitable container.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls 6.0L (LQ4).

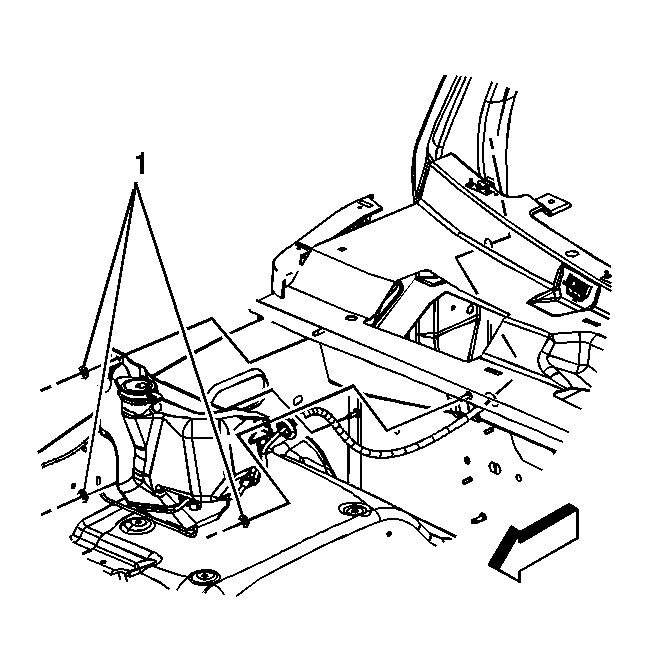

    3. Fig 1: Solvent Container Nuts
    GM833989Courtesy of GENERAL MOTORS CORP.
  3. Remove the nuts (1) retaining the solvent container to the vehicle.
    4. Fig 2: Front End Inner Side Panel Gusset
    GM833961Courtesy of GENERAL MOTORS CORP.
  4. Remove the front end inner side panel gusset (2) by removing the fasteners (1).
  5. Remove the washer hoses from the "T" connections at washer pump and unseat them from the grooves in the washer bottle.
  6. Disconnect the washer pump electrical connector.
  7. Disconnect the washer level sensor electrical connector.
  8. Remove the washer reservoir from the vehicle.
