Power Window Switch

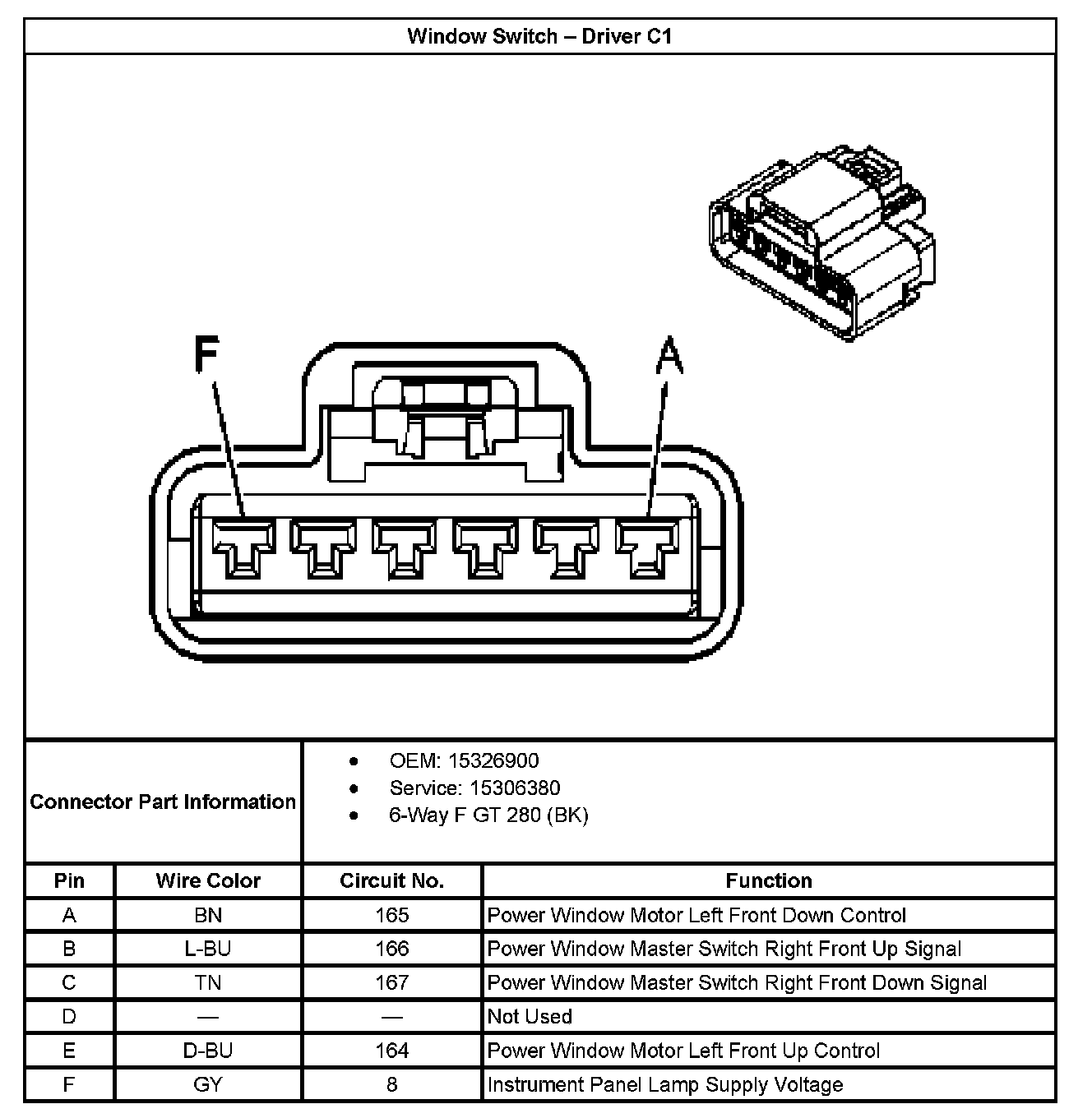

Window Switch - Driver C1:

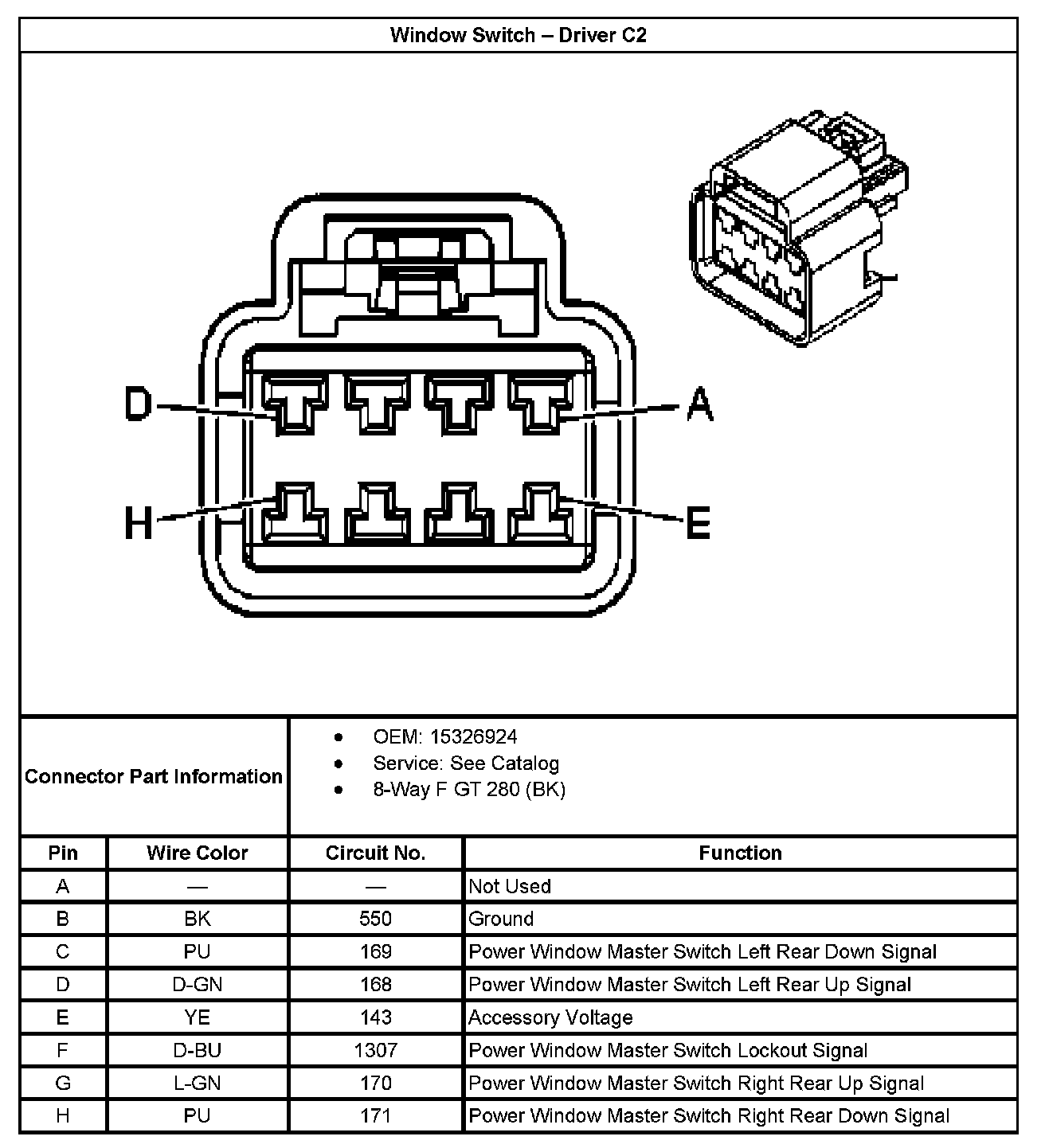

Window Switch - Driver C2:

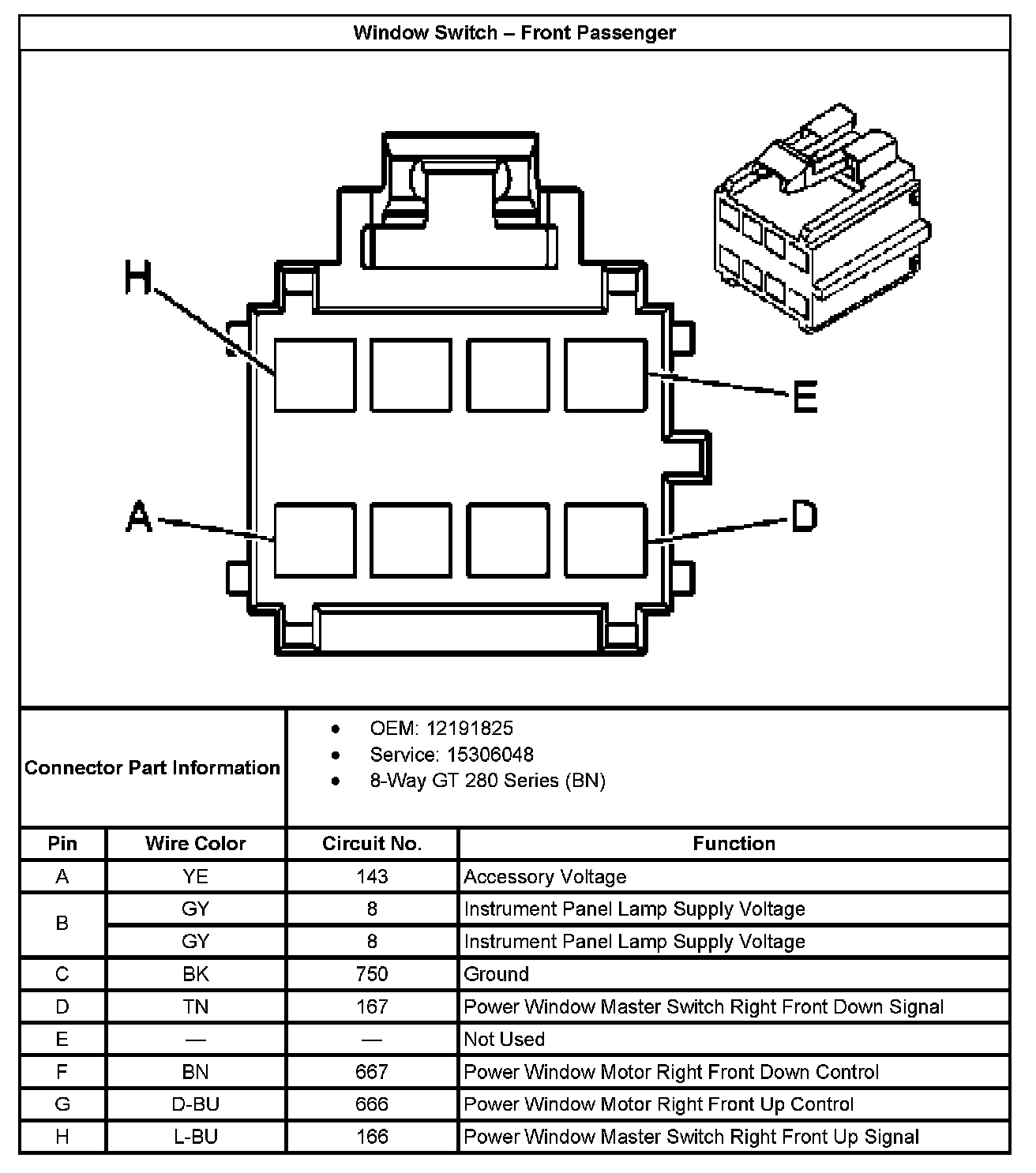

Window Switch - Front Passenger:

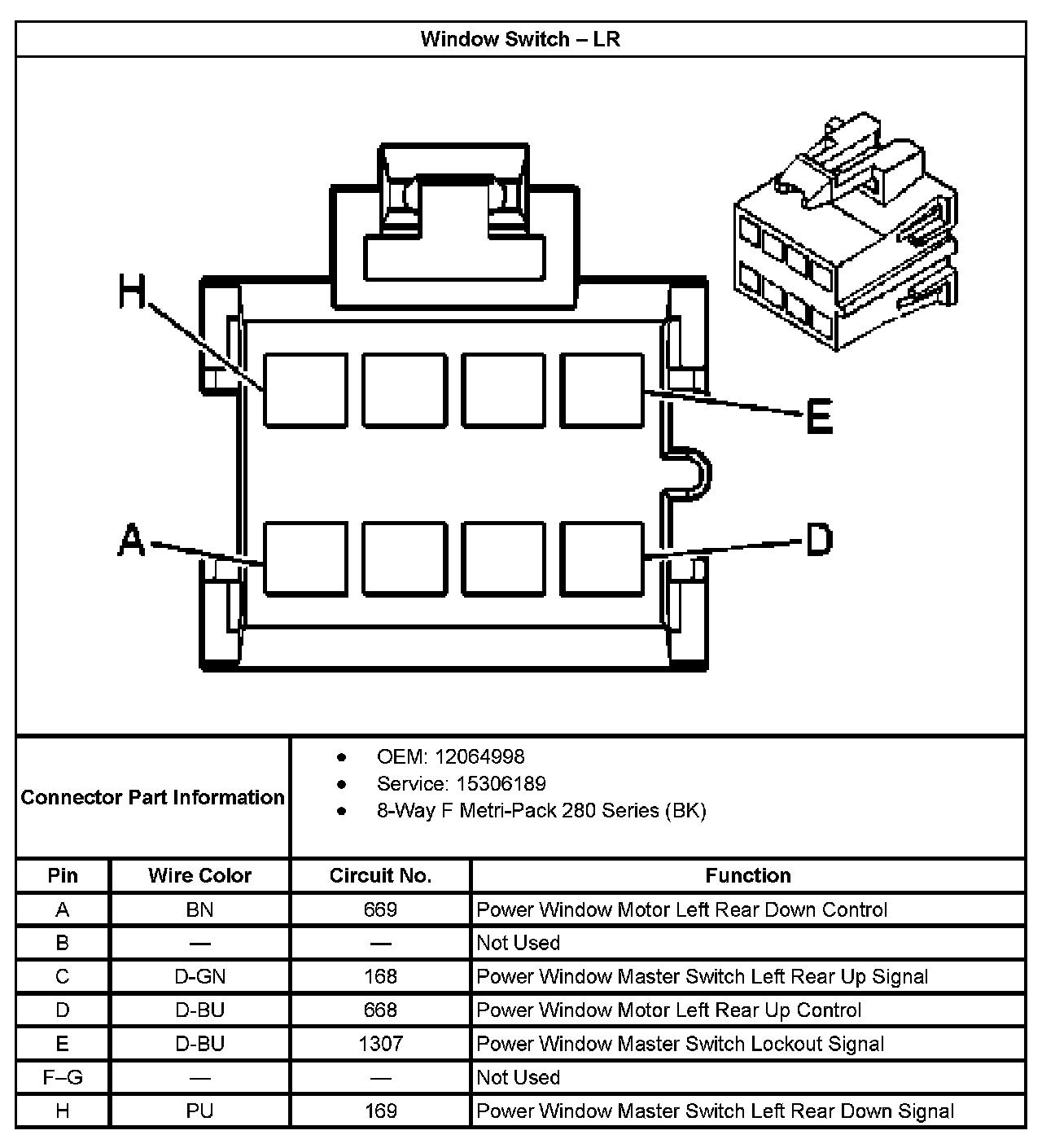

Window Switch - LR:

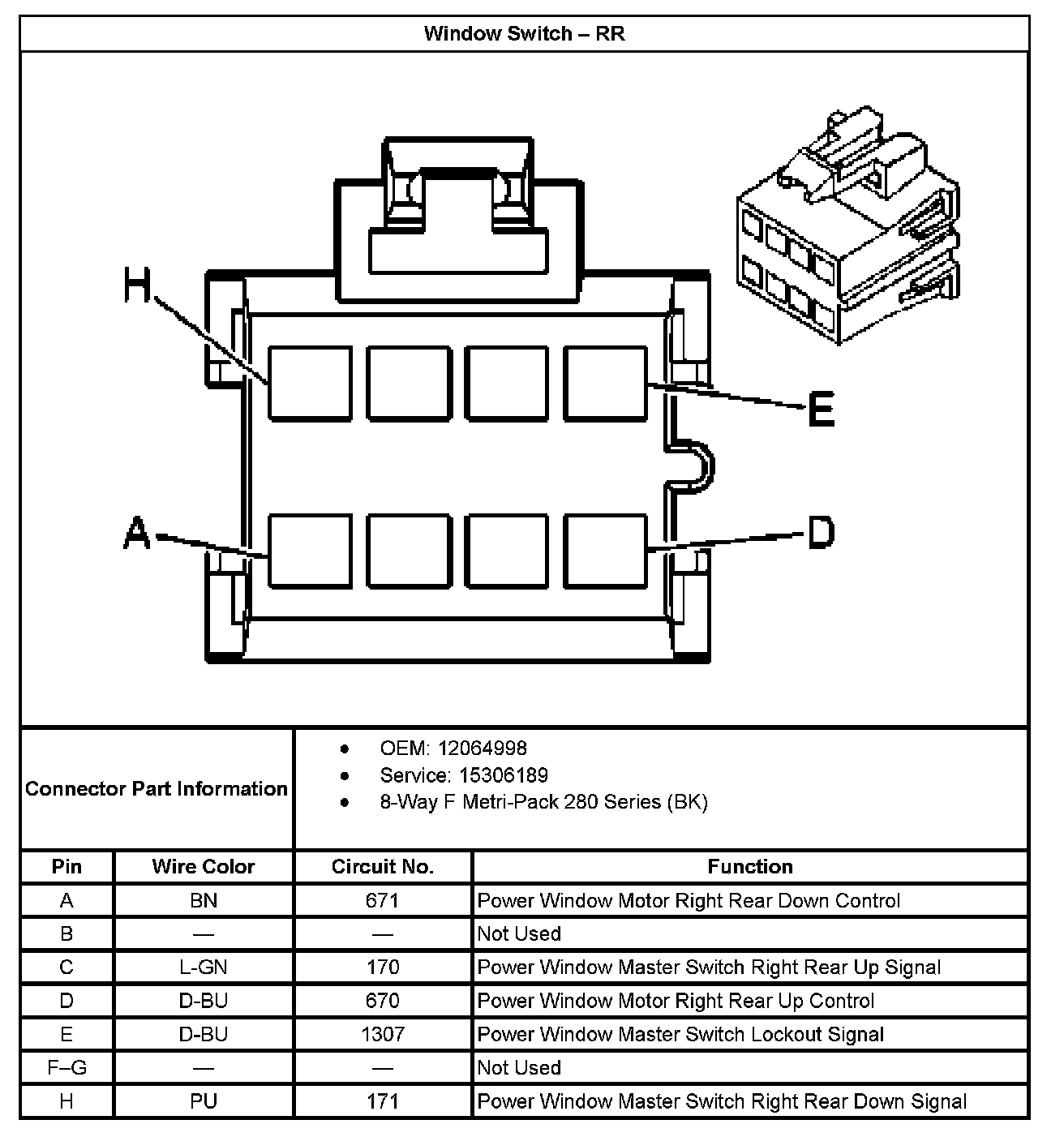

Window Switch - RR:
