Seat Temperature Element

Heated Seat Element - Driver Back (With RPO Code KA1):

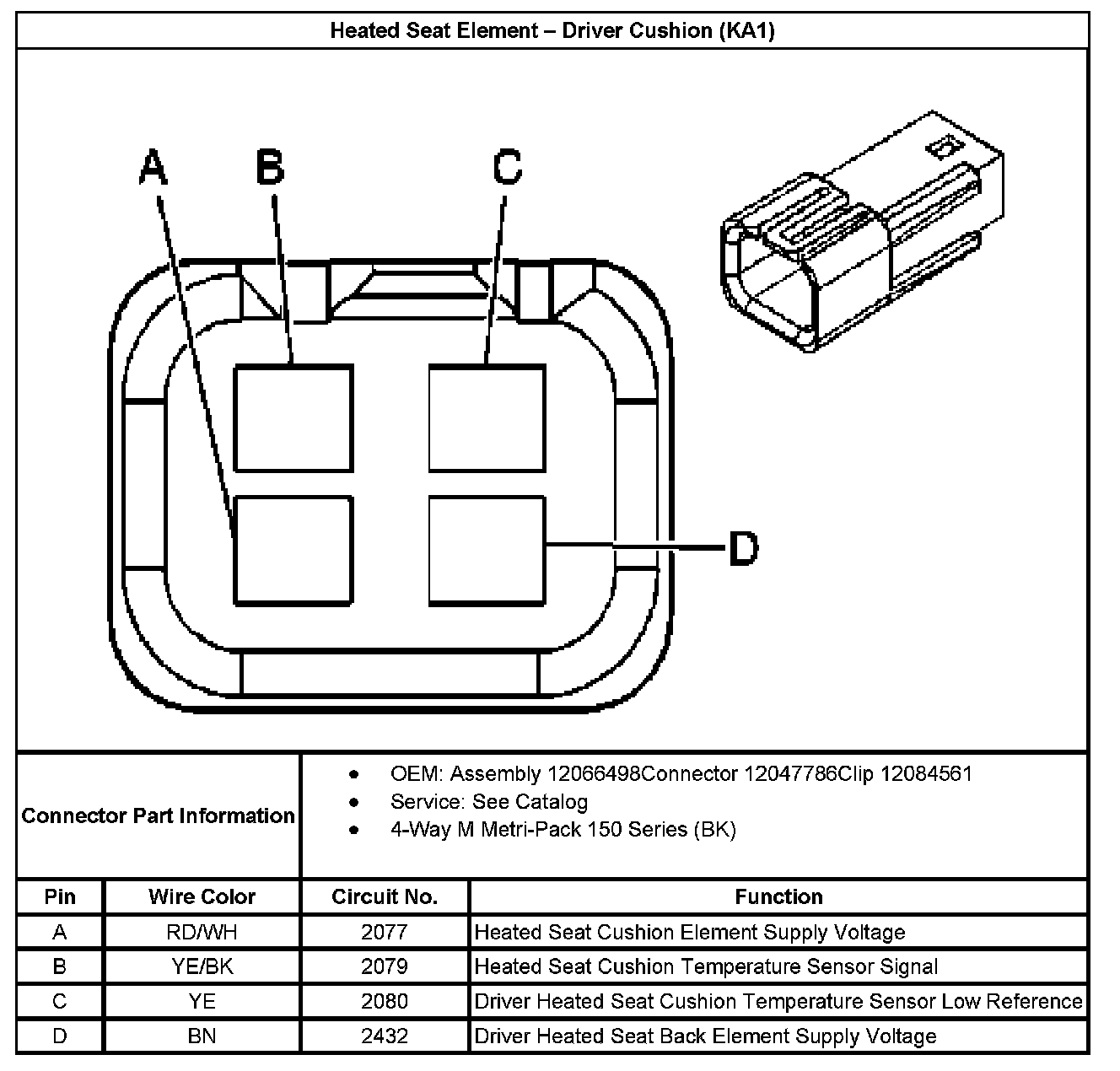

Heated Seat Element - Driver Cushion (With RPO Code KA1):



Heated Seat Element - Passenger Back (With RPO Code KA1):

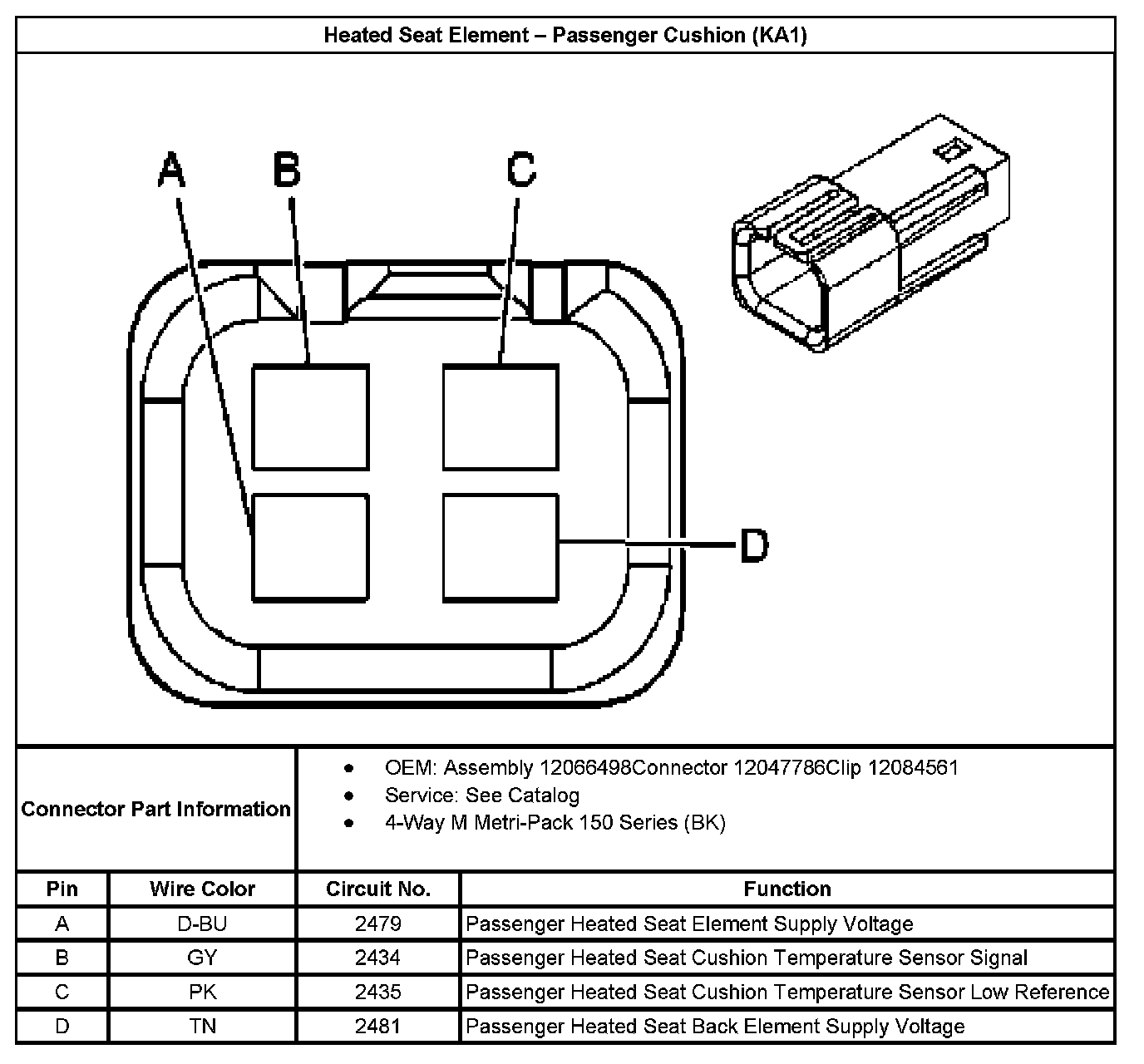

Heated Seat Element - Passenger Cushion (With RPO Code KA1):
