Power Seat Switch

Seat Adjuster Switch - Driver (With RPO Code AG1):

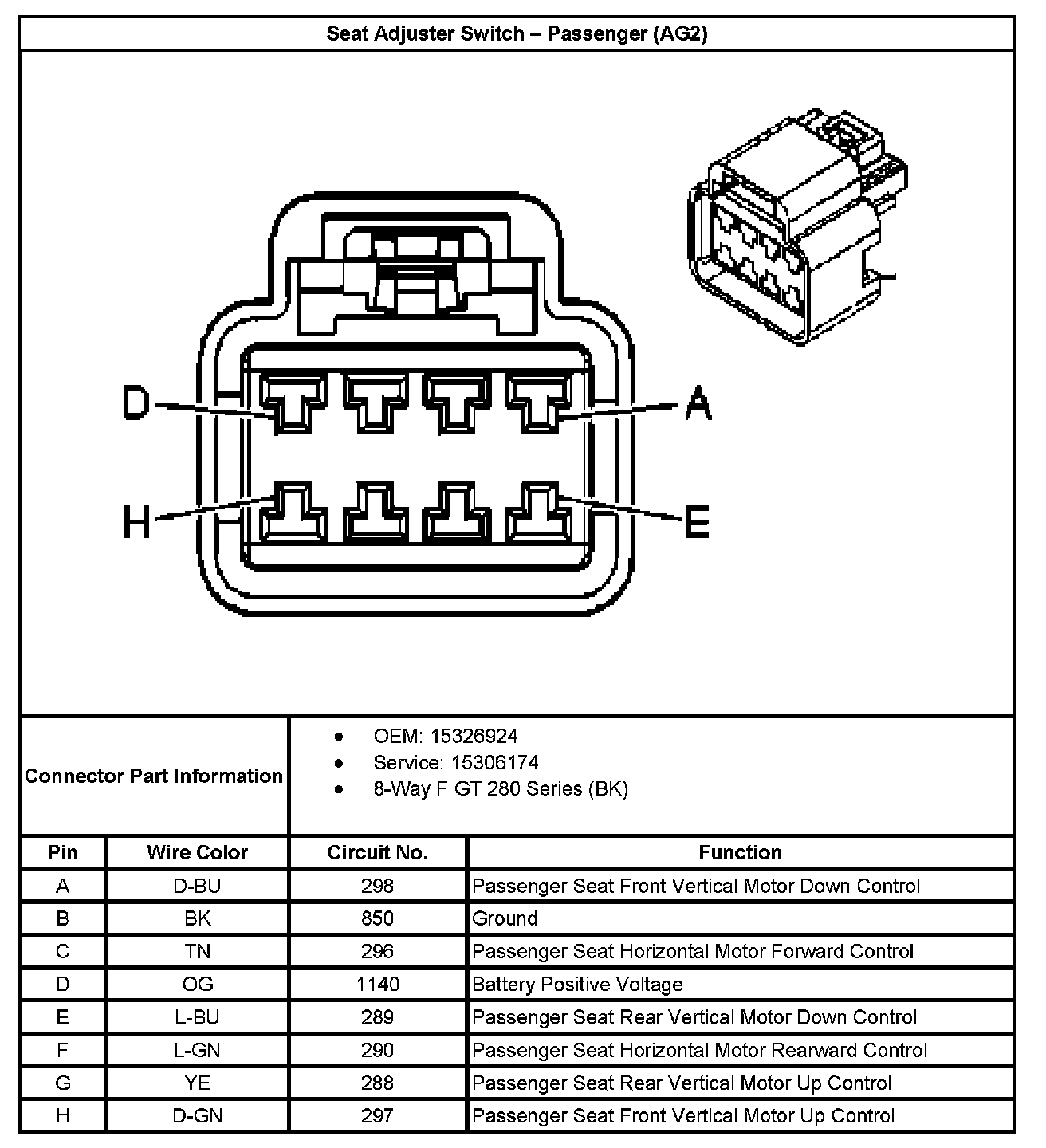

Seat Adjuster Switch - Passenger (With RPO Code AG2):



Seat Lumbar Switch - Driver (With RPO Code AL9):
