Amplifier, Sound System

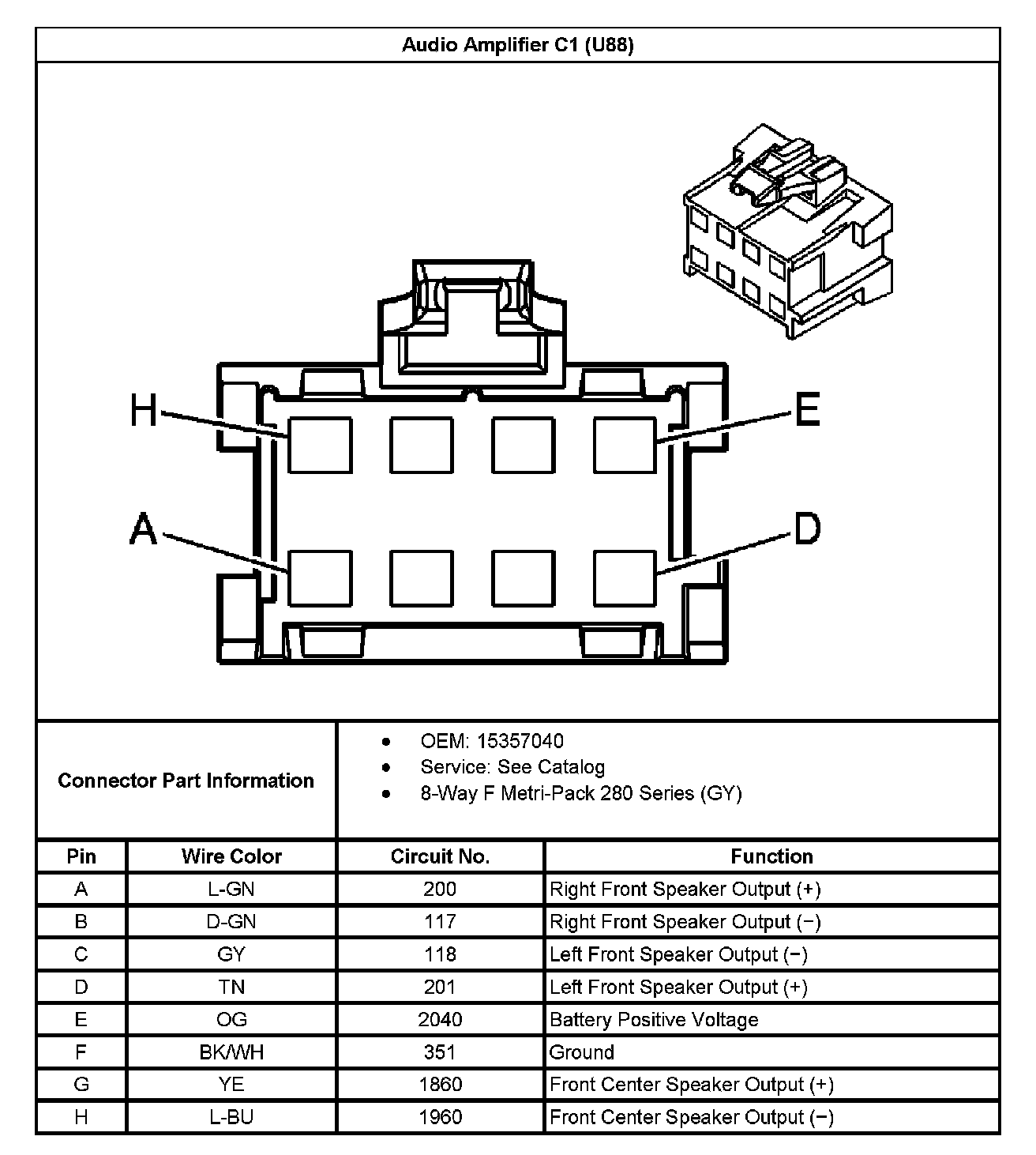

Audio Amplifier C1 (With RPO Code U88):

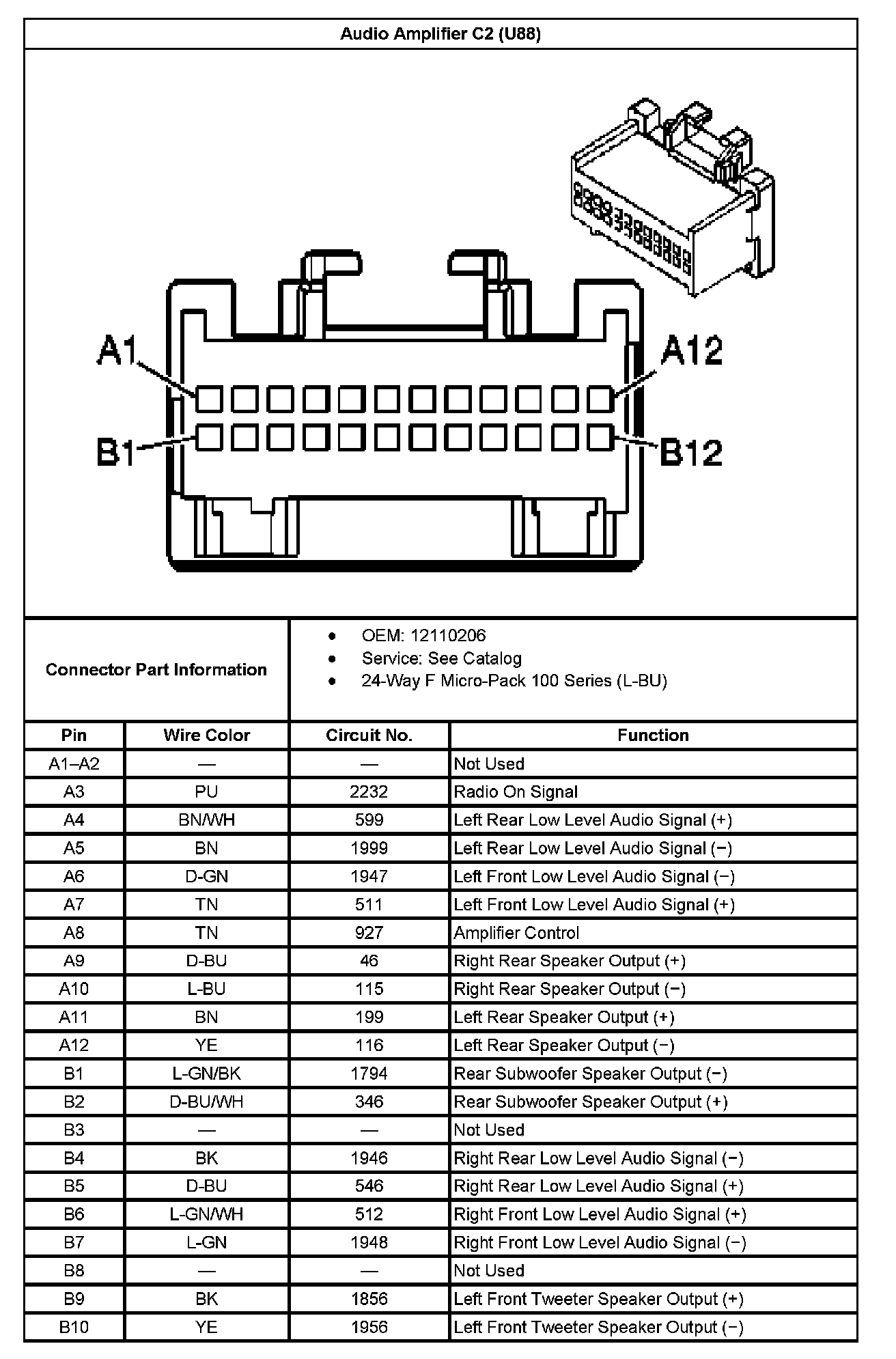

Audio Amplifier C2 (With RPO Code U88) Part 1:



Audio Amplifier C2 (With RPO Code U88) Part 2:
