LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Buick
>>
2004
>>
Regal V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
>>
Solenoid Control & TFT Sensor
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

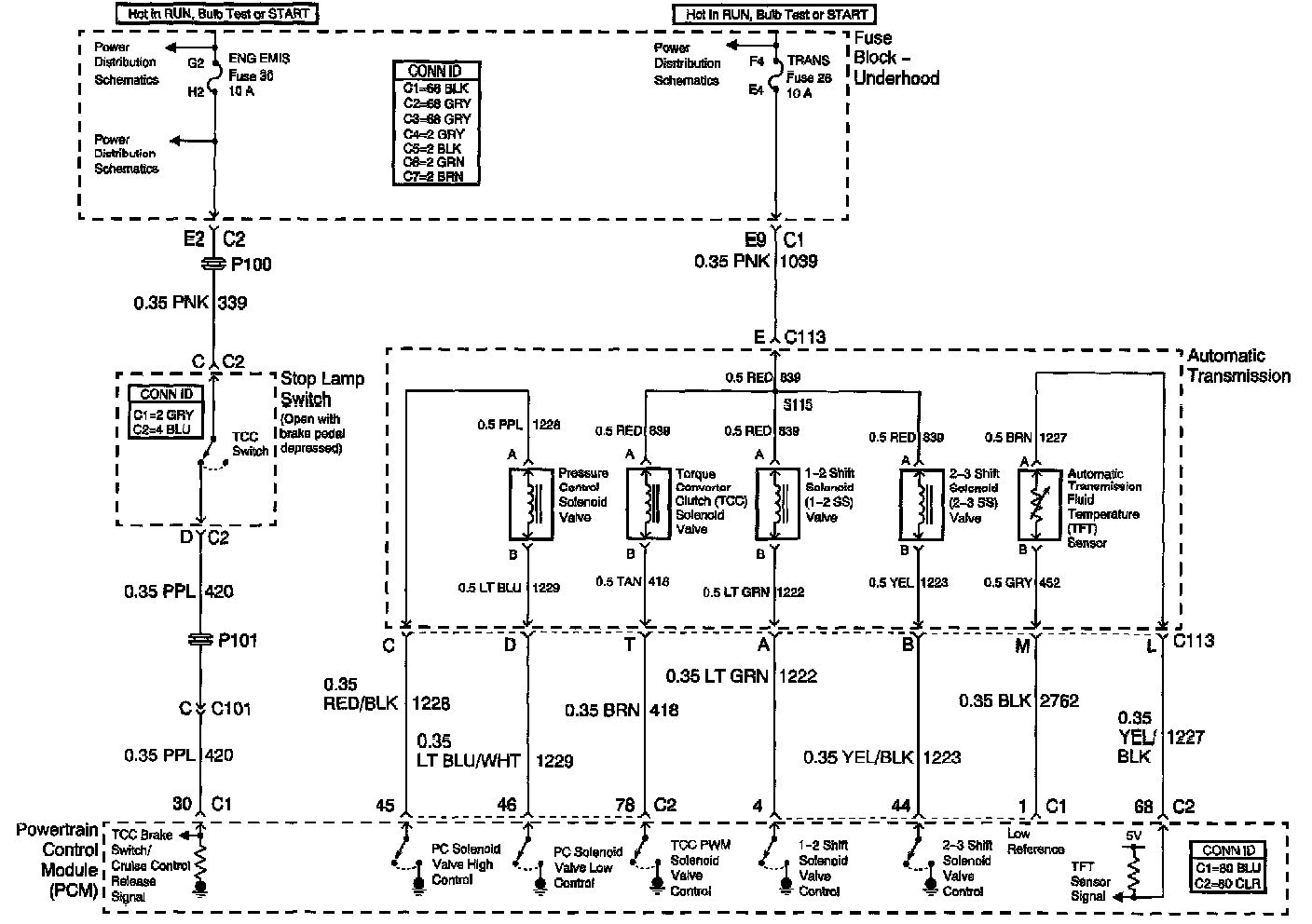

Solenoid Control & TFT Sensor
