Seat Temperature Control Module

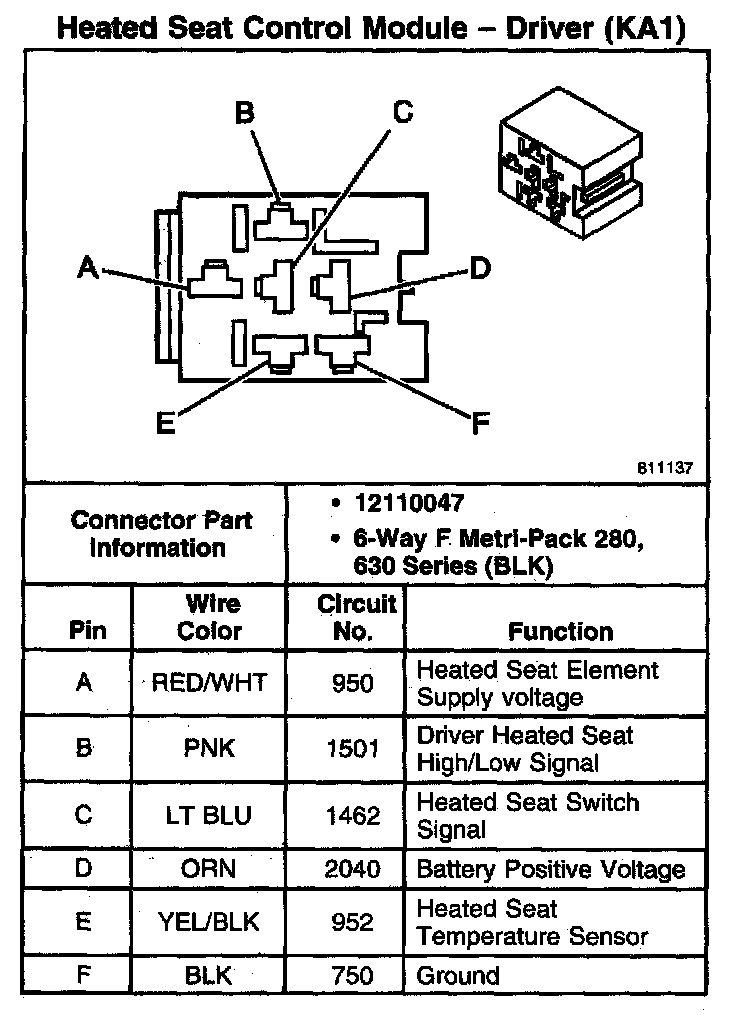

Heated Seat Control Module - Driver (With RPO Code KA1):



Heated Seat Control Module - Front Passenger ((With RPO Code KA1), Part 1:



Heated Seat Control Module - Front Passenger ((With RPO Code KA1), Part 2:
