Removal Procedure

Apply masking tape to the front door outer panel around the front door outside handle.
Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .

Fig 1: Removing Outside Door Handle Rod - Front Door

GM293875

Courtesy of GENERAL MOTORS CORP.

Disconnect the front door outside handle rod from the front door lock.
Disconnect the front door outside handle lock rod from the front door lock.

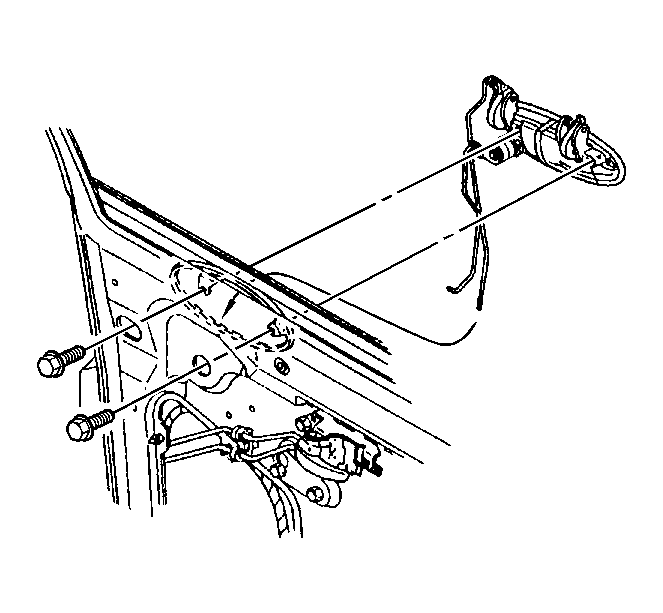

Fig 2: Front Outside Handle & Bolts

GM308317

Courtesy of GENERAL MOTORS CORP.

Remove the front door outside handle bolts.
Rotate the front door outside handle to clear the door handle opening.
Remove the front door outside handle from the front door.
