Removal Procedure

  1. Place a drain pan under the vehicle in order to catch any draining power steering fluid.
  2. Remove the coolant reservoir. Refer to Coolant Recovery Reservoir Replacement in Engine Cooling.

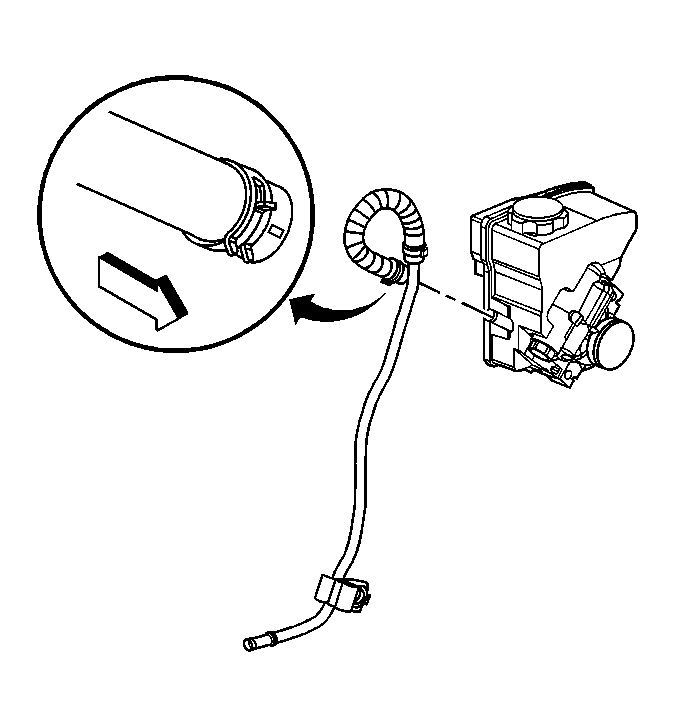

    3. Fig 1: View Of Power Steering Pump Return Hose
    GM454268Courtesy of GENERAL MOTORS CORP.
  3. Remove the return hose from the power steering pump.
  4. Remove the return hose from the retaining bracket on the engine.
  5. Remove the return hose from the cooler pipe/hose.
  6. Remove the return hose from the vehicle.
