Home >> Buick >> 2004 >> Rainier AWD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Chain and Components

September 30: LEMON manuals is back up on a temporary server! Slowness is possible

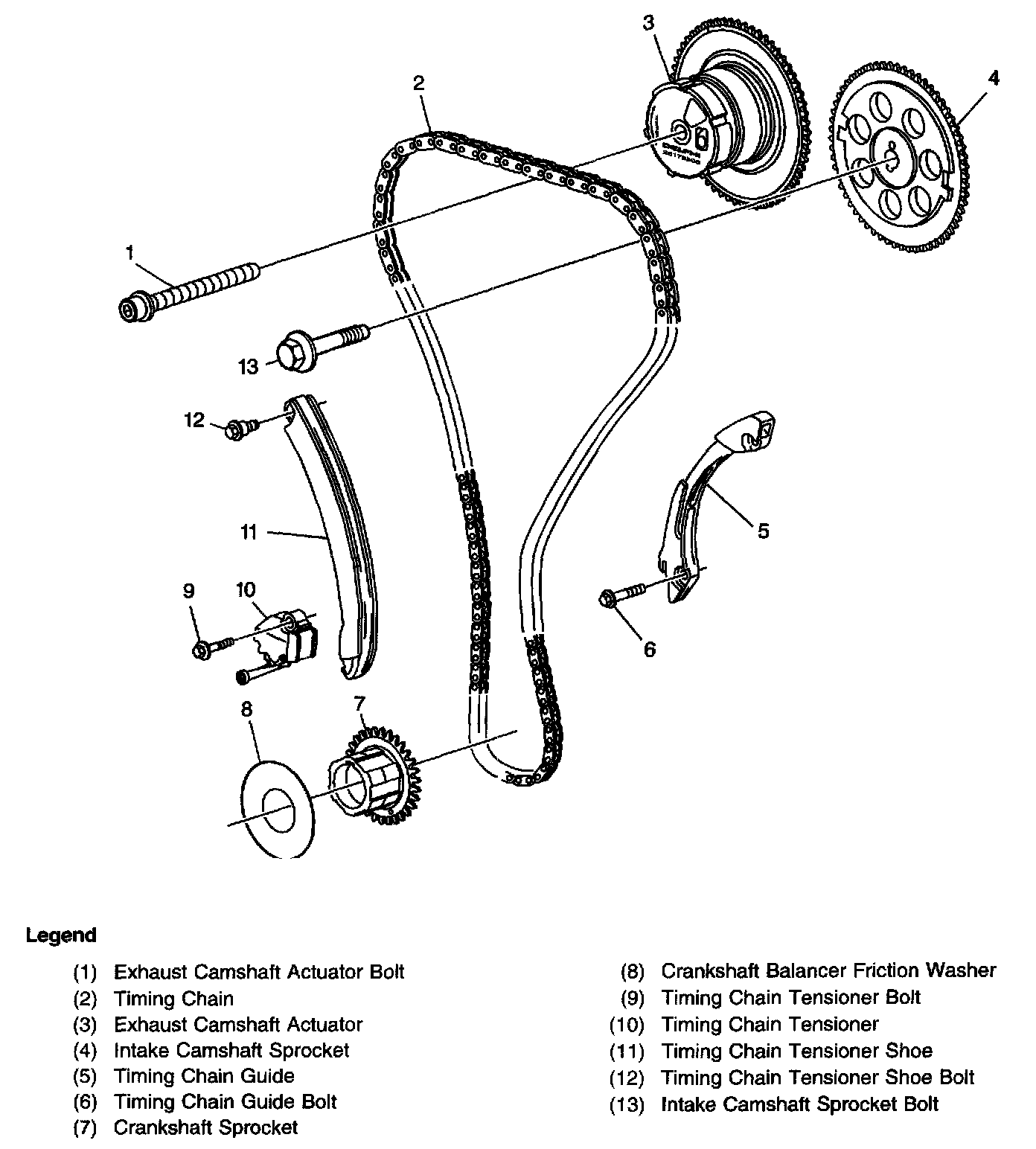

Timing Chain and Components
