Turn Signal/Multifunction Switch

Turn Signal/Malfuntion Switch C1:



Turn Signal/Malfuntion Switch C2:



Turn Signal/Malfuntion Switch C3:

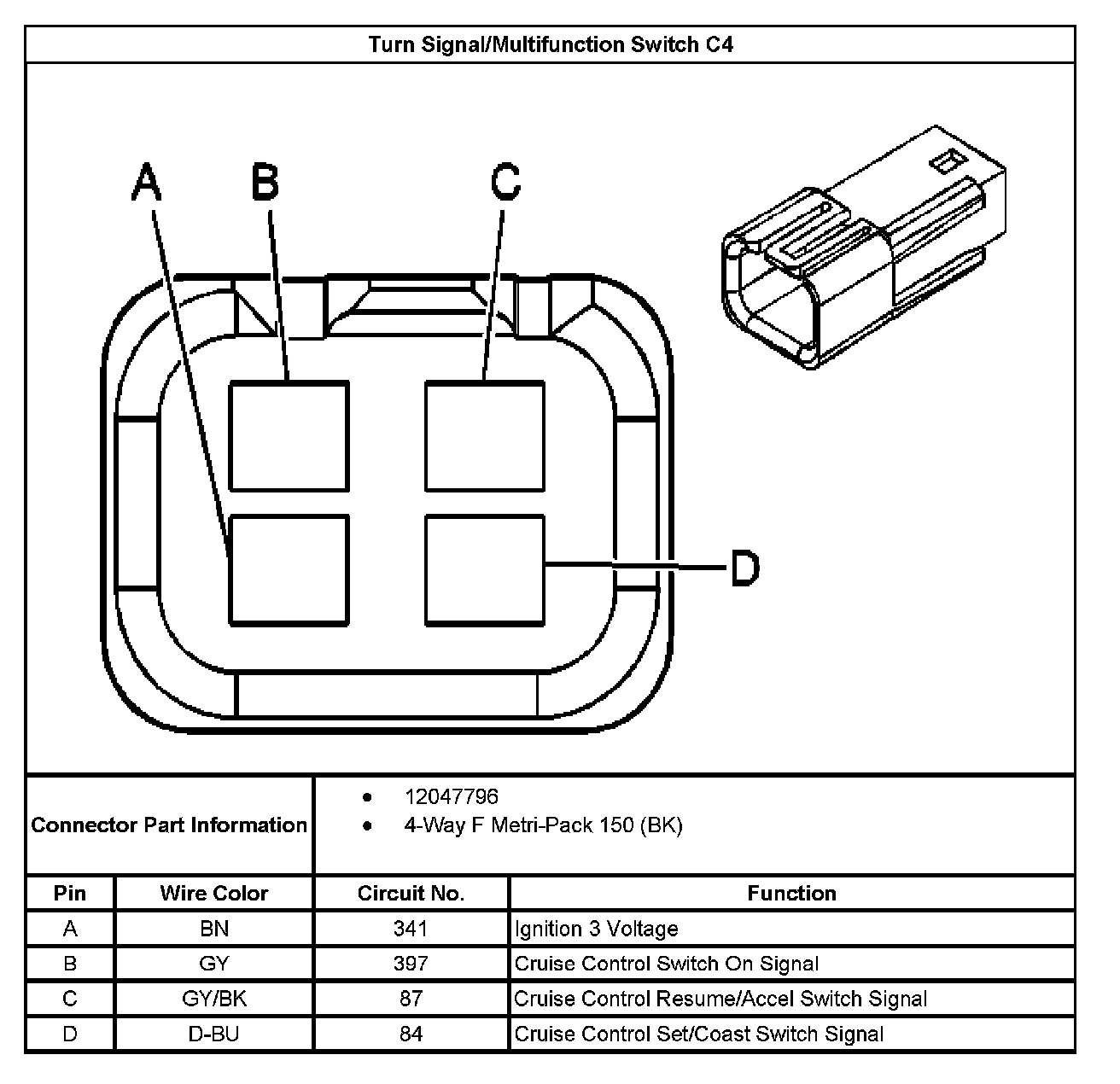

Turn Signal/Malfuntion Switch C4:
