Automatic Transmission Shift Lock Control Schematics

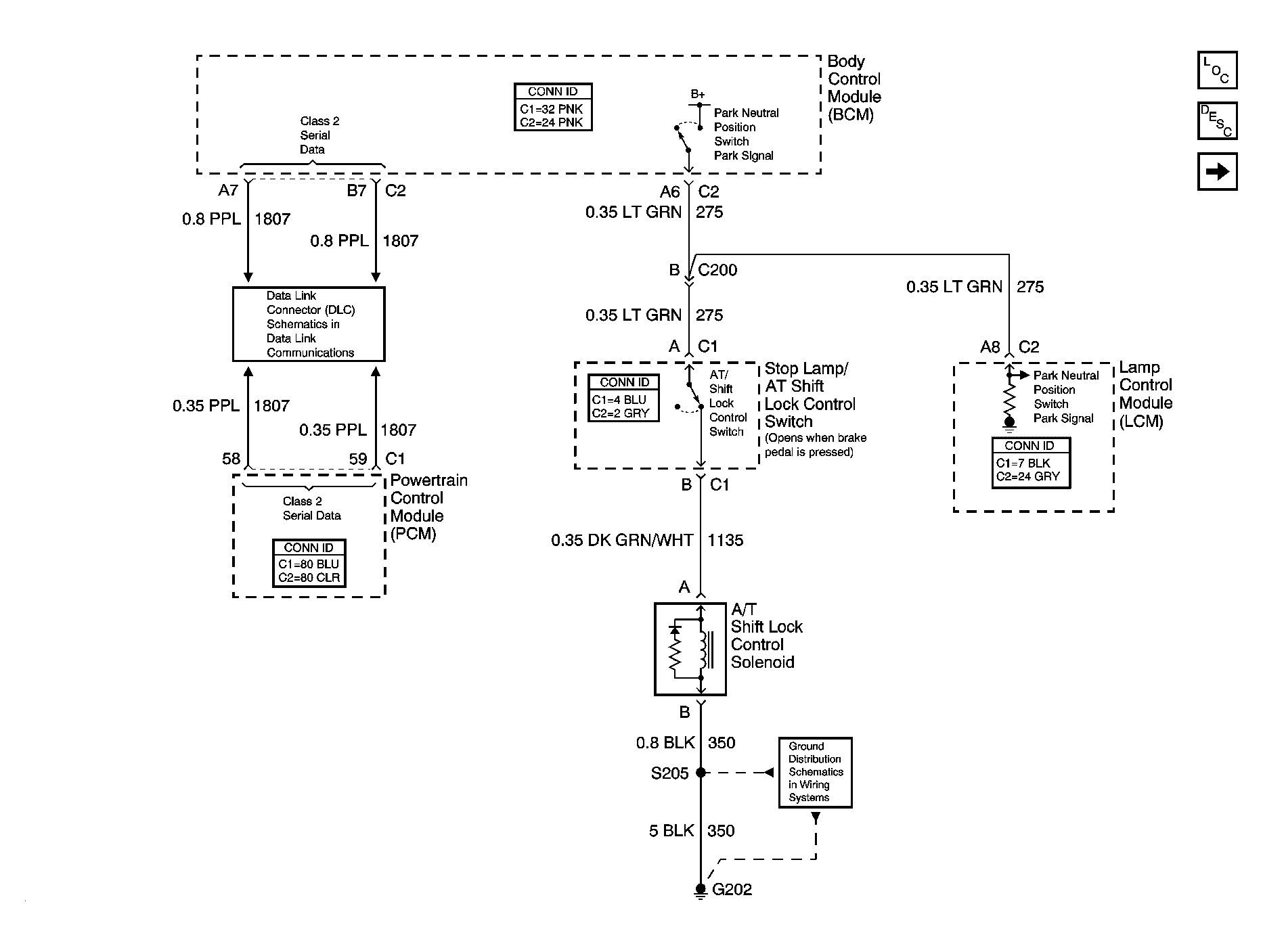

Fig 1: Auto Trans Shift Lock Control Schematic
Courtesy of GENERAL MOTORS CORP.

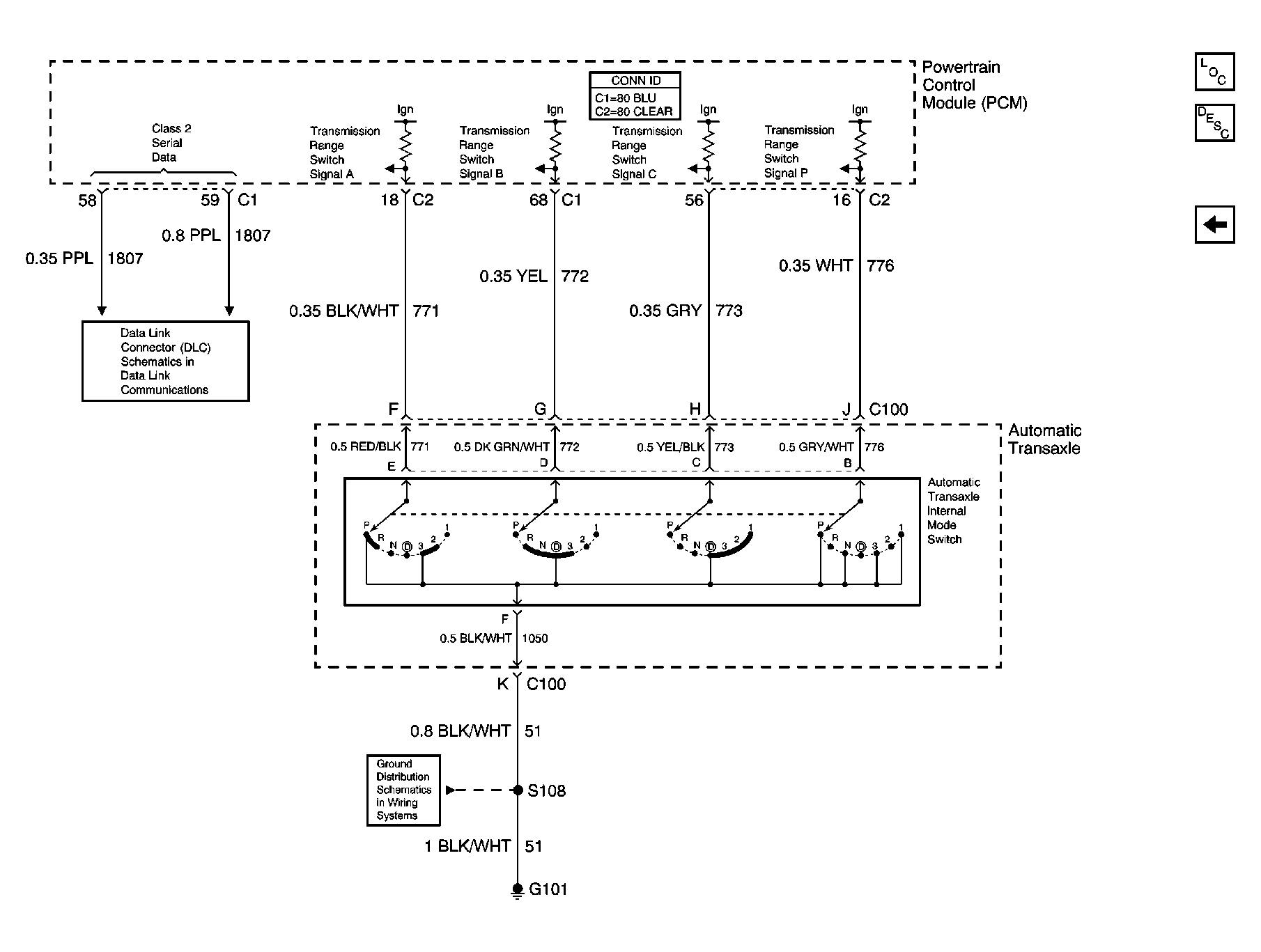

Fig 2: Automatic Transaxle Internal Mode Switch Schematic
Courtesy of GENERAL MOTORS CORP.
