Keyless Entry Schematics

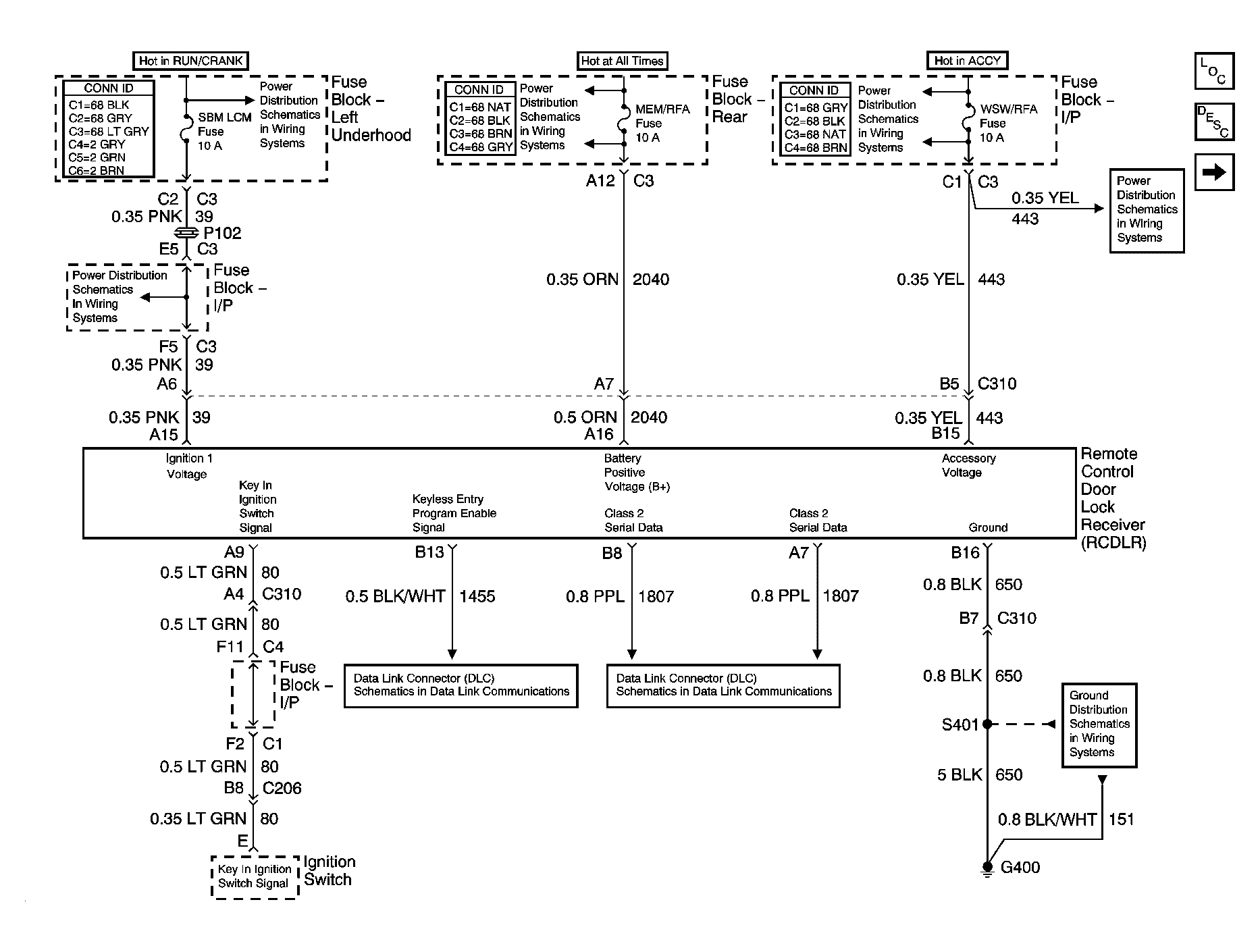

Fig 1: Remote Control Door Lock Receiver (RCDLR) Power, Ground & DLC Schematic
Courtesy of GENERAL MOTORS CORP.

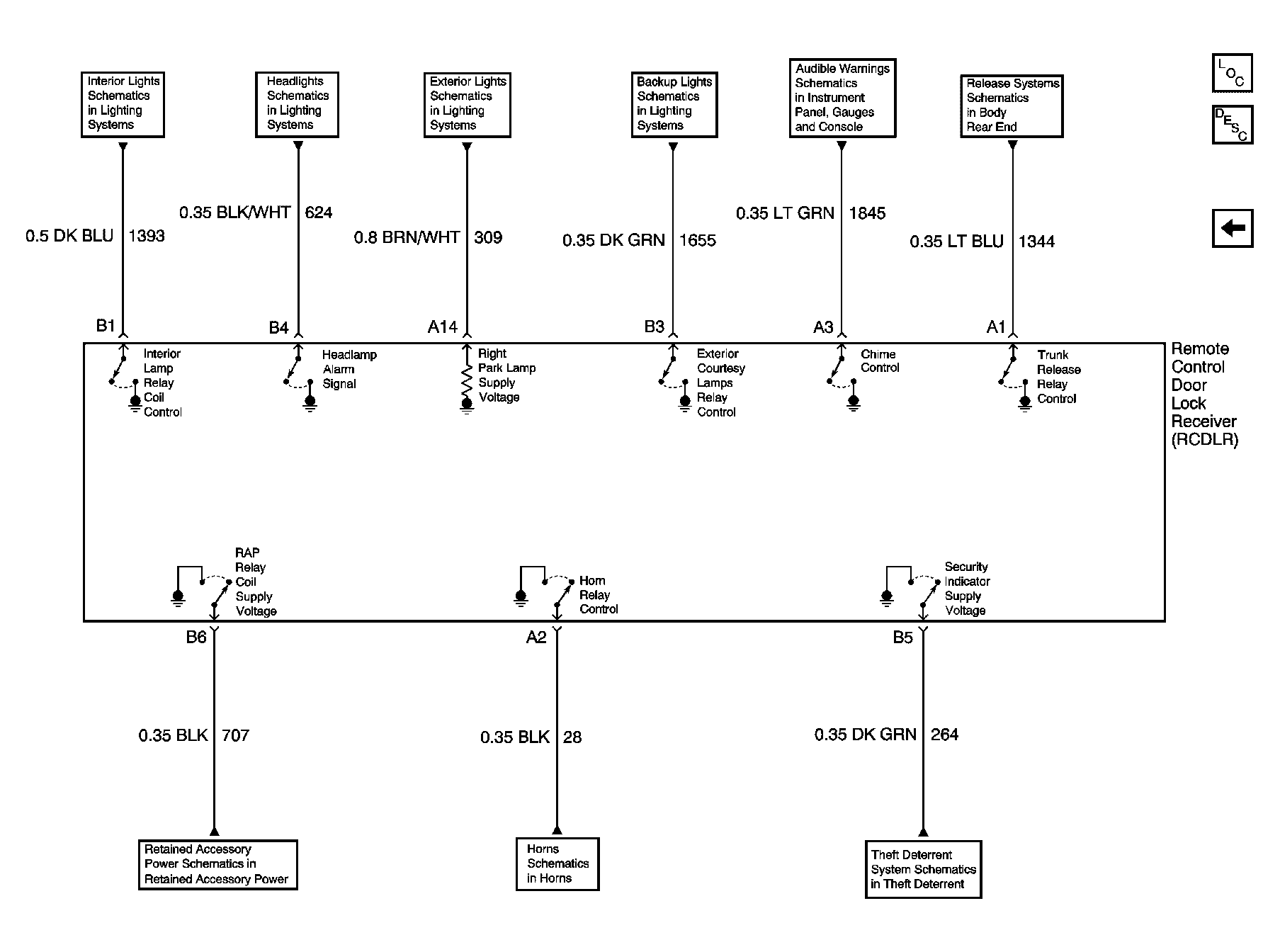

Fig 2: Remote Control Door Lock Receiver (RCDLR) Inputs & Outputs Schematic
Courtesy of GENERAL MOTORS CORP.
