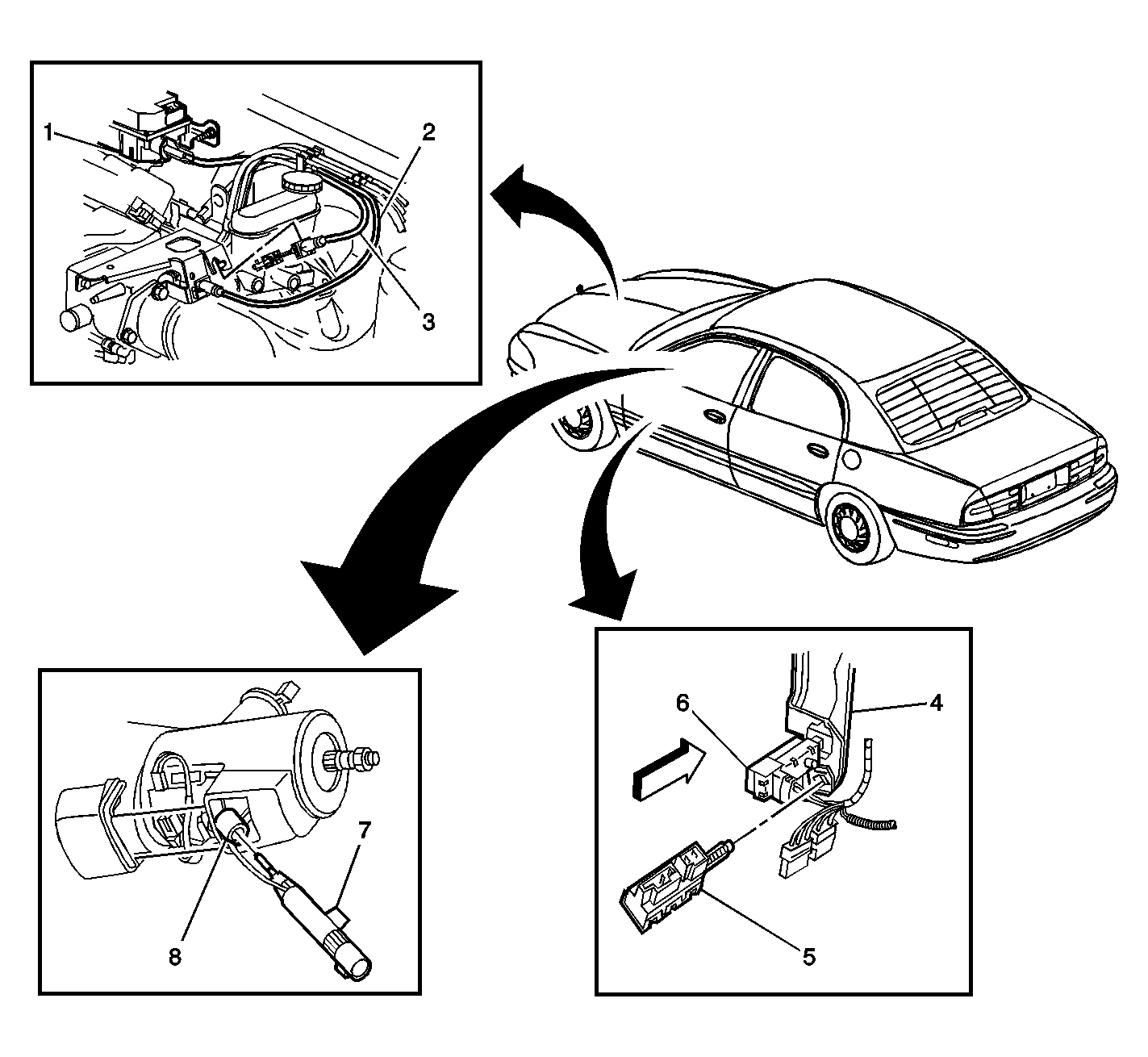

Cruise Control Component Views
Courtesy of GENERAL MOTORS CORP. Identifying Callouts For Fig. 3
| Callout |
Component Name |
| 1 |
Cruise Control Module |
| 2 |
Throttle Cable |
| 3 |
Cruise Control Cable |
| 4 |
Brake Pedal Support Bracket |
| 5 |
Stop Lamp Switch |
| 6 |
TCC/Cruise Release Switch |
| 7 |
Multifunction Lever |
| 8 |
Turn Signal/Multifunction Switch |
