Installation Procedure

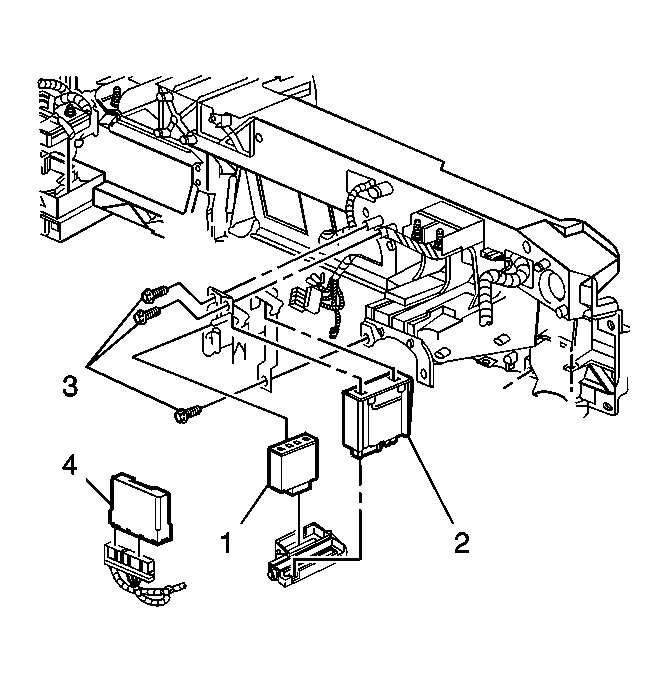

    Fig 1: Disconnecting/Reconnecting Electrical Connectors From Lamp Control Module
    GM645110Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors from the lamp control module (2).
  2. Install the lamp control module bracket (2) to the instrument panel.
    3. Fig 2: Removing/Installing Heater A/C Duct
    GM645392Courtesy of GENERAL MOTORS CORP.
  3. Reposition the heater A/C duct.
  4. Install the fasteners (2) securing the heater A/C duct.
  5. Install the lower IP trim panel. Refer to Instrument Panel (I/P) Assembly Replacement in Instrument Panel, Gages and Console.
