PCM 80-Way Blue Connector C1 Details

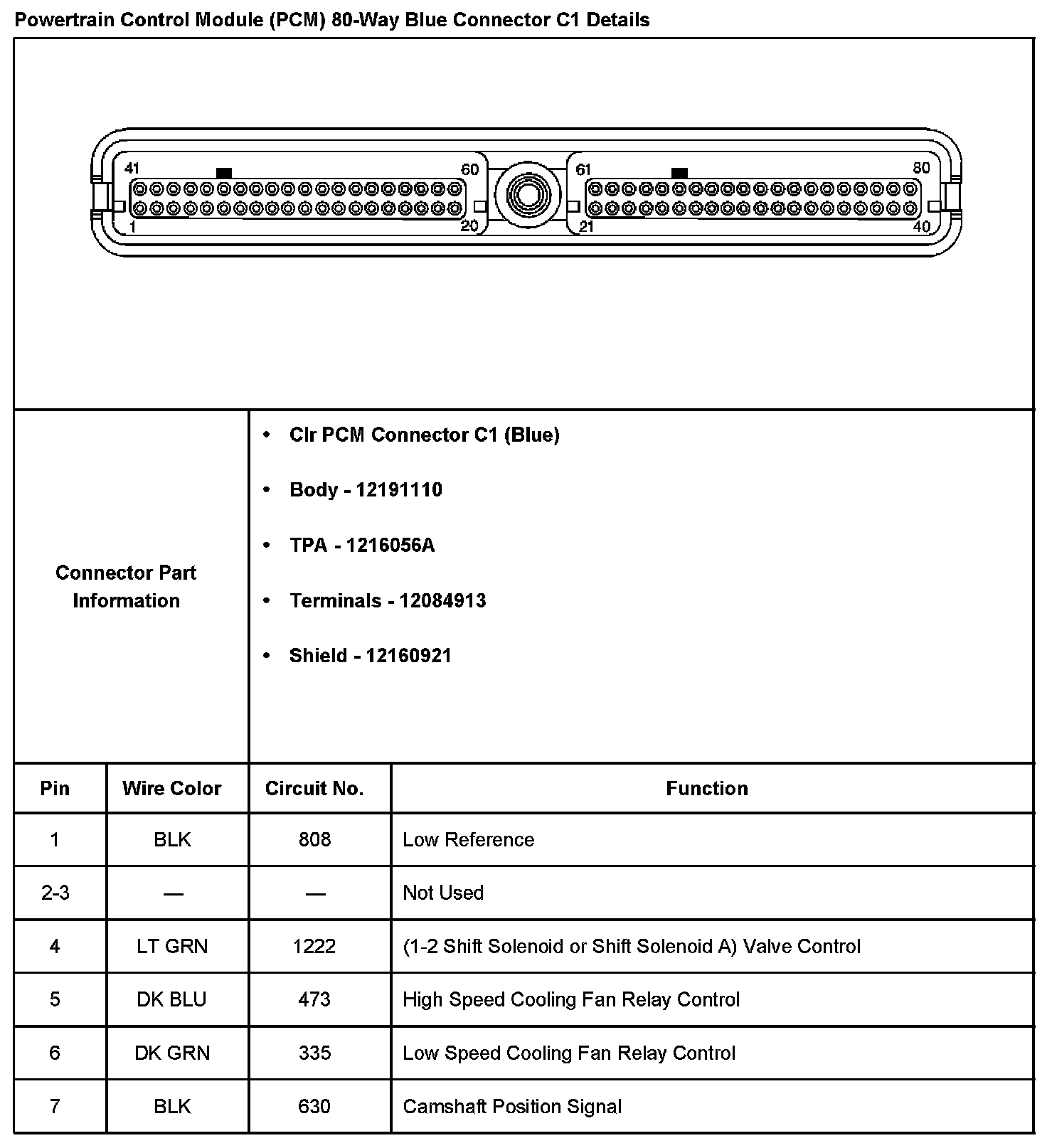

PCM 80-Way Blue Connector C1 Details Part 1:

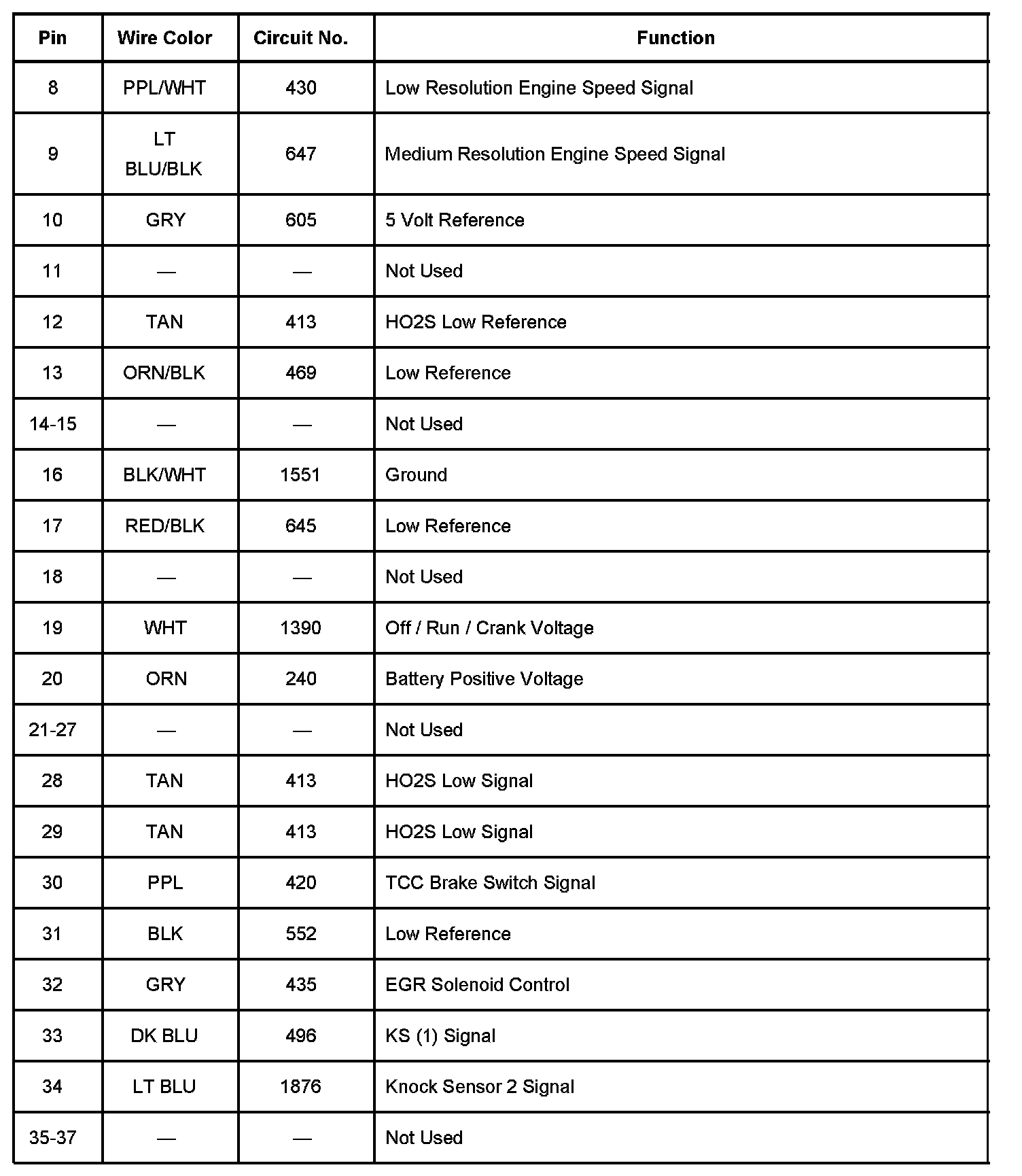

PCM 80-Way Blue Connector C1 Details Part 2:

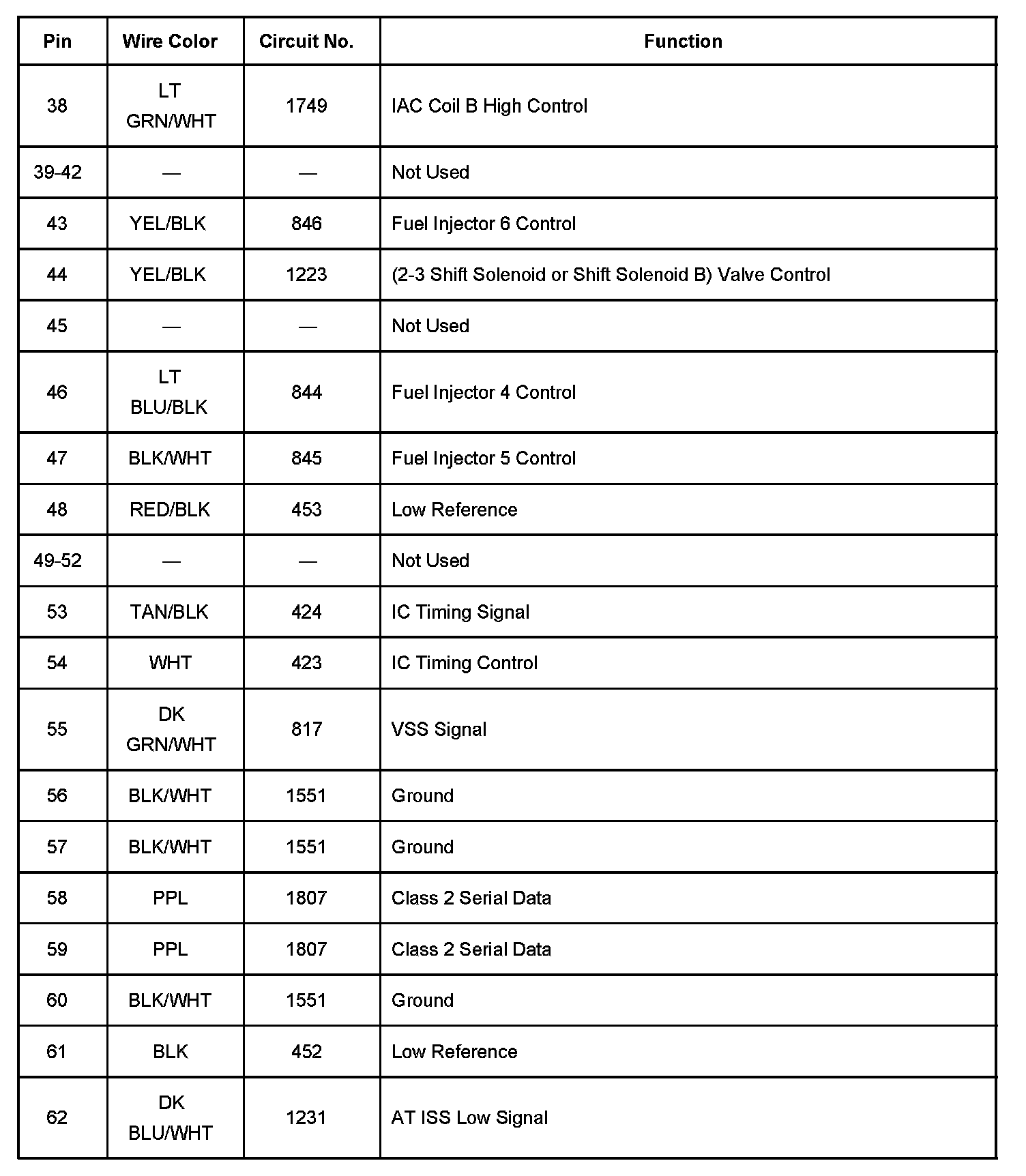

PCM 80-Way Blue Connector C1 Details Part 3:



PCM 80-Way Blue Connector C1 Details Part 4:
