Instrument Panel Integration Module (IPM)

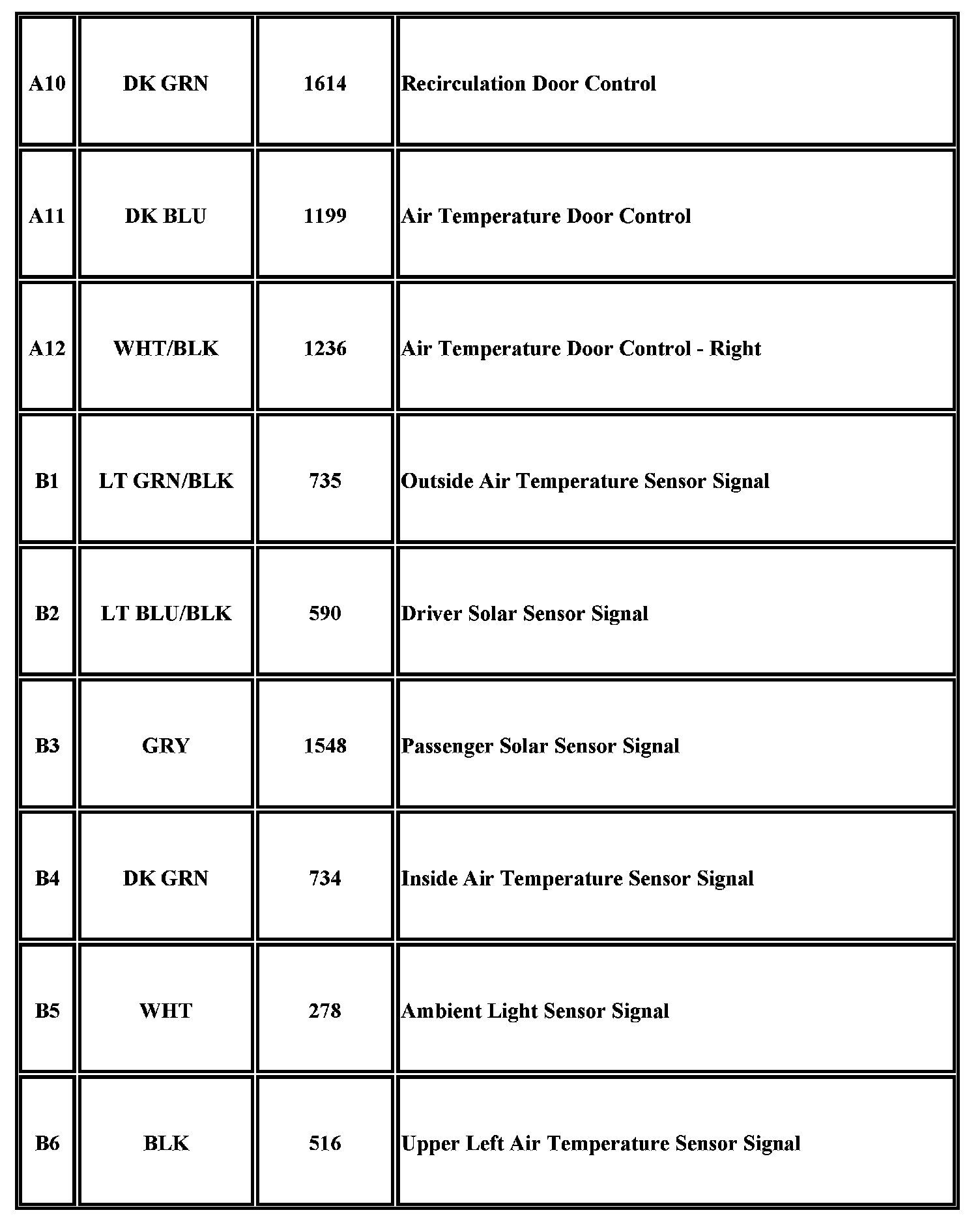

Instrument Panel Integration Module (IPM) C1






















Instrument Panel Integration Module (IPM) C2
